Induction heating equipment allows you to rest assured that with the peace of mind
- 500 Sheet / Sheets per Month
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
-
4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
-
automatic welding machine for stainless steel commerical sink panel and bowl
-
Stainless Steel Heavy and large Box Semi-Automatic Polishing Machine Gantry Polishing Machine
-
SPECIAL METAL WIRE WEAVING MACHINE
-
MODERN WIRE MESH WEAVING MACHINES FROM LANYING FOR BRASS WIRE MESH WEAVING
-
LANYING stainless steel woven wire mesh machines
Product Details
| Place of Origin: | Henan, China | Brand Name: | Yongda | Model Number: | WAP-90 |
Product Description

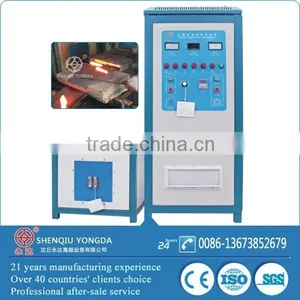

Energy conservation and environmental protection safety WZP - 90 super audio frequency induction heating equipment
Packing for induction hardening machine
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
Description
The merit of induction quenching machine
1. IGBT modules, save energy than traditional high frequency tube heater.
2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. No need contacting work pieces, safety, safe and reliable.
4. Environmental friendly,no pollution, good for worker's health
5. Easy to change induction coils, for heating different shape of steel billet
6. Easy to install and operate.
1.One year free replacement spare parts
2.Provide long-terms technical support
3.About installation: provide install technical skecth, install and operating instruction, or send engineer to helps if need.
4.About spare parts: beyong warranty period, you can buy spare parts from us with very low cost.
The main technical parameters
Model | WZP-90 |
Work power: | 3 phase 380V+/-10%, 50-60HZ |
Input voltage: | 320V-420V can be changed, depend on your country's electric power |
Input current: | 6-90A |
Oscillation frequency: | 15-30khz |
Cooling water pressure | 0.3 MPA |
Size of generator: | 665*400*730mm |
Size of transformer | 660*490*435mm |
Weight of generator | 47kgs |
Weight of transformer | 62kgs |
About us
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to Research & Development,production of high frequency induction heating machine, medium frequency induction heating equipment,supersonic frequency induction heating machine,induction forging machine, induction hardening machine, adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions. We have international trade office in zhengzhou. East to international airport (CGO), besides, high way, high speed rail,transport is very convenient.
Company products:
Medium frequency induction heating machine IGBT and KGPS SCR
High frequency (Super audio ) induction heating machine
Induction hardening machine, induction forging machine,induction brazing machine, induction annealing furnace,
Electromagnetic induction heating equipment,Induction melting furnace ;
CNC hardening machine tool,Automatic feeding steel rods machine,
Round bar,steel pipe induction hardening and tempering equipment
Concrete pump pipe dedicated quenching machine,Hydraulic cylinder cladding equipment;
Closed cooling tower,etc.
Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
Corporate Culture
Quality goal: Zero annual customer complaint rate
Quality policy: Scientific management, pursuing excellence, elaborate and perfect works.
Quality concept: Product quality and the future of Yongda are controlled by us.We will make every efforts let Yongda quality arrive perfection , based on strict and efficient attitude .
Service concept: Customer is in my heart. What users need, what Yongda provides.We will take real actions to solve problems for customers.
Good faith: The people who are honest will possess real friend. The enterprise that is in good faith will make long-term development.
Innovation: Innovation is the driving force for enterprise development. Without innovation there would be no rapid development for enterprises.
Sincerely welcome customers at home and abroad to visit us and negotiation business !
Address: NO.65,Liufu town economic and technical development,Shenqiu County, Zhoukou,Henan, China
The application

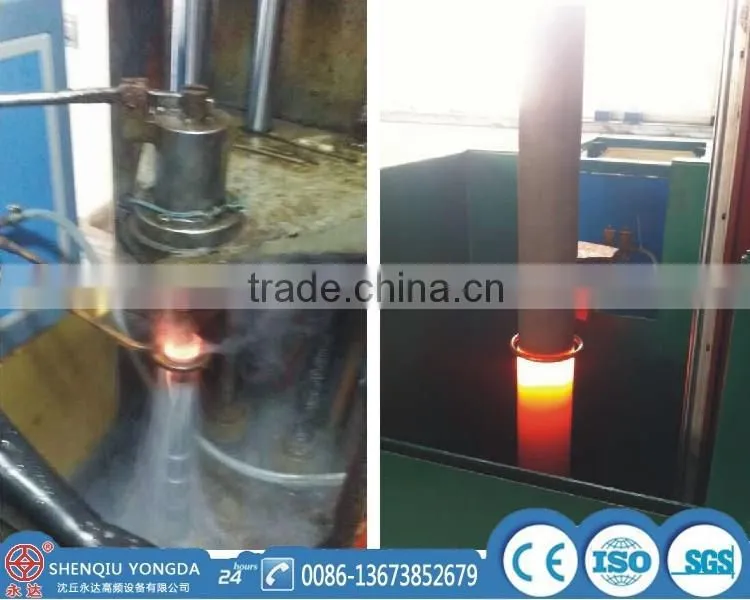

This model of WZP-90 Super audio frequency induction heating equipment is particularly suitable for heat treatment and quenching.
1, various hardware tools, hand tools. Such as pliers, wrench, hammer, ax, screwdriver, scissors (gardening scissors) and the quenching;
2, Various automotive, motorcycle accessories. Such as crankshaft, connecting rod, piston pin, wheel, aluminum wheels, valves, rocker shaft, drive axle, a small shaft, fork, etc. quenching;
3, various power tools. Such as gear, shaft;
4, the machine tool industry . Such as machine tool bed, Machine Tool, etc. quenching;
5, various hardware metal parts, machining parts. Such as shaft, gear (sprocket), cam, clamps, fixtures, etc. quenching;
6, the metal mold industries. Such as small mold, die attachment, die quenching the hole, etc.;

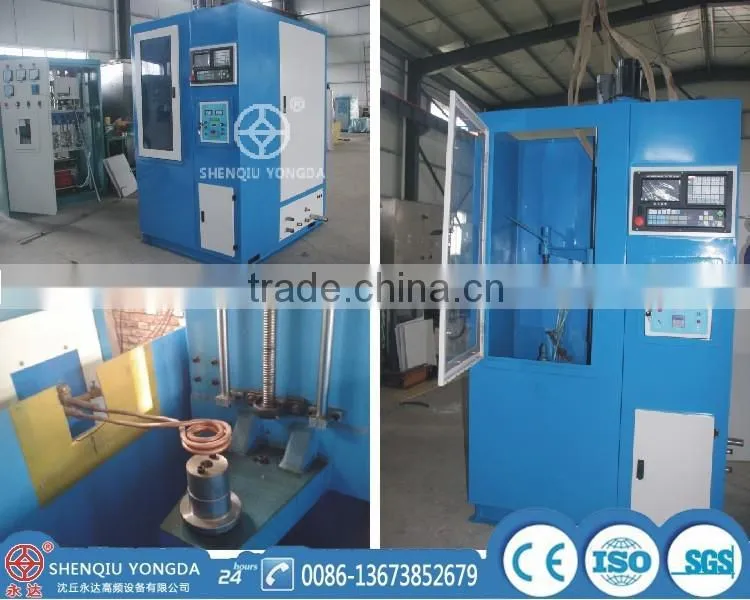

The cnc hardening machine
We take part in international exhibition
Contact: Alice Ann
Mobile :0086 183 3990 6750
Tel : 0086 371 5501 6296
