Specifications
Induction melting equipment1. save energy 30% igbt system
2. gold,silver,copper,nickel,zinc melt
3. melt fast

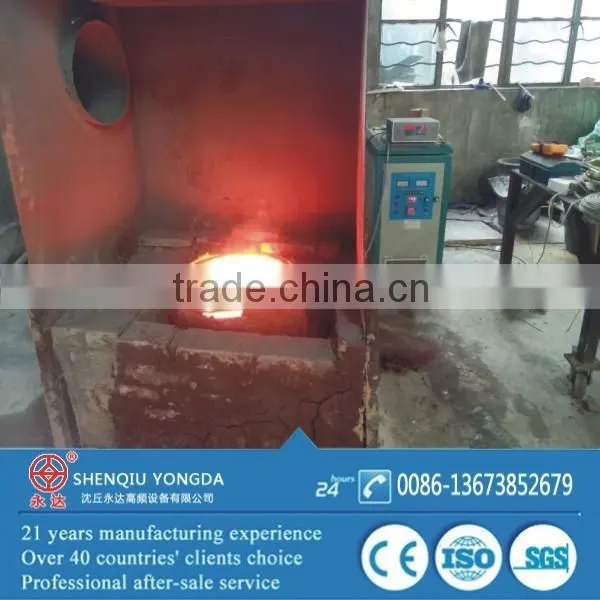

90KW Induction melting equipment for aluminium cast
Main applications of induction melting equipment
Induction melting equipment is used for melting steel, stainless steel,copper,aluminum ,gold and silver etc. other material.
Melting time
The maximum heating capacity of every melting furnace in the below table, for cold furnace, each furnace melting time is 50-60 minutes, for hot furnace, every furnace melting time is 20-30 minutes.
Technical specifications of induction melting equipment
Model |
Steel and stainless steel |
Gold, silver, copper |
Aluminum |
WZP-15 |
----- |
10kg |
3kg |
WZP-25 |
5kg |
20kg |
6kg |
WZP-35 |
10kg |
30kg |
10kg |
WZP-45 |
18kg |
50kg |
20kg |
WZP-70 |
25kg |
100kg |
30kg |
WZP-90 |
40kg |
120kg |
40kg |
WZP-110 |
50kg |
150kg |
50kg |
WZP-160 |
100kg |
250kg |
100kg |
WZP-300 |
200kg |
500kg |
200kg |
Different types of induction melting machine
Features of induction melting equipment
1. Induction melting machine has good electromagnetic stirring ,melting metal in favor of a uniform temperature and organizations ,in favor of scum and reduce inpurities.
2. Wide frequency range,from 1KHZ to 20KHZ,be considering the amount of melting,electromagnetic stirring,heating efficiency,noise at work and other factors to design induction coils and equipped with compensation capacitor ,determine the output frequency
3. Save at least above 20% energy than SCR medium frequency device.
4. Machines has small size,light weight,melting capacity is from a few kilograms to hundreds of kilograms,a large range to choose,both for factory use, can also used for schools and institutes, a small amount of melting.
Small amount capacity induction melting equipment
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
Yongda superaudio frequency induction melting equipment, medium frequency induction melting equipment has high quality,low price. Welcome to inquiry or chat online ,make a phonecall to discuss business !
