Help CenterWZP-120 the 3rd Generation of Gear and Shaft Heat Treatment Furnace
Related Products
-
Crankshaft High Quality Induction Heat TreatingUS$ 1,500 - 9,800MOQ: 1 Set -
China Popular Bearing Induction Heating MachineUS$ 2,500 - 9,800MOQ: 1 Set
-
Egypt Best Selling hf Induction Heating Machine for Spline Shaft HardeningUS$ 898 - 4,800MOQ: 1 Set
-
Enery Saving Industrial Metal Heat Treating Induction Heating PowerUS$ 869 - 4,800MOQ: 1 Set
-
IGBT High Frequency Induction Heating for AutoUS$ 890 - 9,800MOQ: 1 Set
Specifications
heat treatment furnace1. igbt, solid sate
2. water cooling
3. eco-friendly
4. durable, safe
WZP-120 the 3rd generation of gear and shaft heat treatment furnace
Advantages of heat treatment furnace
1.High efficient: energy saving,environmental protection
2.Heating fast:The fastest heating speed is less than 1 second
3.Heating wide: can heating variety of metal workpieces(according to different shapes of work pieces, replace removable induction coils)
4.Easy installation :the machine can be used,as soon as connected the power supply, induction coils, water inlet and outlet.
Small size, light weight ,easy to use
5. Simple operation , several minutes to learn.
6. Start fast, pass water and electric power can start heating
7.Low power consumption:can save about 40% energy than tradional HF tube furnace , save degree is relation with shpes of work pieces and induction coils.
8.Good effect: Heating very uniform (by adjusting the density of induction coils, makes every parts of work piece obtain the respective needs of temperature), warming up fast, less oxidation layer, surface got good gloss after heating .
9.Full protection: has over voltage,over current,temperature is over high,lack of water, lack of phase,etc, alarm lamps indicators. can automaticly control and protection the machine itself.
10.Temperature is adjustable, by setting heating time and the infrared thermometer, to control heating temperature of work pieces.Thus control heating temperature to a technology points , Can also increase the insulation function.
11.High security, eliminating the nearly million-Volt high voltage
Technical datas of heat treamtent furnace WZP-120
| Model | WZP-120 |
| Work power | 3 phase 380V+/-10%, 50-60HZ |
| Input voltage | 320V-420V can be changed, depend on your country's electric power |
| Input current | 6-120A |
| Input power | 3-65KW adjustable stepless |
| Oscillation frequency | 15-30KHZ also can be changed, depend on your work pieces size |
| Size of generator | 665*400*730mm |
| Size of transformer | 660*490*435mm |
| Weight of generator | 48kgs |
| Weight of transformer | 66kgs |
| Cooling water pressure | 0.3 MPA |
Heat treatment furnace
Heat Treatment process
Annealing → the workpiece is heated to a suitable temperature,with different incubation times,depending on the material and size of the workpiece , and then slow cooling (the cooling speed is the slowest),so as to make the internal organization of the metal achieve equal or at the equilibrium state, to obtain a good process properties and performance, or prepare for further hardening.
Normalizing → the workpiece is heated to a suitable temperature in the air cooled. The effect of normalizing is similar to annealing , but the former process more finely tissue obtained, generally used to improve the cutting performance of the work piece. Sometimes normalizing also can be used for a number of workpiece demanding not high as a final heat treatment.
Hardening → Heating work piece to a certain temperature.Cooling rapidly at water, oil, or other inorganic salts, organic aqueous solution etc. quenching medium. After quenching,steel work piece getting hard , but also brittle.
Tempering → In order to reduce the brittleness of the steel, make the hardened heat preservation, a suitable temperature, higher than room temperature and lower than 710 ℃ , and then cooling.This process is called tempering.
Annealing, normalizing, hardening and tempering is the overall heat treatment of the "four fire", which is closely related to the quenching and tempering, often used in conjunction, are indispensable.
"Four fire" with different heating temperatures and cooling methods,it turns out different heat treatment processes. In order to obtain a certain degree of strength and toughness, sometimes combine quenching and tempering process,called quenched and tempered.
Applications range of heat treatment furnace
Standard parts heat treatment
all kinds of hardware tools, hand tools. Such as pliers, wrenches, hammers, axes, screwdrivers,
scissors (gardening shears) and so the heat treatment
Auto Parts heat treatment
various auto, motorcycle parts. Such as the crankshaft, connecting rod, piston pins, sprockets, aluminum wheels, valves, rocker shaft, drive axle, a small shaft, fork, etc. heat treatment
Machine tool bed surface heat treatment
the machine tool industry category. Such as surface quenching,the machine tool bed, Machine Tool, etc. heat treatment
Hardware metal parts heat treatment
various hardware metal parts, machining parts. Such as axle and gear (sprocket), cam, chuck, fixture, etc. heat treatment ;
Metal mold industries heat treatment
the metal mold industries. Such as small die, die attachment,, inner hole heat treatment , etc.

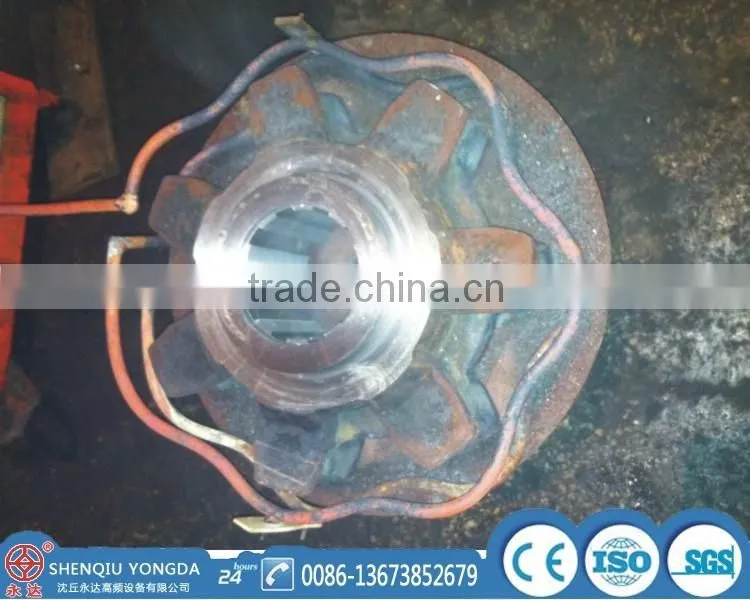

Mining gears heat treatment

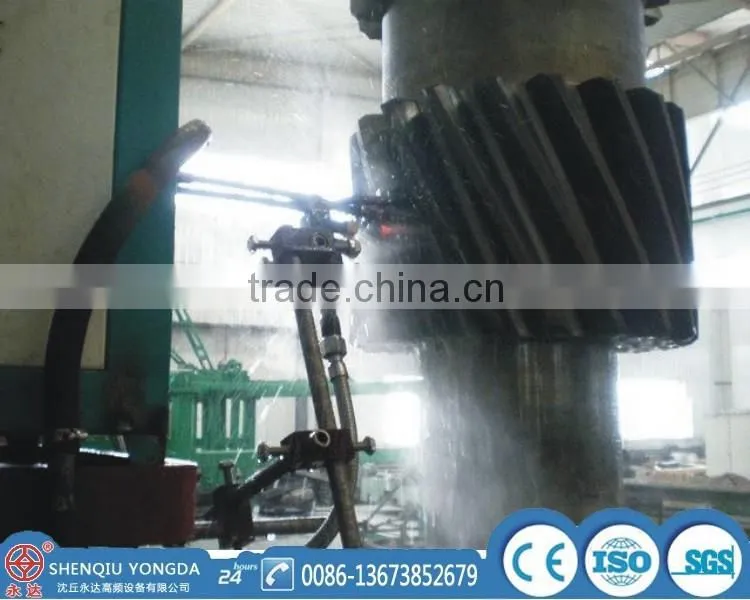

Big gear single teeth heat treatment

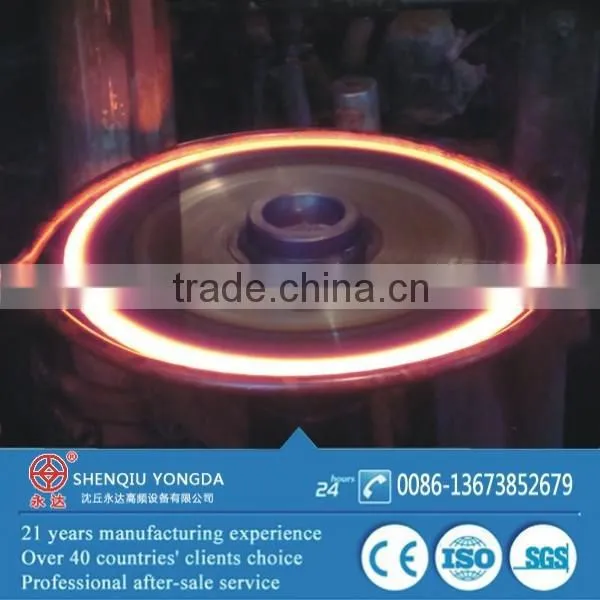

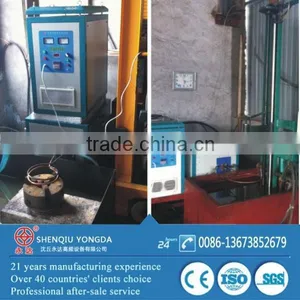

Shaft heat treatment

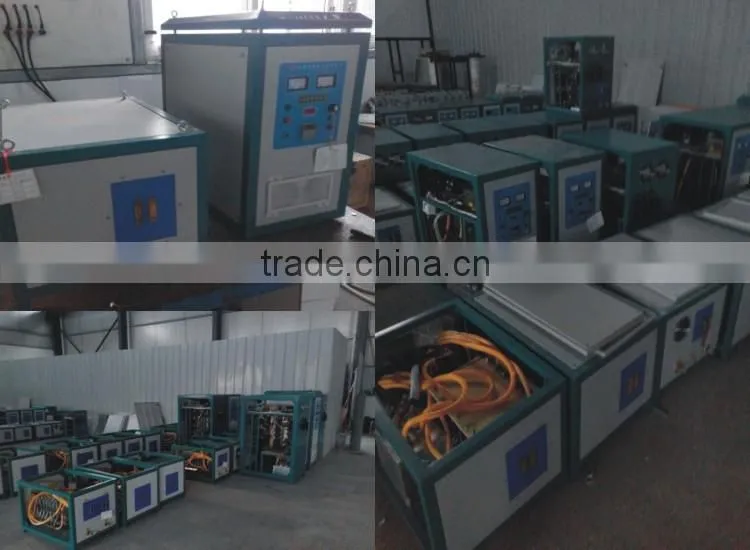

Our machine workshop: only good induction heater will be sent to our customer
Warranty: one year free replacement spare parts.
Excess warranty period, you also can buy the spare parts with discount price.
After-sale servcie: Provide long-terms technical support.
Packing for heat treatment furnace
1.Wooden cases (plywood) or carton,as you required.
2. Inside,will be filled with plastic foam,for waterproof and shockproof.
3.Accessories: induction coils,foot switch and installing and operating instructions
4. Packing size: generator 830*500*880 transformer 830*600*550mm
Shipping: by sea LCL(less than container load) or by air.
Our factory scene
Shenqiu Yongda High Frequency Equipment Co.,Ltd was establish in 1996 .
Our product are hot sell in domestic market, also becomming more and more popular in all over the world. Welcome oversea customers to visit us or order machine online.
We are in induction heating industry exhibition
Industrial metal heat treatment furnace, please thinking Shenqiu Yongda HF Equipment Co.,ltd
Thanks for your reading ! Welcome to contact us !
