Vietnam popular guide rail HF induction quenching machine

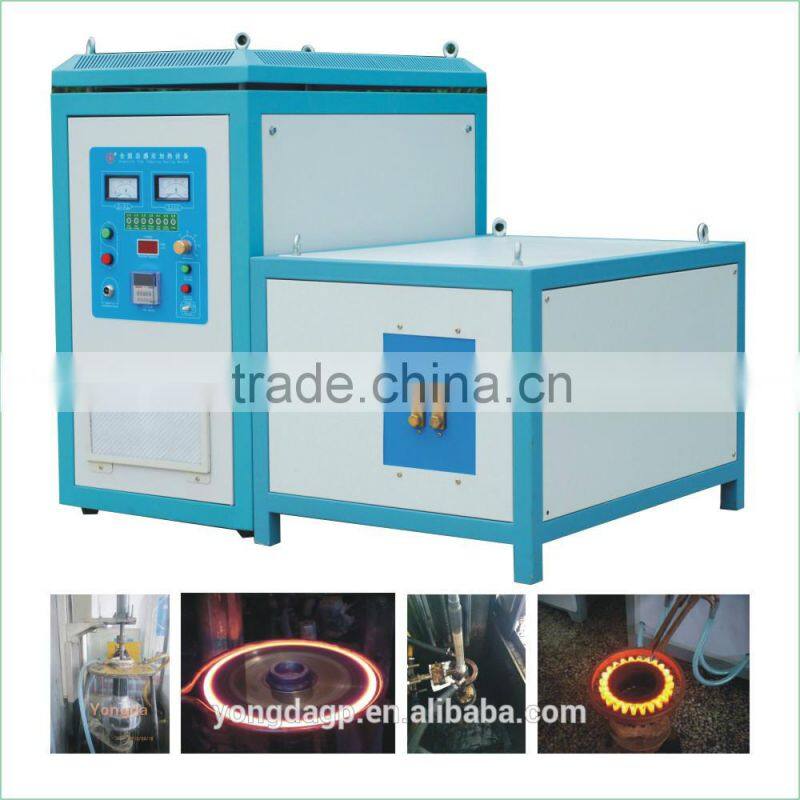

Main technial parameters of WZP-160 induction quenching machine
1.Work power: 3 phase 380V+/-10%, 50-60HZ
2. Input voltage: 320V-420V can be changed, depend on your country's electric power
3. Input current: 6-160A
4. Input power: 85-90KW(power adjusted stepless, from 3 KW-90 KW)
5. Oscillation frequency: 10-35 KHZ(customzied,frquency auto tracking)
6. Cooling water pressure: 0.3 MPA
7.Water temperature protection point: 50 degree celsius.
8. Size of geneartor: 850*600*1330 ;transformer:780*540*520mm
9 .Weight: generator 147kgs transformer 108kgs
Technial parameters of Yongda WZP Series high frequency induction quenching machine
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
Advantages of WZP Series high frequency induction quenching machine
1, high frequency transistors my company adopted than high frequency power saving up to 40-60%, saving 60%, external support facilities to reduce investment by 75%.
2, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
3, small size, light weight, easy to move, no million-volt high-voltage danger, safe operation.
4, high reliability, easy to maintain and improve the over voltage, over current, overheating, lack of, water and other self-protection.
5, the use of large scale integrated circuit digital automatic control, with manual, automatic, semi-automatic and fixed time control.
6, automatic frequency tracking, stepless power adjustment, easy to use, 10 minutes to learn.
Control panel of WZP-160 Induction quenching machine

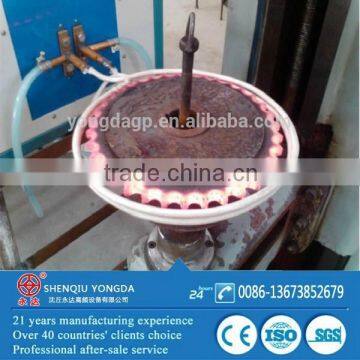

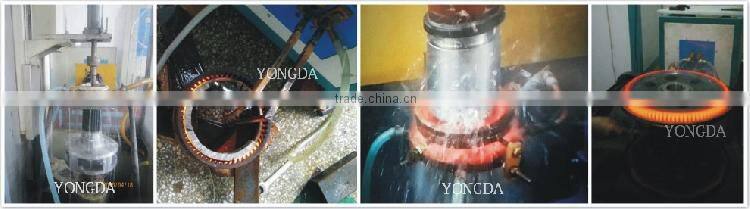

Applications of induction quenching machine
1 Quenching various hardware tools, hand tools. Such as pliers, wrenches, screwdrivers, hammers, axes and so on.
2 Quenching for kinds of auto parts, motorcycle accessories. Such as: crankshaft, connecting rod, piston pin, crank pin, wheel, camshaft, valves, all kinds of rocker arm, rocker shaft; transmission of various gears, spline shafts, drive axle, a variety of small axes, a variety of fork and other high-frequency quenching.
3 Qunching for power tools on the gears, shafts.
4 a variety of hydraulic components, pneumatic components of high frequency quenching,heat treatment. Such as the piston plunger, rotor pump rotor on a variety of valves for the shaft, the gear pump gear, etc. quenching.

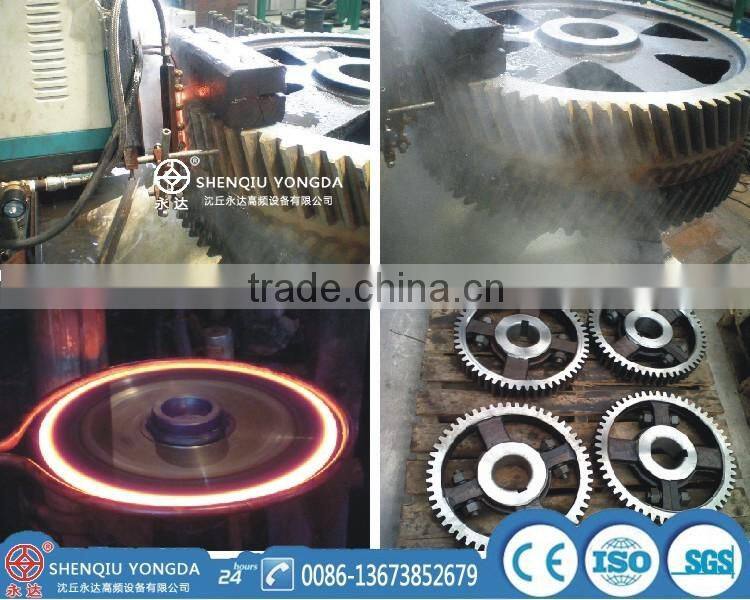

5 Induction quenching of metal parts. Such as the various gears, sprockets, all kinds of shafts, spline shafts, pins and other high-frequency quenching.
6 Machine tool industry guide, tools swallowtail quenching treatment.
Our workshop: machine debugging
Packing high frequency induction quenching machine:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
