Home > Products > Induction Generator > New type IGBT heating round steel rods induction hot forging machine
New type IGBT heating round steel rods induction hot forging machine
- 500 Set / Sets per Month
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Henan, China | Brand Name: | Yongda | Model Number: | WZP-160 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
hot forging machine1. advanced igbt technology
2. heating fast
3. high efficiency
4. work stable , saftey
New type IGBT heating round steel rods induction hot forging machine
Advantages of induction hot forging machine
1.High efficient: energy saving,environmental protection
2.Heating fast:The fastest heating speed is less than 1 second
3.Heating wide: can heating variety of metal workpieces(according to different shapes of work pieces, replace removable induction coils)
4.Easy installation :the machine can be used,as soon as connected the power supply, induction coils, water inlet and outlet.
Small size, light weight ,easy to use
5. Simple operation , several minutes to learn.
6. Start fast, pass water and electric power can start heating
7.Low power consumption:can save about 40% energy than tradional HF tube furnace , save degree is relation with shpes of work pieces and induction coils.
8.Good effect: Heating very uniform (by adjusting the density of induction coils, makes every parts of work piece obtain the respective needs of temperature), warming up fast, less oxidation layer, surface got good gloss after heating .
9.Full protection: has over voltage,over current,temperature is over high,lack of water, lack of phase,etc, alarm lamps indicators. can automaticly control and protection the machine itself.
10.Temperature is adjustable, by setting heating time and the infrared thermometer, to control heating temperature of work pieces.Thus control heating temperature to a technology points , Can also increase the insulation function.
11.High security, eliminating the nearly million-Volt high voltage
WZP-120 induction hot forging machine
Our workshop for debugging induction hot forging machine, induction heating equipment:
only good machine will be sent to our customers
Technial parameters of hot forging machine from 40 KW to 500 KW
Model | Input voltage | Input current | Oscillation frequency | Cooling water pressure |
WZP-40 | 320-420V | 2-40A | 15-30KHZ | 0.1MPA |
WZP-60 | 320-420V | 3-60A | 15-30KHZ | 0.2MPA |
WZP-90 | 320-420V | 4-90A | 15-30KHZ | 0.3MPA |
WZP-120 | 320-420V | 6-120A | 15-30KHZ | 0.3MPA |
WZP-160 | 320-420V | 6-160A | 15-30KHZ | 0.3MPA |
WZP-200 | 320-420V | 6-200A | 15-30KHZ | 0.3MPA |
WZP-300 | 320-420V | 6-300A | 15-30KHZ | 0.3MPA |
WZP-400 | 320-420V | 6-400A | 8-15KHZ | 0.3MPA |
WZP-500 | 320-420V | 6-500A | 8-15KHZ | 0.3MPA |
Application: Hot forging, rolling, forming ,bending
1 The variety of hot-rolled twist drill.
2 standard parts, hot forging fasteners, such as high strength bolts, nuts and so on.
3 drill steel, tempering brazing, forging, extrusion heating.
Small steel strip hot forging for making railway elastic strip

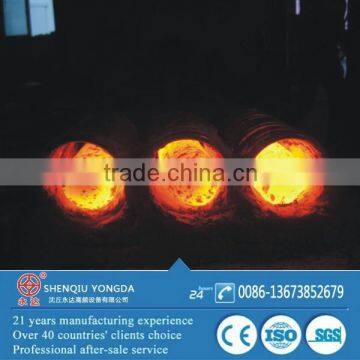

Round steel rods induciton hot forging
Product quality certification: ISO9001:2000
1. Experieced engineer recommend the best solutions, according to your work pieces specifications, heating requirements
2. Machine details and working video link for your reference
3. Competitive price ,compare with the same industry
4. Production machine and Induction coils perfect production
5. Debugging and sending goods machine
6.Tracking goods shipping and provide shipping documents and other doc what you need
7. Provide install and technology instruction by sending drawings, email, or telephone,video
Packing hot forging machine:
1.Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils,foot switch and installing and operating instructions
3.Shipping: by sea LCL(less than container load) or by air.
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,hot forging machine,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
Company's honor:
Induction hot forging rods, bolts,nuts, steel billets, let us help you !
Sincerely provide service for you !
Thanks for your reading ! Welcome to contact us !
