Long service life stainless steel induction forging equipment
Main technial parameters of WZP-160 stainless steel induction forging equipment
| Model | WZP-160 |
| Work power: | 3 phase 380V+/-10%, 50-60HZ |
| Input voltage: | 320-420V |
| Input current: | 6-160A |
| Oscillation frequency: | 15-30khz |
| Cooling water pressure | 0.3 MPA |
| Size of geneartor: | 740*403*895 |
| Size of transformer | 735*490*465mm |
| Weight of generator | 55kgs |
| Weight of transformer | 74kgs |

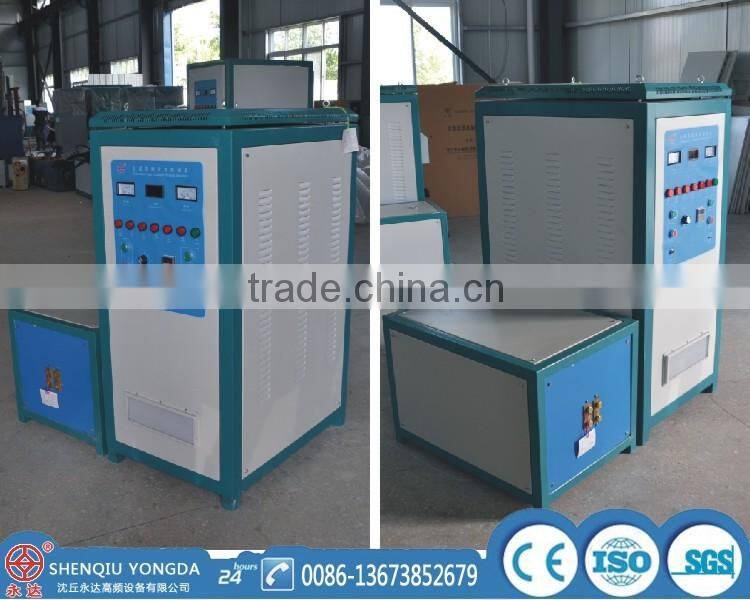

Photo of Yongda brand induction forging equipment

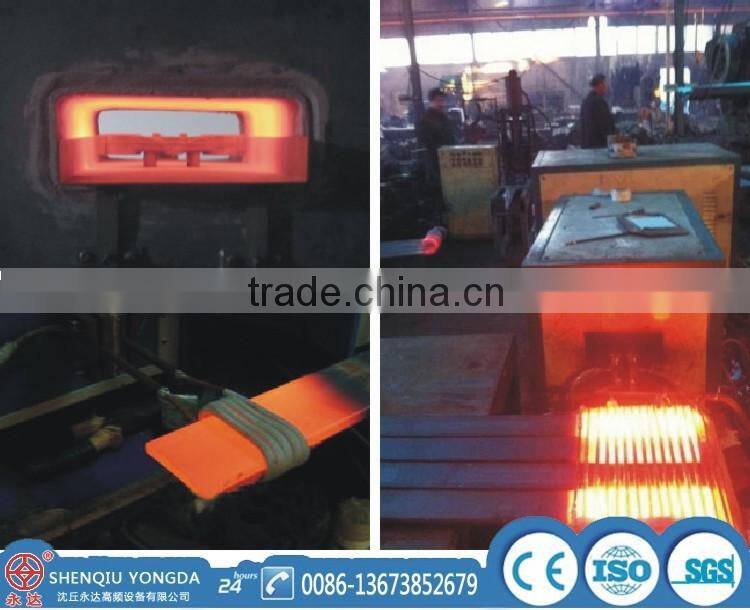

Applications of induction forging equipment
Induction forging
(1) Round steel categories:A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. stainless steel tableware, stainless steel bolts and nuts
C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
(2) hot forging sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories:
Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.
Model |
Capacity |
WZP-60 |
1.5kgs/min |
WZP-90 |
2.5 kgs/min |
WZP-120 |
3 kgs/min |
WZP-160 |
4.5 kgs/min |
WZP-200 |
6 kgs/min |
WZP-300 |
8 kgs/min |
WZP-400 |
10 kgs/min |
WZP-500 |
12 kgs/min |
Note: heating temperature 1100-1200 degree celsius.

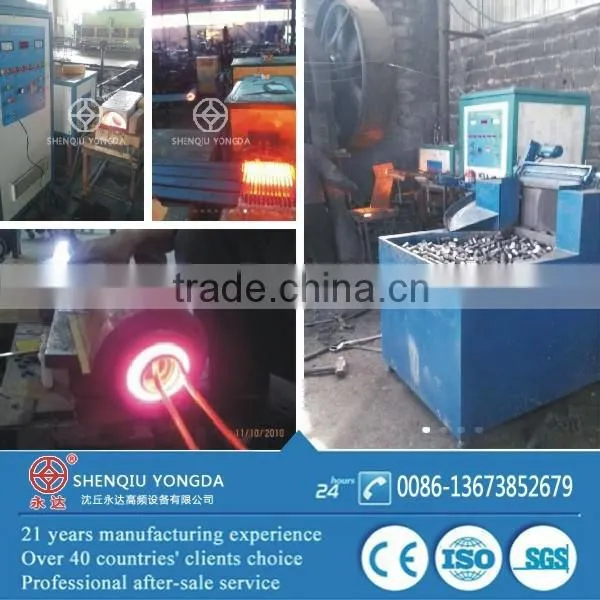

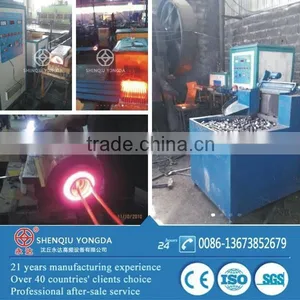

More applications
Domestic induction heating industry exhibition
Packing for induction forging installation
1.Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support.
