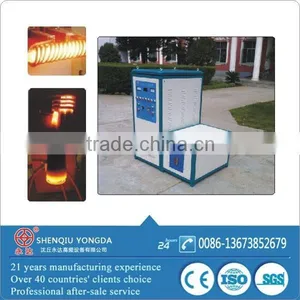

120KW super audio induction cooper forging machine
Features of cooper forging machine
1.Save electronic: can save 30% electric than election tubes.can save 20% electric than KGPS.
stable: safe protection, safe operation
3.Heating speed fast: no oxidation layer, small deformation
4.Small size: Light weight, easy installation
5.Environmental protection: no pollution, no noise and dust
6.Wide heating parts range: you just need change different coil ,will can forge different parts
7.this small forging machine can forge different parts at 1200C in several seconds,
8.can forge different material workpiece,eg;copper/aluminum/tai
9.this small forging machine design for small capacity jobs 24 hours work continuously.
Technical parameters of WZP-200 cooper forging machine
Model |
WZP-200 |
Work power |
3 phase 380V+/-10%, 50-60HZ |
Input voltage |
320V-420V can be changed, depend on your country's electric power |
Input current |
6-200A |
Input power |
6-120KW(power adjusted stepless) |
Oscillation frequency |
15-30 KHZ or 2-10KHZ (customized) |
Cooling water pressure |
0.3 MPA |
|
Size of geneartor: Transformer |
850*600*1330mm 780*540*520mm |
Weight of generator ; transformer |
131kgs; 89kgs |
Water cooling protection point |
Below 50 degree celsius |

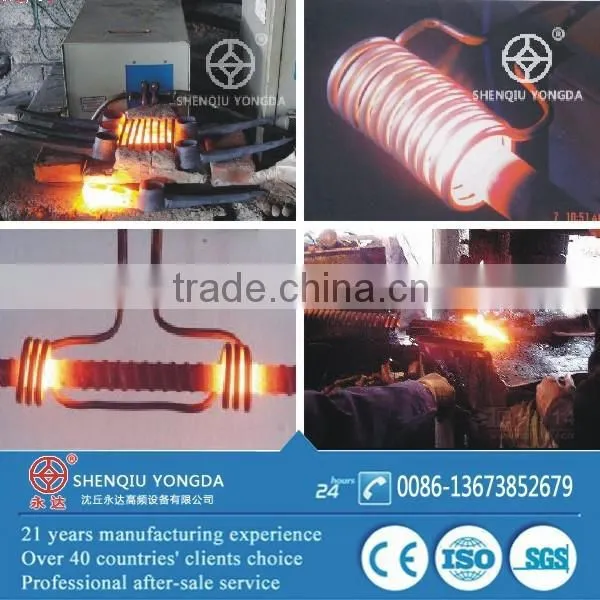

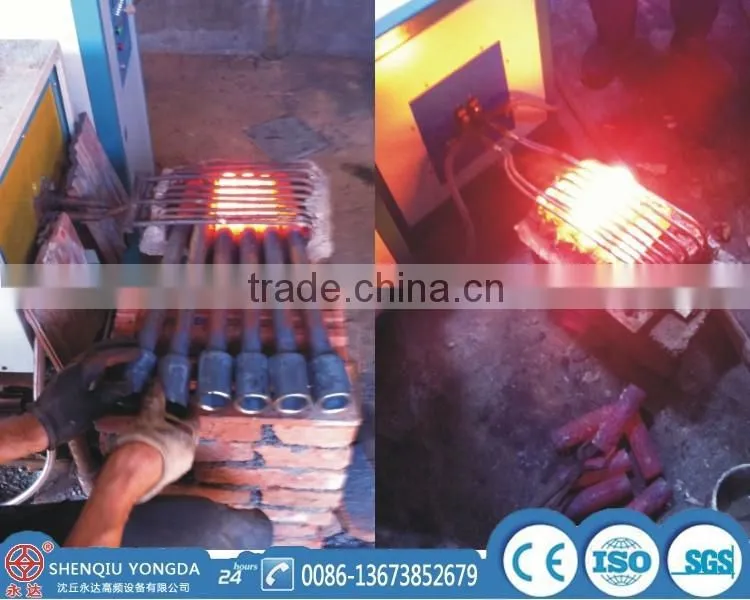

Applications of cooper forging machine
1. Metal Hot Forming, Hot Forging, Hot Upsetting, Hot Pressing.
Standard components hot forging, bolts & nuts hot forging, fasteners hot forming, automobile and motorcycle parts hot pressing, metallic tools hot forming.
2. Heat Penetration
Bar materials hot forging, round steels forge heating, square steels hot forging, copper bar hot punching,
3. Metals Continues Hot Forging
Hot forging of embryo gear parts, Gears hot forging, axle shaft hot forging, connecting rod continues hot forging, Bearings precision forging
4. Heat distortion
Pipes Heat distortion, pipe bending, stainless pipe Heat distortion, copper rod Heat distortion, steel billets heat distortion, steel pipe heat bending
5. Hot Rolling Heating
Steel rod hot rolling, steel billet hot rolling, copper rod hot rolling, square steels hot rolling, bar hot rolling, hot coating
6. Other forge heating applications, Such as hot extrusion, hot squeezing, partial heating, heating before hot cutting, hot fitting, thermal refining
7. Suitable for workpiece with various shape and different diameter
8. Customized forging production solution
My company are in induction heating industrial exhibitions
Packing for cooper forging machine
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
What’s your MOQ? |
Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? |
We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai |
Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing |
Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? |
Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? |
Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? |
Updating… |
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
Company products:
Medium frequency induction heating machine IGBT and KGPS SCR
High frequency (Super audio ) induction heating machine
Induction hardening machine, induction forging machine,induction brazing machine, induction annealing furnace,
Electromagnetic induction heating equipment,Induction melting furnace ;
CNC hardening machine tool,Automatic feeding steel rods machine,
Round bar,steel pipe induction hardening and tempering equipment
Concrete pump pipe dedicated quenching machine,Hydraulic cylinder cladding equipment;
Closed cooling tower,etc.
