high frequency transformer induction heating
The advantages
| 1. Adopting IGBT module |
| 2. Configurable induction coils |
| 3. A wide range of applications |
| 4.Simple installation and easy operation |
| 5. Small size, energy saving, rapid heating, 1000°C in seconds |
| 6. Able to continuously work for 24h, 100% work load rate |
| 7.Energy saving, Environmental protection, Low pollution level |
| 8.Perfect and complete protection functions, increasing machine's reliability |
| 9.Customized services, which made machines as per customer's requirement. |
| 10. Easy installation, Economic Space Occupation, Miniature and light weight |
The induction coil
The main technicai parameters
Model | WZP-300 |
Work Power | Three phase 380v/50hz |
Oscillation Frequency | 15-30Khz |
Cooling Water Flow (host) | 25L/Min |
Voltage Range | 320-420v |
Cooling Water Pressure | 0.1-0.3MPa |
Max. Input Current | 300A |
Water Temperature Protection | 50°C |
Max. Output Power | 160kw |
The application

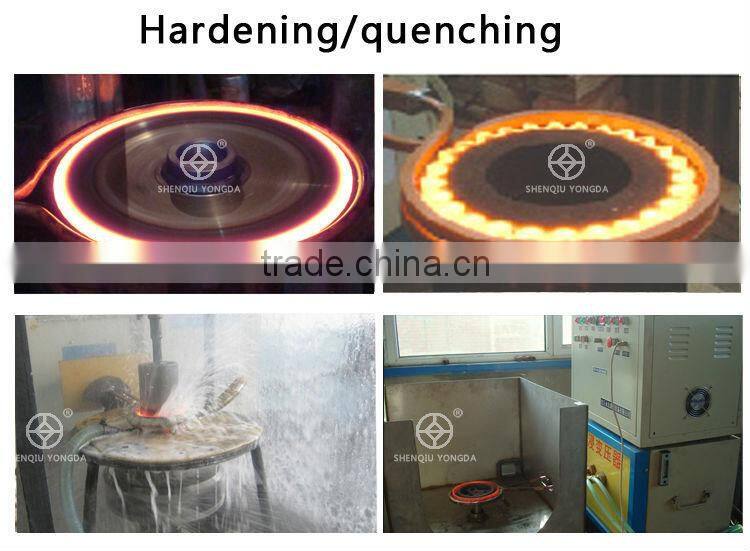

This model of WZP-300 Super audio frequency induction heating equipment is particularly suitable for heat treatment and quenching, melting, annealing, the metal through the heat forging, extrusion, welding, brazing.
First, the heat treatment industry
1, a variety of steam, Motorcycle high-frequency hardening heat treatment, such as: crankshaft, connecting rod, piston pin, camshaft, valves, various gears within the gearbox, a variety of fork, all kinds of spline shaft, drive axle, various small shaft crank pin, a variety of rocker, rocker shaft, high-frequency hardening heat treatment.
2, the hardware high-frequency hardening heat treatment, such as pliers, hammers, strong pliers, wrenches.
3, hydraulic components such as: piston pump plunger, rotor pump rotor, conversion shaft of the valves, gear of gear pump high frequency quenching.
4, various electric tools gear shaft of the high-frequency hardening heat treatment.
5, a variety of carpentry tools, such as: axes, planing and other heat treatment.
Second, the forging industry
1, plate heating, bending and forming.
2, standard parts, fasteners through the hot forming.
3, the hardware tools through heat, such as pliers, wrenches and other heat through hot forming.
4, taper shank drill rod extrusion prospecting.
5, the pipe through the hot forming, such as bends and so on.
Third, brazing:
1, carbide cutting tools welding. Such as turning, milling, cutter knife.
2, the diamond saw blade welding. Such as diamond saw blade, abrasive, jagged welding. Exploration drill bit used in welding, such as word drill, drill welding horns.
3, brass, copper
PackingTwo wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
The International Industrial Machinery Exhibition
2. Experienced engineer instruct and sales communicate with you .
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
henqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,induction heater machine,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions
