High frequency induction copper/brass tube welding machine
Advantages of copper/brass tube welding machine
1.Energy saving, Environmental protection and Low pollution level
2.Easy operation, can be equipped with PLC controller
3.Miniature and light weight, Economic Space Occupation and Easy installation
4.Strict Supplier Management System and ISO9001 Quality Management System guarantee high quality of each equipment.
5.With customized services, machines can be made as per customer's requirements
Technial parameters of High frequency induction copper/brass tube welding machine
Model |
Input voltage |
Input current |
Input power |
Oscillation frequency |
Cooling water pressure |
WGH-IV-16 |
Single phase 220V |
2-35A |
3-16KW |
15-50KHZ |
0.1MPA |
WZP-40 |
320-420V |
2-40A |
3-25KW |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
3-35KW |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
3-50KW |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
3-65KW |
15-30KHZ |
0.3MPA |

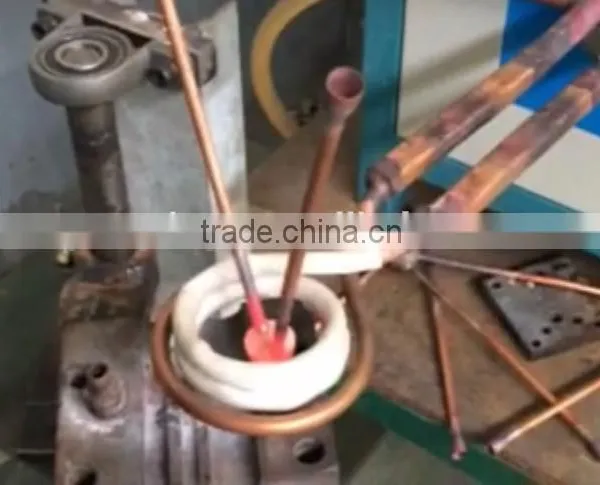

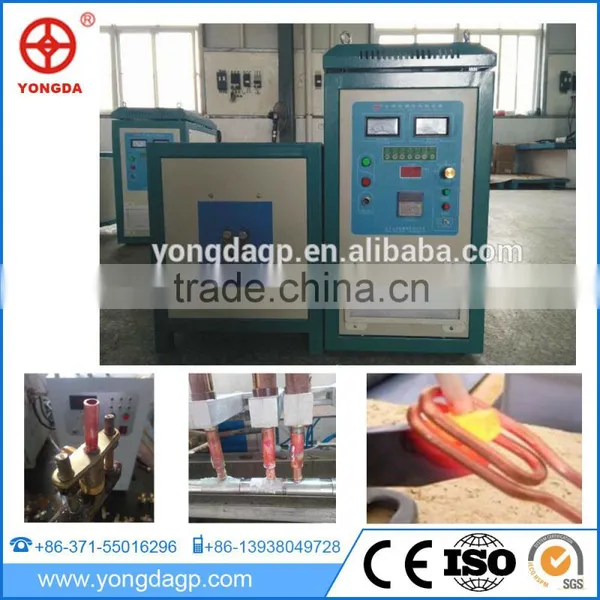

Pictures of induction copper/brass tube welding machine
Control panel:
The machine itself has complete protection functions: such as over current,over voltage, lack of water,lack of phase, water temp. is over high etc. more than ten alarm lamps. Any of the lamps light, machine will stop heating , prevent it will be damaged. Until trouble shooting, start machine again.
Note: Induction coils is tailor-made, according to size of your work pieces.

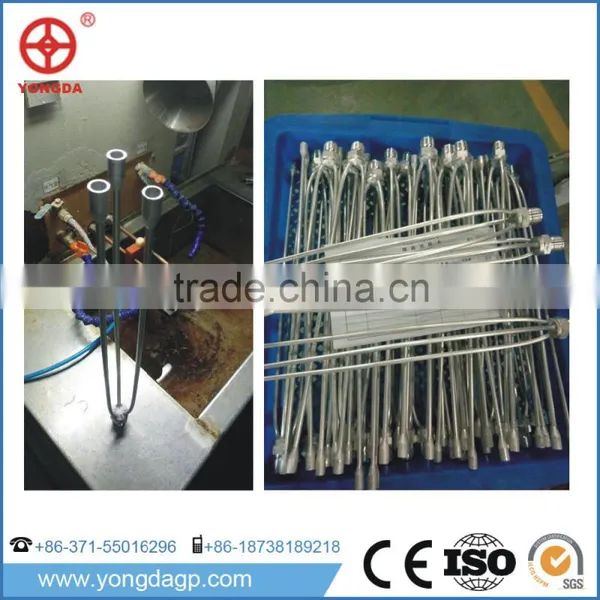

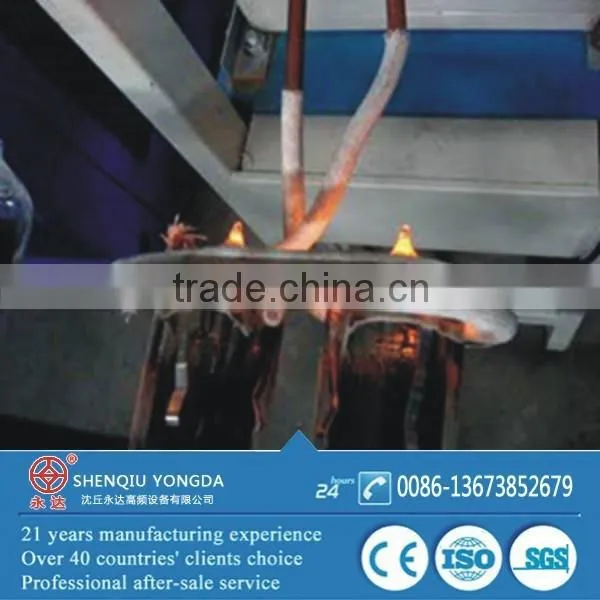

Applications of induction copper/brass tube welding machine
1.metal tube welding:
such as copper tube, steel tube, and aluminum tube’s butt welding, plug welding and welding sets.
2. alloy cutter welding:
such as alloy turning, milling cutter, planer, saw blades, reamer, boring knife.
3.carbide saw blade welding:
diamond saw blade welding, marble saw blade welding,woodworking saw blade welding, cut grass piece of welding, cut aluminum welding
4.metal welding:
such as: towel rack, soap nets, towel holder, auto-accessories,moto accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.
5.customized service:
make machine according to customers' actual working situation
We are in exhibiton
Packing for copper/brass tube welding machine
1.Wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils,foot switch and installing and operating instructions
3.Shipping: by sea LCL(less than container load) or by air.
Pre-sale service:
We will recommend the most applicable equipment for customers according to your work piece processing demands.
In-sale service:
(1) We will strictly produce the equipment according to relevant technical standards.
(2) We will take run test according to relevant equipment test run regulations.
(3) We will strictly inspect the equipment before delivery,only good machine will be sent to customers.
(4) We will send goods as scheduled in the contract.
After-sale service:
(1) We will freely guide installation, commissioning and test run,by sending intall drawings, sometimes calling or send email.
(2) We will execute one-year guarantee period (ex. not include normal wear, damages of wearing parts and parts damages caused by improper operation).
(3) Once there is a trouble during quality guarantee period, our company promises that we will promptly appoint engineer and sales to help, make our efforts to remove troubles and guarantee the normal operation of customers.
(4) We will freely replace all equipment parts during guarantee period. After-sale products archives and life-long repair solve the potential problems of customers.
(5) Provide long-terms technical support. Also for different work pieces , give instructions and help about how to produce inductors.
(6) According to customer’s need, can arrange engineer to install ,test machine and training operators.
(7) After guarantee period, customer can buy machine parts from us with very low cost.
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
If you are interested in copper/brass tube welding machine, please feel free to inquiry us ! Since 1996,we have many years experience in induction welding field. We will provide you the best service as best as we can.
Welcome to contact us for more details ,most competitive price for you !
