Water chiller or air conditioners induction tube brazing welding machine
- 500 Set / Sets per Month
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
- Denoh For Connecting Automation Special Machine 500e Dgn Flux Core Welding Machine Multi Function
- High Quality Multi-function Integrated Multi-purpose Multifunctional Welding Machine
- 500e Dgn Flux Core Integrated Multi-purpose Multi-function Welder
- Denoh Digital Push Wire Type Engine Welding Machine
- Denoh Engine Welding Machine Push Wire Type High Quality China
- Denoh Multi-function Welder For Connecting Automation Special Machine At Wholesale Price
Product Details
Place of Origin: | Henan, China | Brand Name: | yongda | Model Number: | WZP-36 |
Voltage: | 320-420V, 3PH 320V-420V | Current: | 36A | Rated Capacity: | 36KVA |
Rated Duty Cycle: | 95% | Dimensions: | Generator 410*290*500mm; transformer 310*260*380mm | Weight: | Generator 18kgs; transformer 22kgs |
Usage: | brazing welding | Certification: | ISO9001:2000 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Water chiller or air conditioners induction tube brazing welding machine
My company has experience about air conditioners or water chiller tube brazing welding , our customer China biggest air conditioners manufacturer: Media
Technical parameters of tube brazing welding machine
Model | Input voltage | Input current | Input power | Oscillation frequency | Cooling water pressure |
WGH-IV-16 | Single phase 220V | 2-30A | 3-16KW | 10-80KHZ | 0.1MPA |
WZP-36 | 320-420V | 2-36A | 3-20KW | 10-80KHZ | 0.1MPA |
WZP-60 | 320-420V | 3-60A | 3-35KW | 15-30KHZ | 0.2MPA |
WZP-90 | 320-420V | 4-90A | 3-50KW | 15-30KHZ | 0.3MPA |
WZP-120 | 320-420V | 6-120A | 3-65KW | 15-30KHZ | 0.3MPA |
Photo of WGH-IV-16 tube brazing welding machine
WZP-36 High frequency tube brazing welding machine
Functions of controly panel:
The machine itself has complete protection functions: such as over current,over voltage, lack of water,lack of phase, water temp. is over high etc. more than ten alarm lamps. Any of the lamps light, machine will stop heating , prevent it will be damaged. Until trouble shooting, start machine again.
Note: Induction coils is tailor-made, according to size of your work pieces.
Applications of welding machine
Application | Definition | Scope of application | Selection of frequency | Selection of power |
Brazing welding | Brazing is the process of joining two or more pieces of metal or cermic material with a molten filler metal such as silver, aluminium alloy or copper. Induction brazing is a new brazing technology,it is charactered by good woking condition, high production efficiency, safe operation, good joint appearance without acid cleaning and osidation removing. |
Diamond saw blade, hard alloy cutting tools (turning tool, milling cutter, drilling bit), mould mining tools(bore bit, coal puncheon) compressor pipe fittings of
refrigerator, copper wire of transformer,copper wire of motor, induction brazing of copper/silver/tin of automobile fittings. | The diameter of parts i smaller,the frequency is higher; the diameter of parts is bigger, the frequency is lower. E.g. Below 20 lathe tool, frequency range from 50-100KHZ Above 20 lathe tool, frequency range from 10-50KHZ |
The heated area of base metal is bigger, the power is higher the heating cycling of the individual is faster, the power is higher. E.g. brazing of diamond circular saw blade: WZP-40 |

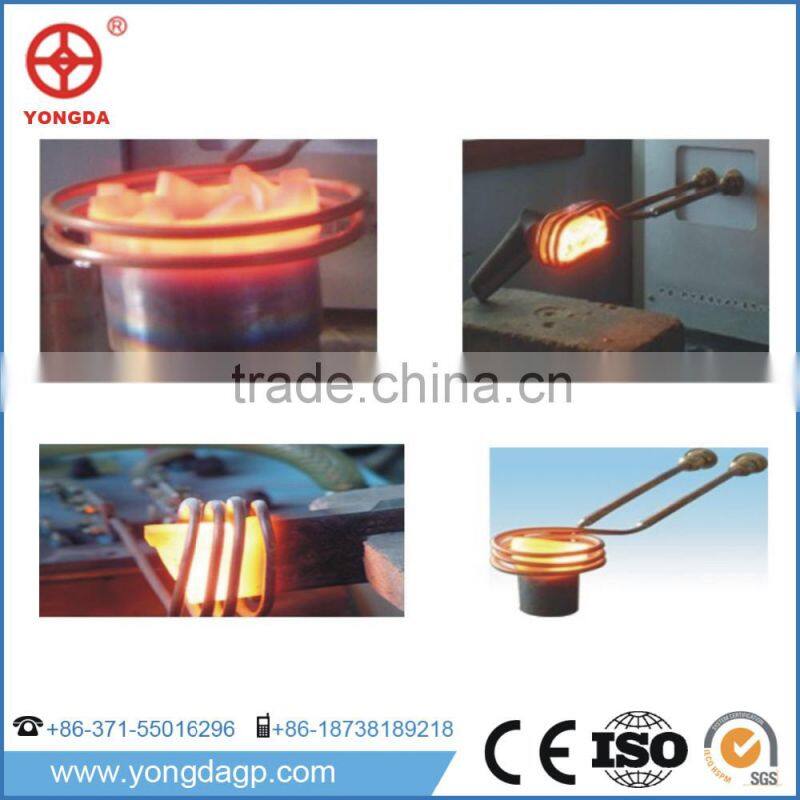

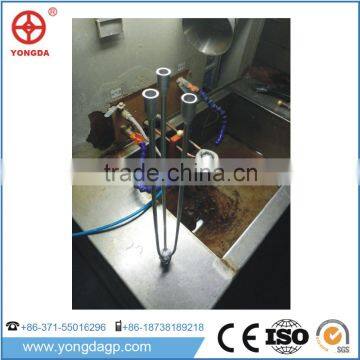

Pictures of induction brazing welding applications
Advantages of tube brazing welding machine
1, good energy efficient: high-frequency transistor can save more than 2 / 3than power;
2, special light,small size
3, low maintenance cost: no fragile, expensive tubes;
4, special security, no pressure, eliminating the high risk of electric shock;
5, high reliability: modular, integrated, high reliability assurance;
6, simple installation : just connect the power and water, and 10 minutes to complete.;
7, easy operation :a few minutes to learn
Packing for tube brazing welding machine
Wooden cases (plywood) or carton. Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Check material and specifications of your work pieces
2. Recommend suitable machine model
3. Send quotation
4. Communication about price, transport and other details
5. Order machine
6. Production machine
7. Delivery goods
8.Tracking goods unitil customers get the machine, help install and instruct operating machine.
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
We are in exhibitions
Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
Company's honor:
More information about tube brazing welding machine, welcome to contact us !
Quality assured ! Low cost ! Considerate servcie ! Shenqiu Yongda welcome you !
