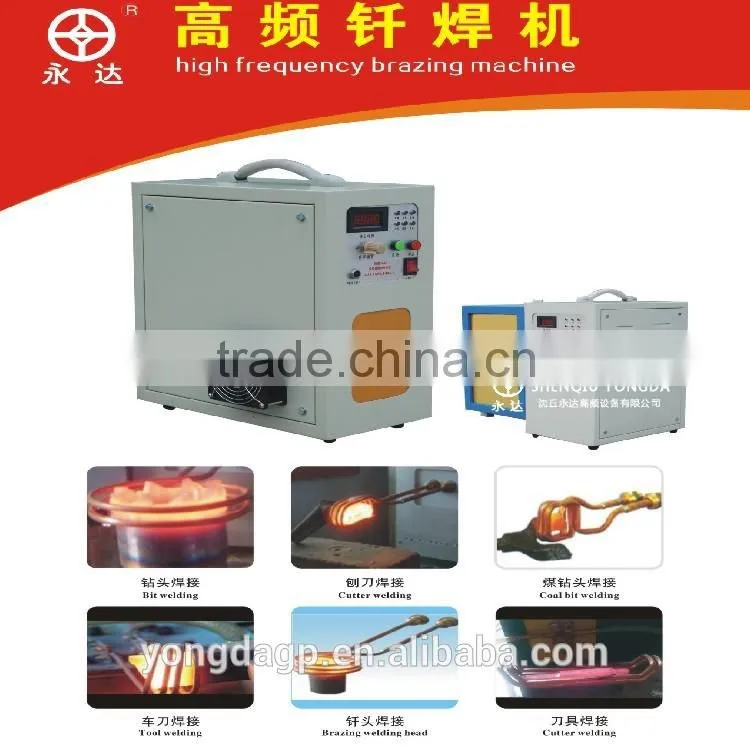

Help Center10-45KW High Frequency Coal Bilt Induction Welder
Related Products
-
Chinese Welding Machine for Making Nut BoltsUS$ 800 - 2,750MOQ: 1 Set -
Best Selling IGBT Induction Heating Welding Machine for Lathe ToolUS$ 780 - 4,800MOQ: 1 Set
-
2015 Hot Sell New Igbt Induction Heating for BrazingUS$ 1,500 - 3,500MOQ: 1 Set
-
High Quality Induction Brazing EquipmentUS$ 680 - 2,500MOQ: 1 Set
-
Portable Induction Heating Equipment for BrazingUS$ 800 - 2,500MOQ: 1 Set
Specifications
induction carbide saw blade brazing machine1. igbt induction heater
2. small size,light weight
3. 24 hours work
4. braze
10-45 KW High frequency coal bilt induction welder
Technical parameters of WZP-90 induction welder
| Model | Work power | Output power | Oscillation frequency | Output current | Cooling water pressure | Size | Weight |
| WZP-90 | three phase 380V+/-10% 50-60HZ | 3-45KW | 10-50KHZ | 3-90A | 0.1-0.2MPA |
generator 665×400×730mm transformer 660×490×435mm |
generator 47kgs; transformer 62kgs |
Features of induction welder
1. IGBT modules, save energy than traditional high frequency tube heater.
2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.
4. No need contacting work pieces, safety, safe and reliable.
5. Environmental friendly,no pollution, good for worker's health
6. Easy to change induction coils, for heating different shape of steel billet
7. Easy to install and operate.
8. Low maintenance cost
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
Applications of induction welder
Induction brazing welding lathe tools, reamers, cutting tools, drill bits, drill bits, cutter, woodworking tools, garden tools, stainless steel products, steel, yellow copper parts
Brazing |
Brazing is the process of joining two or more pieces of metal or cermic material with a molten filler metal such as silver, aluminium alloy or copper. Induction brazing is a new brazing technology,it is charactered by good woking condition, high production efficiency, safe operation, good joint appearance without acid cleaning and osidation removing. |
Diamond saw blade, hard alloy cutting tools (turning tool, milling cutter, drilling bit), mould mining tools(bore bit, coal puncheon) compressor pipe fittings of
refrigerator, copper wire of transformer,copper wire of motor, induction brazing of copper/silver/tin of automobile fittings. |
The diameter of parts i smaller,the frequency is higher; the diameter of parts is bigger, the frequency is lower. E.g. Below 20 lathe tool, frequency range from 50-100KHZ Above 20 lathe tool, frequency range from 10-50KHZ |
The heated area of base metal is bigger, the power is higher the heating cycling of the individual is faster, the power is higher. E.g. brazing of diamond circular saw blade: WZP-40 |
WZP-36KW, WZP-16KW high frequency induction welder
Service process
1. Online consult 2. Check drawings or pictures 3. Machine model(power and frequency ) recommendation 4. Make agreement 5. Production 6. debugging machine before sending goods 7. Delivery goods 8. Tracking goods 9. Provide documents help customer clearance customs 10, Tracking customer install and use machine cases
1.What's your MOQ?
Our minimum quanity is 1 set
2.How many induction coils you provide?
Usually we equipped with machine 2 piece induction coils.
3.Can we have extra induction coils ?
Yes, of course. For extra coils, we can tailor-made induction coils, as your required, low cost
4.We have not cooperated with you....and your are 1st member of ALibaba.
Well , although we are Alibaba member 1st year, but our product has been sold to many countries, such as Asia, Europe, South America , UAE etc. We have very big market in domestic, and our prouducts has been sold home and abroad from our Guangzhou,Shanghai, Chongqing etc. offices. And now you also can buy induction heating machine with very low cost from our factory , which is located in SHenqiu,Henan province.
5.Do you have quality certifications?
Yes, we have ISO9001:2000 Certifications.
6.I am new , about this product
No matter, let our professional sales to guide you. Finally, to recommend you the suitable machine power and competitive price.You just need tell us your work pieces' specifications and heating requrirements.
More questions and answers, are updating...
Thanks for your reading !
If you are interted in induction welder, please feel free to inquiry us ! Since 1996,we have many years experience in induction brazing welding. We will provide you the best servcie as best as we can.
