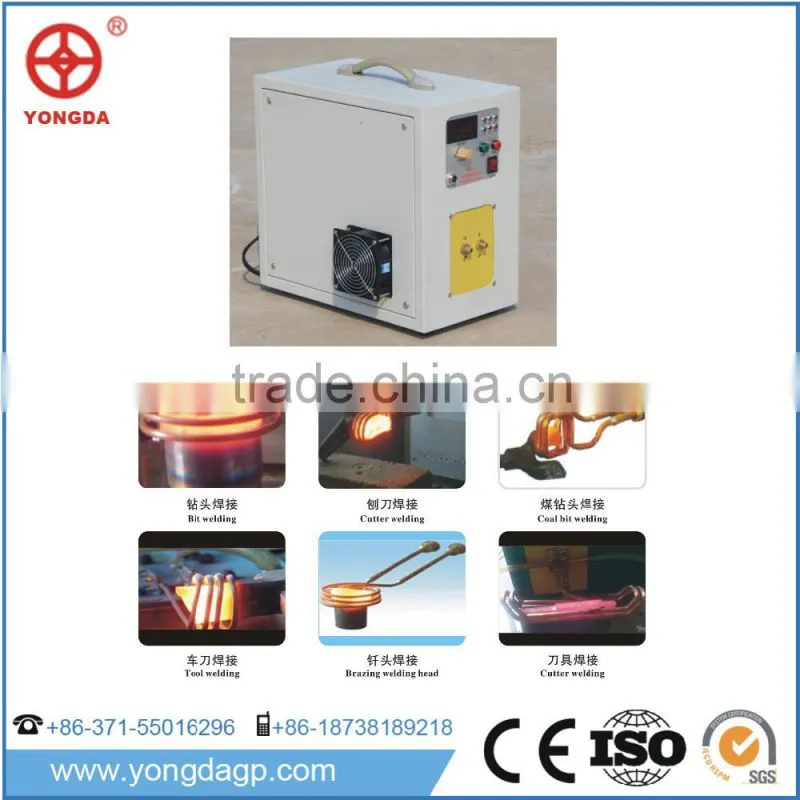

WGH-IV-16KW hard alloy brazed heat high frequency brazing machine
Usage of high frequency brazing machine:
Brazing carbide blade, turning, milling, planing, reamer, diamond saw blade, serrated welding; grinding, drilling, cutting welding; brass, copper, stainless steel pot, etc. hybrid welding of metallic materials.
Technical parameters of 16KW induction heating welder
| Model | Work power | Output power | Oscillation frequency | Output current | Cooling water pressure | Size | Weight |
| WGH-IV-16 | Single phase 220V+/-10% 50-60HZ | 3-16KW | 10-80KHZ | 3-35A | 0.1MPA | 410×200×420mm |
28kgs |
Features of high frequency brazing machine
1. IGBT modules, save energy than traditional high frequency tube heater.
2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.
4. No need contacting work pieces, safety, safe and reliable.
5. Environmental friendly,no pollution, good for worker's health
6. Easy to change induction coils, for heating different shape of steel billet
7. Easy to install and operate.
8. Low maintenance cost
Brazing common machine model:
WZP-36,20KW
WZP-60,35KW
WZP-90,50KW
WZP-120, 65KW
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-36 |
320-420V |
2-40A |
10-80KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
10-80KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
10-50KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
10-50KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
10-50KHZ |
0.3MPA |
brazed heat (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.
1. Welding of various hardware mechanical parts: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.
2. Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.
3. Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various forms.
4. Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.
5, electric kettle (electric coffee pot) of hot plate welding is mainly used for stainless steel flat bottom, aluminum pipe with a variety of shapes between the electric soldering.
6.the welding of various metal cutting tools: diamond cutting tools, grinding tools, drilling tools, alloy saw blade, carbide turning tools, milling cutters, reamers, planer, drill bits and other woodworking welding
7.the welding of various metal machinery parts: hardware bathroom products, refrigeration copper fittings, lighting accessories, precision mold parts, metal handle, mixer, alloy steel and steel, steel and copper, copper and copper equivalent or dissimilar metals Metallic silver, brazing;
8.Mining tools, welding, such as "one " bits, pillar gear drill bits, dovetail coal drill bits, drill rods riveting, all kinds of shearer, boring machine pick a variety of welding

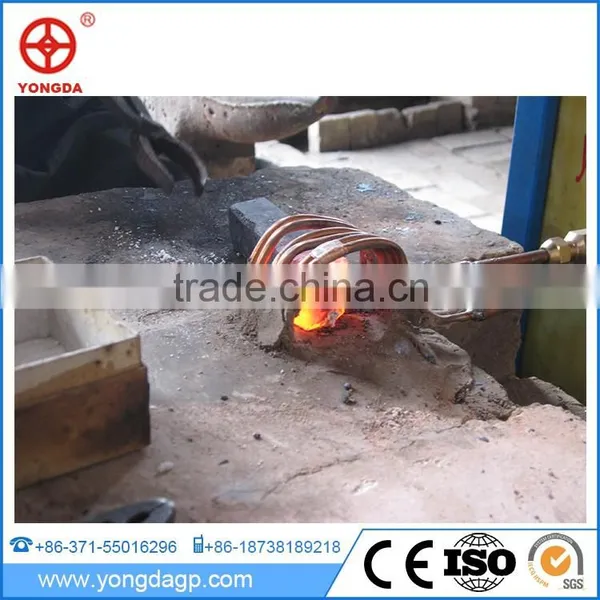

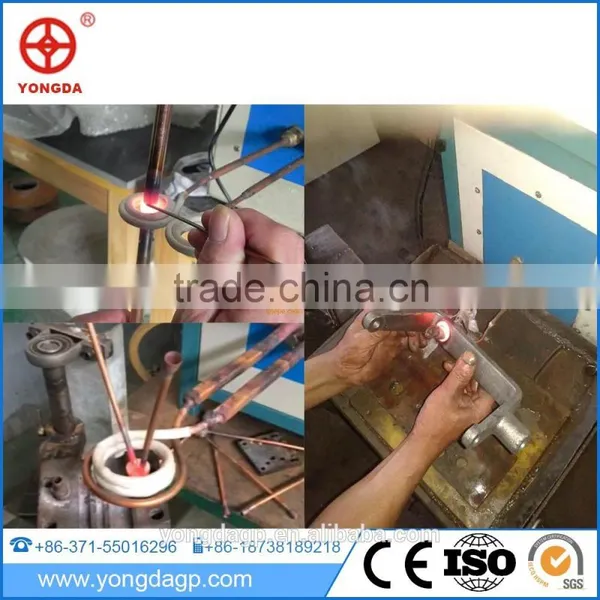

Various of work piece brazed heat
Packing for induction heating welder
Wooden cases (plywood) or cartoon. As your required.
Inside,will be filled with plastic foam,for waterproof and shockproof.

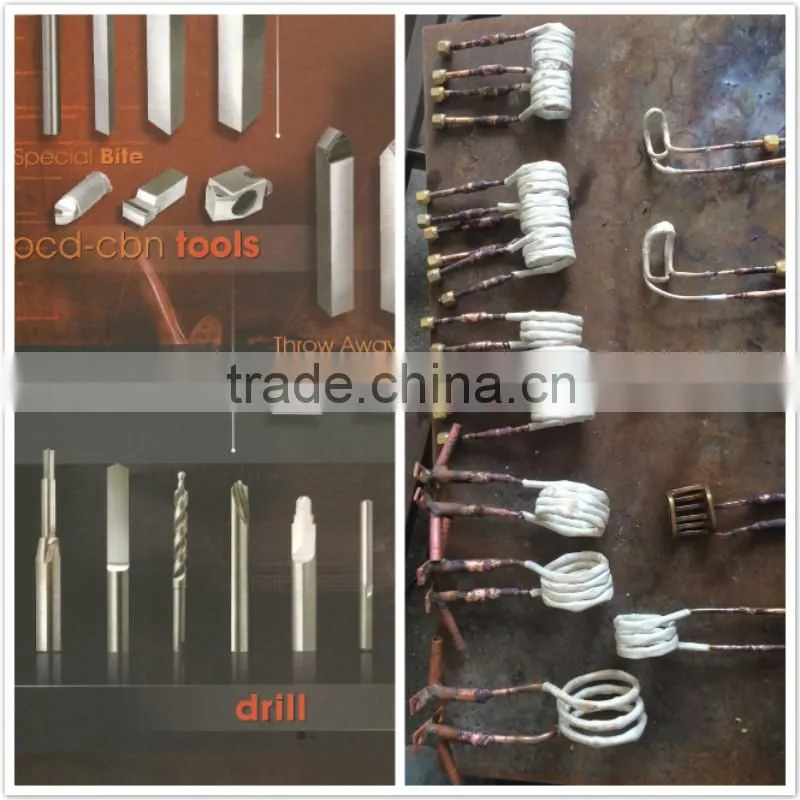

Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 hours
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Reach an agreements, sign proforma invoice or contract.
6. Produce induction heating equipment strictly based on the PI/contract.
7. Arrange goods shipment
8.Tracking goods and help you install and operating machines.
9. Email or Call visit.
10.Provide long-terms technical support.
Welcome to contact jessie directly !
We will provide you the best servcie as best as we can.
