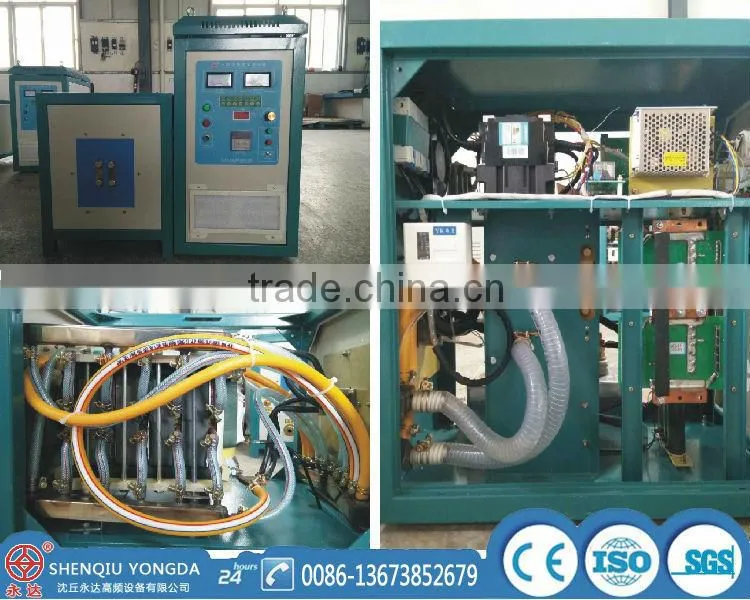

Low cost high quality diamond saw blade welding machine
WZP-60 /35KW .This model is suitable for saw blades,turning tool,reamer,the impact of drilling,thin drill bit,pick,coal bit,welding of stainless steel products,small metal work parts heat treatment
Technical parameters of WZP-60 diamond saw blade welding machine
| Model | Work power | Output power | Oscillation frequency | Output current | Cooling water pressure | Size | Weight |
| WZP-60 | three phase 380V+/-10% 50-60HZ | 3-35KW | 10-50KHZ | 4-60A | 0.1MPA |
generator 590×330×650mm transformer 500×360×455mm |
41kgs; 37kgs |
Features of diamond saw blade welding machine
1. IGBT modules, save energy than traditional high frequency tube heater.
2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.
4. No need contacting work pieces, safety, safe and reliable.
5. Environmental friendly,no pollution, good for worker's health
6. Easy to change induction coils, for heating different shape of steel billet
7. Easy to install and operate.
8. Low maintenance cost
Applications of welding machine
1. Solderin/brazing
(1) tools, cutlery categories:
Pliers, tools, reamers, metal, saw, cutter, air drill, coal drill,
(2) other categories:
Relay contacts, tubing, thermostat, welding instrument bulb contacts, disc, transformer copper, eyes welded copper sanitary ware, radiators, stainless steel pot handles, stainless steel pot pot cover air conditioning compressor welding
Other welding machine model recommendation
Model |
Input voltage |
Input current |
Input power |
Oscillation frequency |
Cooling water pressure |
WGH-IV-16 |
Single phase 220V |
2-35A |
3-16KW |
15-50KHZ |
0.1MPA |
WZP-40 |
320-420V |
2-40A |
3-25KW |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
3-35KW |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
3-50KW |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
3-65KW |
15-30KHZ |
0.3MPA |
No.YD010008
Thanks for your reading !
If you are interted in diamond saw balde welding machine
, please feel free to inquiry us ! Since 1996,we have many years experience in induction welding field. We will provide you the best servcie as best as we can.
