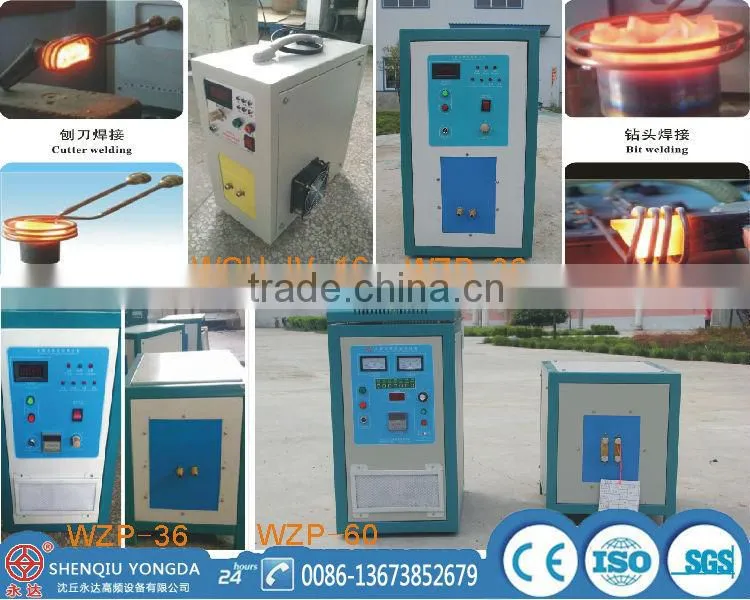

High frequency induction brazing welding machine for for heating speed fast
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
Features of induction brazing welding machine
1. Light weight, small size and simple structure
2. Simple to operate, a few minutes are enough for user to learn it.
3. Simple to install, installation can be done by unprofessional person very easily.
4. Heating fast
5. Different shapes and sizes of induction coils replaceable
6. Multi-display functions, with displays of over current, over voltage, water lack, phase lack and so on, machine can be protected from destroys and can be repaired easily.
7. Advantages: the machine is with timer, so user can preset machine’s power, operating time, heating time and retaining time to realize a simple heating curve.
Welding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.
1. Welding of various hardware mechanical parts: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.
2. Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.
3. Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various forms.
4. Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.
5, electric kettle (electric coffee pot) of hot plate welding is mainly used for stainless steel flat bottom, aluminum pipe with a variety of shapes between the electric soldering.
6.the welding of various metal cutting tools: diamond cutting tools, grinding tools, drilling tools, alloy saw blade, carbide turning tools, milling cutters, reamers, planer, drill bits and other woodworking welding
7.the welding of various metal machinery parts: hardware bathroom products, refrigeration copper fittings, lighting accessories, precision mold parts, metal handle, mixer, alloy steel and steel, steel and copper, copper and copper equivalent or dissimilar metals Metallic silver, brazing;
8.Mining tools, welding, such as "one " bits, pillar gear drill bits, dovetail coal drill bits, drill rods riveting, all kinds of shearer, boring machine pick a variety of welding
Packing for induction brazing welding machine
1.Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils,foot switch and installing and operating instructions
3.Shipping: by sea LCL(less than container load) or by air.
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
Our company office and workshop
Thanks for your reading ! Welcome to contact us !
