High frequency induction annealing machine for plow knife
Induction annealing machine can be used for annealing the following work piece :

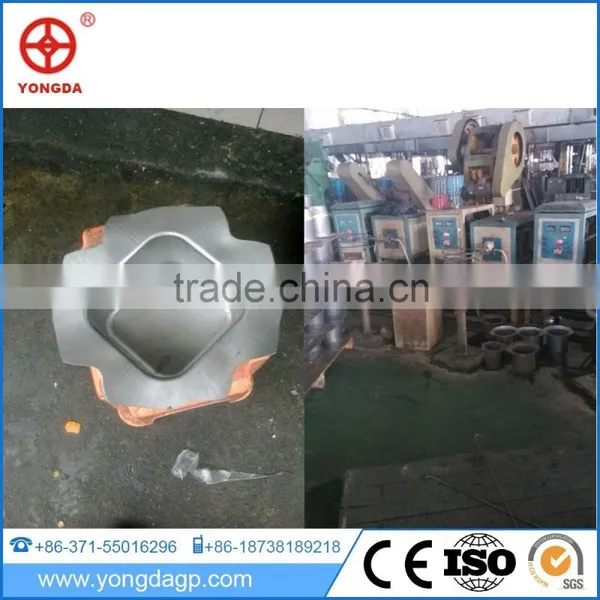

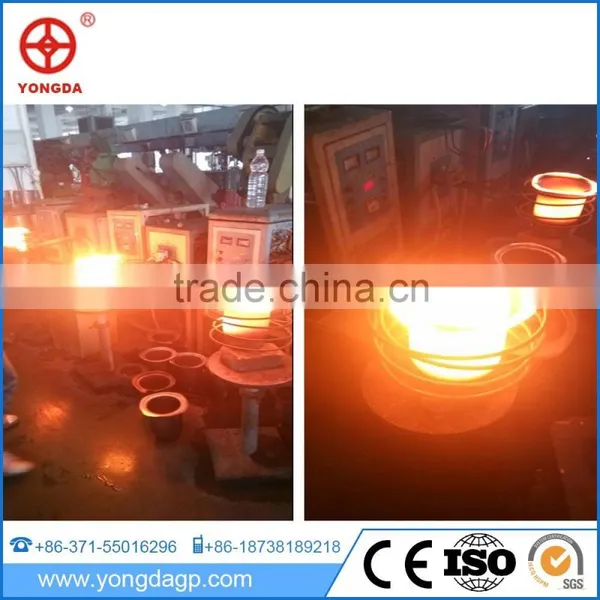

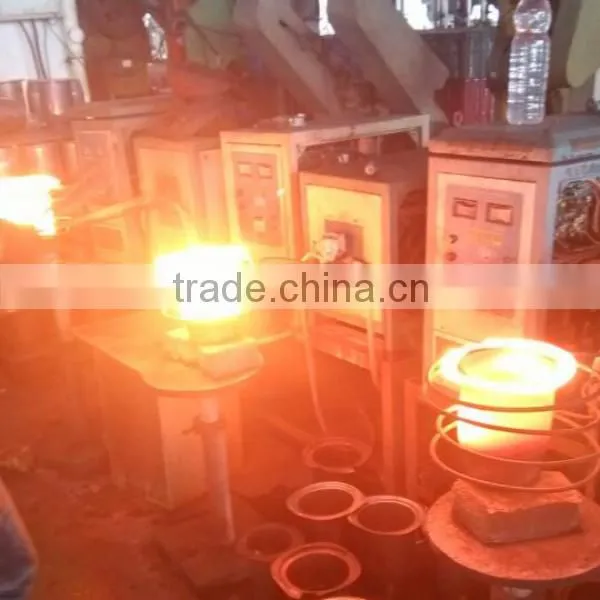

(1) Annealing Stainless steel: stainless steel cups, stainless steel sink, stainless steel boxes, pans, pots, buckets, cutlery, forks, spoons,
(2) Annealing other types:
Metal strap flange, exhaust pipe flange, chain annealing, punching, the fans rivet heating, mine screen annealing.

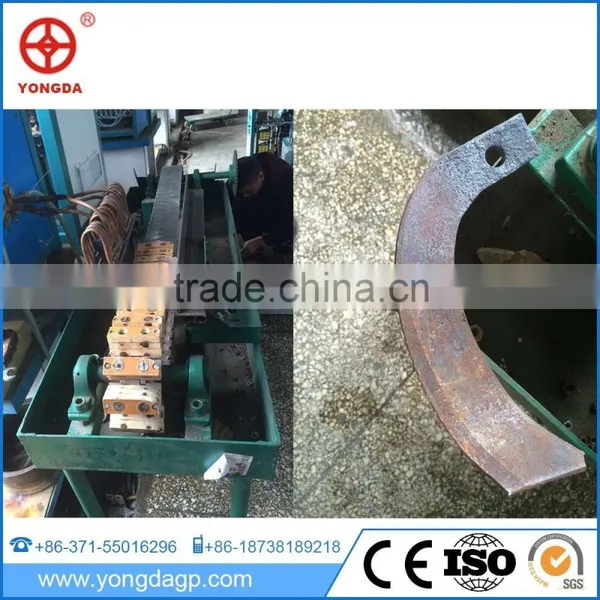

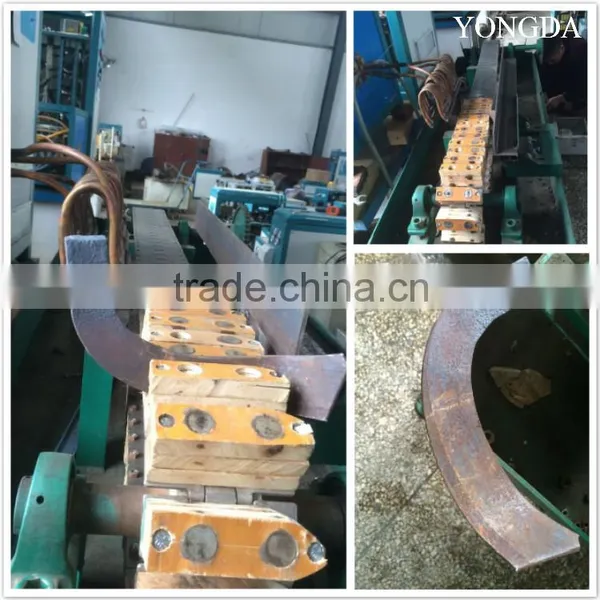

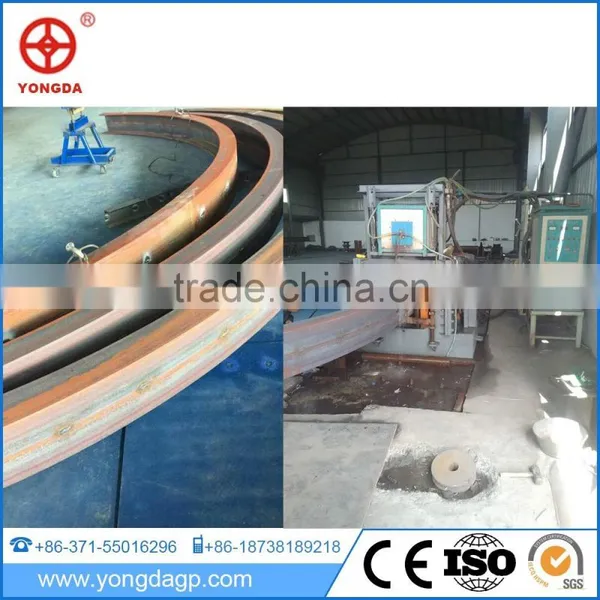

Induction annealing plow knife/ plough/coulter

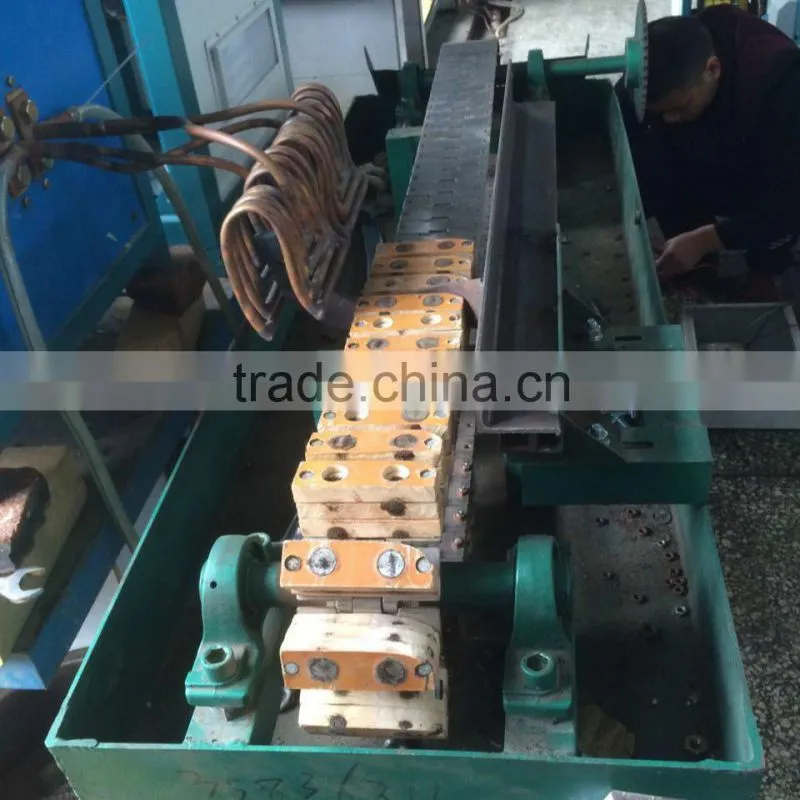

Automatic feeding chain transmission
What advantages of yongda high frequency induction annealing machine ?
1- IGBT technology, Germany Siemens IGBT module , save energy 30%-50%
2- Unique water cooling sytem, ensure machine work 24 hours continuous .
3- Complete ptrotection . OC,OV,LW,LP etc. alarm lamps prevent machine from damaged.
4- Induction coils can be produced very long, especailly suitable for hot forging steel rod ,brass rod etc.
5- We have 10KW,20KW,40KW,70KW,90KW,120KW,160KW,200KW,300KW,400KW,500KW ,600KW induction heating machine
6- Auto tracking frequency , frequency from 0.5-100KHZ different , customzide, depend on your work pieces
7- Our machine can work together with timer, infrared thermometer, CNC quenching machine tool , closed cooling tower, etc. can form a automatic production line : such as bolts nut hot forging line, steel bar hardening and tempering production line.

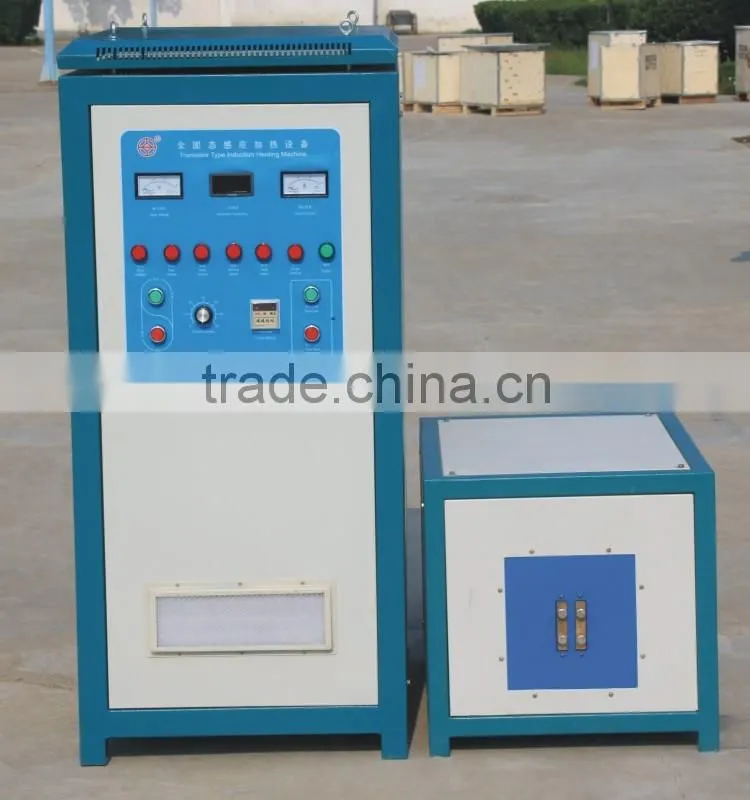

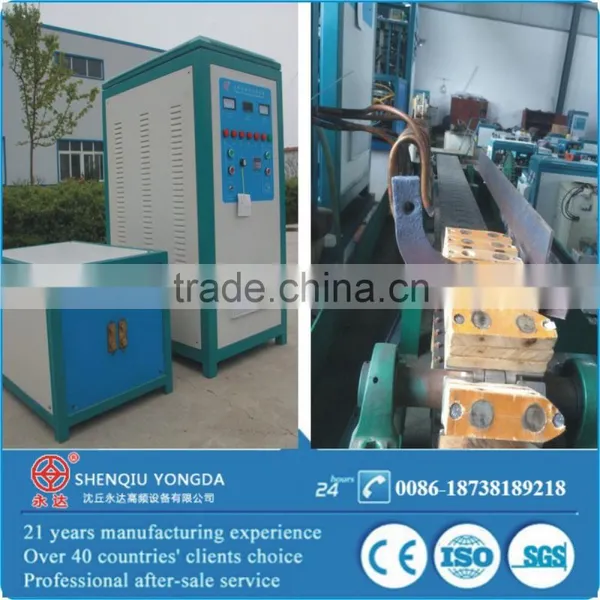

Photo of 120kw high frequency induction annealing machine
Technical parameters of high frequency induction annealing machine 120KW
Model |
WZP-120 KW |
Work power |
3 phase 380V+/-10%, 50-60HZ |
Input voltage |
320V-420V |
Input current |
6-200A |
Input power |
10-120KW(power adjusted stepless) |
Oscillation frequency |
10-50KHZ |
Cooling water pressure |
0.3 MPA |
|
Size of geneartor: Transformer |
850*600*1330mm 780*540*520mm |
Weight of generator ; transformer |
131kgs; 89kgs |
Water cooling protection point |
Below 50 degree celsius |
Accessories |
induction coils foot pedal water shunt valve water hose (standard configuration) User manual |
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to Research & Development,production of high frequency induction heating machine, medium frequency induction heating equipment,supersonic frequency induction heating machine,induction forging machine, induction hardening machine, adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions. We have international trade office in zhengzhou. East to international airport (CGO), besides, high way, high speed rail,transport is very convenient.
Our workshop: debug high frequency induction heating /annealing/welding/quenching machine
Company products:
Medium frequency induction heating machine IGBT and KGPS SCR
High frequency (Super audio ) induction heating machine
Induction hardening machine, induction forging machine,induction brazing machine, induction annealing furnace,
Electromagnetic induction heating equipment,Induction melting furnace ;
CNC hardening machine tool,Automatic feeding steel rods machine,
Round bar,steel pipe induction hardening and tempering equipment
Concrete pump pipe dedicated quenching machine,Hydraulic cylinder cladding equipment;
Closed cooling tower,etc.
Our partner

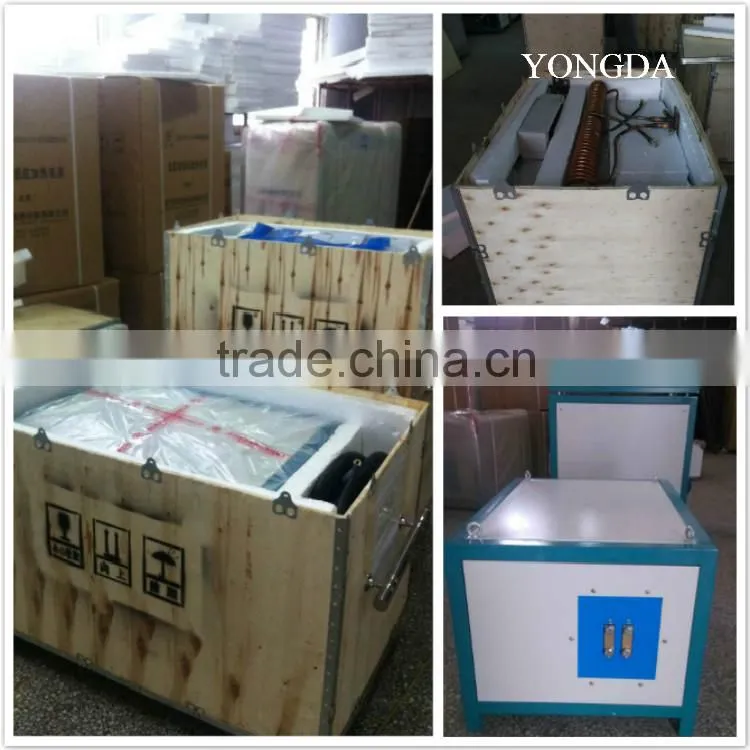

Packing for high frequency induction annealing machine
1.Wooden cases (plywood) , as you required.
2.Inside,will be filled with plastic foam,for waterproof and shockproof.
3.Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air/train/courier
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Reach an agreements, sign proforma invoice or contract.
6. Produce induction heating equipment strictly based on the PI/contract.
7. Arrange goods shipment
8.Tracking goods and help you install and operating machines.
9. Email or Call visit.
10.Provide long-terms technical support.
