Henan Yongda U-steel induction annealing machine with CE ISO Certification
Induction annealing U- steel for bending, Yongda Co. 160KW Model WZP-160 can do this job.
Induction annealing machine, stress relieve
Applications of induction annealing machine
(1) Annealing stainless steel: stainless steel cups, stainless steel sink, stainless steel boxes, pans, pots, buckets, cutlery, forks, spoons,
(2), other types:
Metal strap flange, exhaust pipe flange, chain annealing, punching, the fans rivet heating, mine screen annealing.
Pumping gas pipe
Yongda WZP-160KW induction annealing machine heating U-steel

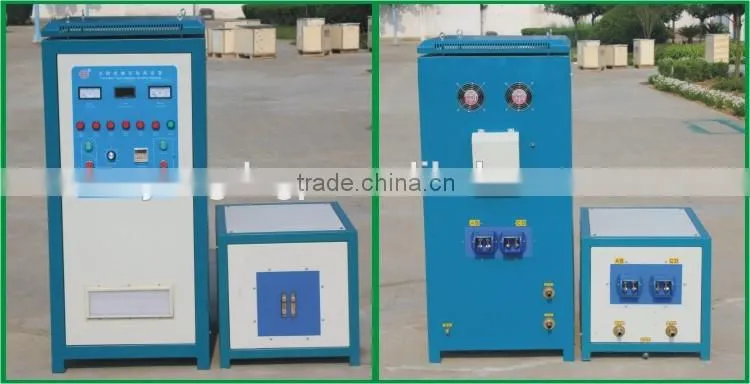

Induction annealing machine WZP-160 technical parameters
Model |
WZP-160 |
Work power |
3 phase 380V+/-10%, 50-60HZ |
Input voltage |
320V-420V |
Input current |
6-300A |
Input power |
3-160KW(power adjusted stepless) |
Oscillation frequency |
10-50 KHZ |
Cooling water pressure |
0.3 MPA |
|
Size of geneartor: Transformer |
850*600*1330mm 780*540*520mm |
Weight of generator ; transformer |
147kgs; 108kgs |
Water cooling protection point |
Below 50 degree celsius |
Annealing U-Steel for bending
Packing for induction annealing machine
1.Two wooden cases (plywood) or caron,as you request.
Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: high frequency cable 2 pcs, (connect generator and transformer)induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air/train etc.
Various of metal induction annealing, induction heating , more information such as model recommendation and video for reference ,please send us enquiry or contact us with the following ways.
Sincerely provide service for you!
