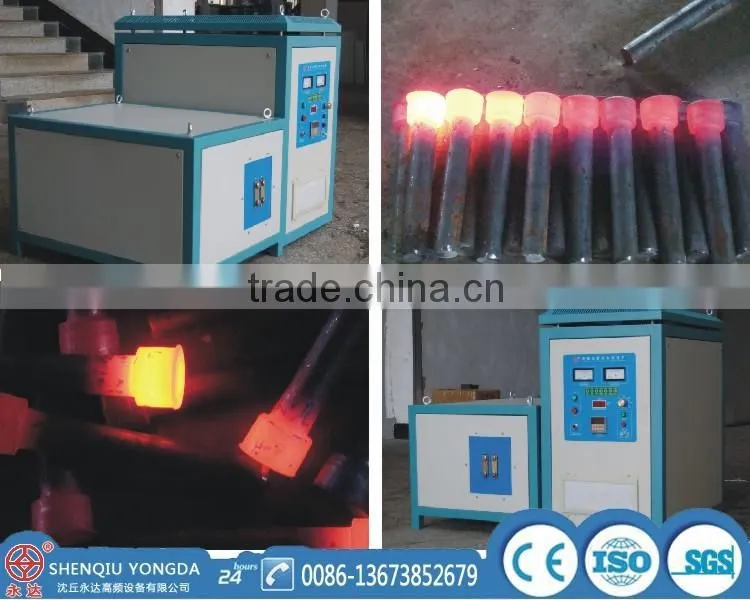

Super audio frequency bearing induction heating equipment
Advantages of bearing induction heating equipment :
| 1. Adopting IGBT module |
| 2. Configurable induction coils |
| 3. A wide range of applications |
| 4.Simple installation and easy operation |
| 5. Small size, energy saving, rapid heating, 1000°C in seconds |
| 6.Easy installation, Economic Space Occupation, Miniature and light weight |
| 7.Perfect and complete protection functions, increasing machine's reliability |
| 8.Energy saving, Environmental protection, Low pollution level |
| 9.Customized services, which made machines as per customer's requirement. |
| 10.Able to continuously work for 24h, 100% work load rate |
The main technical parameters;
Model Number |
WZP-90 |
Input power |
50kW Max |
Input voltage |
320-420v |
Oscillation frequency |
15-30KHZ |
cooling water pressure |
0.3Mpa |
Temperature of cooling water |
≤ 45º C |
The application of bearing induction heating equipment
High-frequency equipment use case description:
1. all kinds of shaft hardening, hardened layer 1.5-3mm, diameter Φ10mm-250mm, all types in the hole quenching.
2. Φ5-Φ12 wire annealing.
3. all kinds of brazing welding head.
4. Φ25 bar through the following heat, the speed much faster than the SCR. Φ60mm-Φ100mm bar diathermy
5. all kinds of chains, sprockets treatment
6. Angang weight of 80 tons 3 meters in diameter hardened gears
7. Hanjiang River Bridge with a thickness of 17.5mm Φ1016mm steel heated to 1,000 degrees bent shape.
8. necking forming various types of steel heat
9. copper bar annealing, wire annealing
10. Machine Tool Gears, Sprockets quenching
11. all kinds of heating elbow flared necking.
12. Φ50mm 3mm thick stainless steel annealing
1.Two wooden cases(plywood) for bearing induction heating equipment .
2. One for generator, one for transformer.
3.Accessories: inducton coils,foot switch. installing and operating instructions
1.One year free replacement spare parts
2.Provide long-terms technical support
3.About installation: provide install technical skecth, install and operating instruction, or send engineer to helps if need.
4.About spare parts: beyong warranty period, you can buy spare parts from us with very low cost.
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to Research & Development,production of high frequency induction heating machine, medium frequency induction heating equipment,supersonic frequency induction heating machine,induction forging machine, induction hardening machine, adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions. We have international trade office in zhengzhou. East to international airport (CGO), besides, high way, high speed rail,transport is very convenient.
