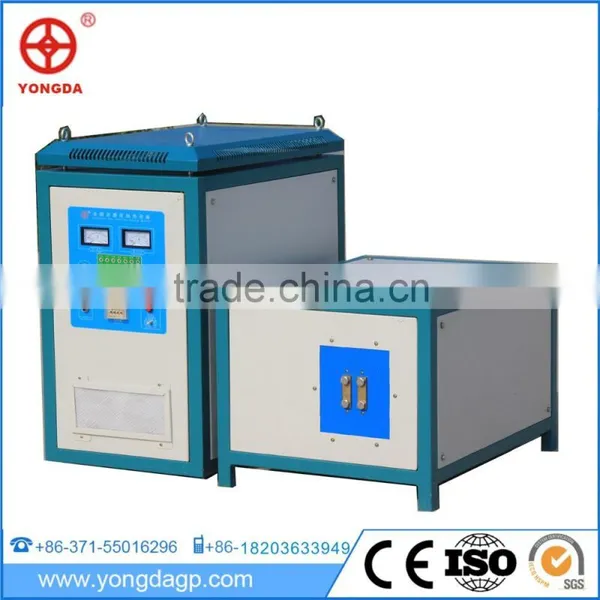

industrial heating high frequency HF small induction heater for tube rods billets
Introduction of HF small induction heater for tube rods billets:
YONGDA high frequency equipment is a device adopt for modern electronic module as key part of converter, through convert 50/60Hz power current into current with at different frequency band, which produces strong electromagnetic field in inductor to heat metal in a very short time. it can widely used in hardening, brazing, forging, melting, annealing, and some other industrial metal heating process.
Advantages of HF small induction heater for tube rods billets:
1. The machine adopts IGBT modules (Siemens, Germany), high efficiency, energy saving.
2. Environmental. Almost no oxide layer, produced no exhaust, no waste-water is generated.
3. Heating fast and uniform.
4. A unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
5. Easy installation, simple operation.
6. Safe and reliable. No high voltage, very safe for operating people.
7. Machine power can be adjust step-less.
8. It has complete self-protect functions: such as many types of alarm lamps: over-current, over-voltage, over hot, water shortage etc, can also control and protect itself.
Products of HF small induction heater for tube rods billets:
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
Heating Application of HF small induction heater for tube rods billets:
YONGDA induction heating machine mainly use Induction heating, hardening, annealing, tempering, brazing, melting for many kinds of metal materials, such as auto parts workpieces, pipes, tubes, wires, rebars, motorcycle parts, camshaft, crankshaft, gear, axles, sprockets, etc. According to specifications of your workpiece requirement, we will offer the best suitable machine for you.
Package & shipping of HF small induction heater for tube rods billets:
1.Standard wooden case packaging.
2.Add foam for shockproof and add plastic film for waterproof.
3.Add steel belt and rivets fastening wooden cases.
4.The bottom pallet can bear 3 times weight than goods.
5.Transportation by sea,by air,by express DHL is available.
6.We will send you packaging photos, after goods sent from our factory.
7.Warranty: 12 months free replacement spare parts.
8.Manuals: operating and maintenance instructions,Troubleshooting Guide, Equipment inspection certification, warranty card,factory packing.
Service of YONGDA HF small induction heater for tube rods billets:
1. Reply your inquiry within 24 hours.
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Produce induction heating equipment strictly based on the PI/contract.
6. About installation: provide install technical skecth, install and operating instruction, or send engineer to helps if need.
7. Tracking goods and help you install and operating machines.
8. Offer 12 months free replacement spare parts and Provide long-terms technical supporting.
Company information of YONGDA HF small induction heater for tube rods billets:
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, registered in 2000, which belongs to high-tech enterprise in Henan Province,China. We professionally dedicated to Research & Development,production of high frequency/ medium frequency/ supersonic frequency induction heating machine,induction forging machine, induction hardening machine. Up to now, we have more than 100 office in domestic, and international trade office in zhengzhou. East to international airport (CGO), besides, high way, high speed rail,transport is very convenient.
CE Certificate of HF small induction heater for tube rods billets:
Exihibition of HF small induction heater for tube rods billets:
FAQ of HF small induction heater for tube rods billets:
1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2. How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free.
And we provide life long time technical support and other assistance.
3. How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
4. Which export port you use?
Any China port, commonly we will use Shenzhen, Guangzhou, Hongkong port, it can appoint as you like.
5. How about the payment terms and delivery time?
Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
The big machines and big amount: 30% deposit, 70% before shipment. You can pay by T/T, L/C, Western Union or other ways.
The small machine delivery time is within 7 days, the bigger one takes about 15days, we will delivery goods on time.
6. Is your goods has ISO9001 or CE certificate?
Yes, all our goods has ISO and CE certificate. All machines are high quality goods.
7. What is your nature of your company: Dealer or factory?
We are manufacturer and have a big factory, warmly welcome to visit our factory and contact us.
