Help Center20-63 mm PE Plastic Pipe Production Line
Related Products
-
20-75mm LDPE Plastic Pipe Production LineUS$ 26,000 - 30,000MOQ: 1 Set -
Pp-r Pipe Extrusion Machine for Water PipeNegotiableMOQ: 1 Set
-
Double Disk WinderNegotiableMOQ: 1 Set
-
Professional New and Recycled Plastic Extrusion HD LD PE Sheet Production LineNegotiableMOQ: 1 Set
-
630mm PE Pipe Making MachineNegotiableMOQ: 1 Set
Specifications
1. Diameter: 20-63mm2. Output: 80-120kg/h
3. Power: 80kw
4. Max. Production speed: 0.7-10m/min
PE Plastic Pipe production Line:
1) Application: this PE Plastic pipe production line is suitable for pipe line which uses PE, PPR, PP,
PPB, PPC, and ABS resins as its raw material

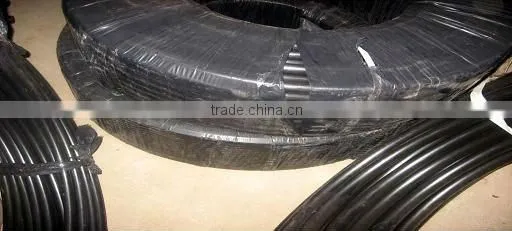

As belowed the PE pipe picture in roll:
2) Characteristics:
a) Man-machine operation interface, high automation level
b) The adoption of professional screw ensures good plastification
c) Adopts compound screw type head to clear memory function effectively
d) Vacuum forming, constant temperature control to remove stress of pipe
material
e) Adopts common extruding head and adds marking color line for pipe material
2) Technology parameter of the PE Plastic pipe production line:
a) Models: SJPG-65, SJPG-90, SJPG-120
b) Main motor power (kW): 30 - 37, 55 - 75, 90
c) Cylinder heating power (kW): 23, 34, 48
d) Length-diameter ratio: 30:1, 30:1, 30:1
e) Vacuum pump power (kW): 5.5, 7.5, 7.5
f) Water pump power (kW): 4, 4, 4
7) Drawing motor power (kW): 3, 4, 5.5
8) Cutting power (kW): 2.2, 2.2, 3
Standard PE Plastic pipe production line model:
| Unit Model | SJPG-65 | SJPG-90 | SJPG-120 |
|
Main motor power(kw) |
30-37 | 55-75 | 90 |
|
Cylinder heating power(kw) |
23 | 34 | 48 |
|
Length-diameter ratio |
30: 1 | 30: 1 | 30: 1 |
|
Production capacity(Kg/h) |
80-100 | 120-150 | 200-220 |
|
Vacuum pump power(kw) |
5.5 | 7.5 | 7.5 |
|
Water pump power(kw) |
4 | 4 | 4 |
|
Mobile motor power(kw) |
0.75 | 0.75 | 1.1 |
|
Drawing motor power(kw) |
3 | 4 | 5.5 |
|
Cutting motor power(kw) |
2.2 | 2.2 | 3 |
|
Power(kw) |
72 | 110 | 160 |
|
Equipment arrangement length(mm) |
30 | 36 | 42 |
Prcocess flow of the PE Plastic Pipe production line:
Vacuum feeding machine---- Dry hopper ----- Single screw extruder----- Mould ----- Vacuum tank ----- Water tank----Haul off ---- Double disk winding machine

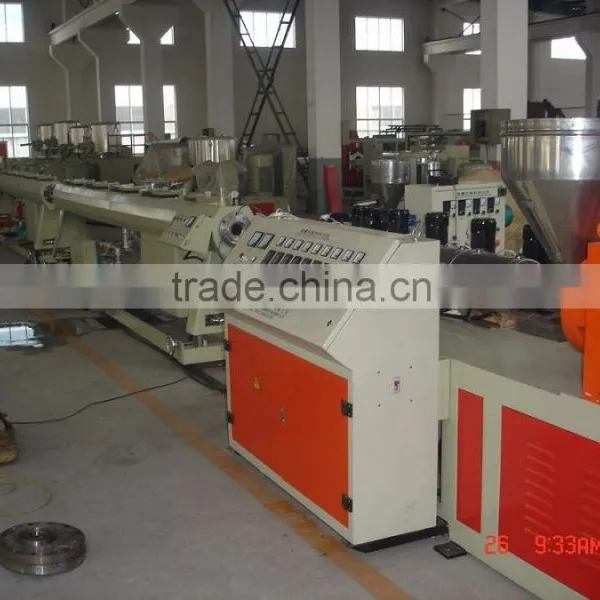

Individual machine photo of this 20-63mm PE Plastic pipe production line:

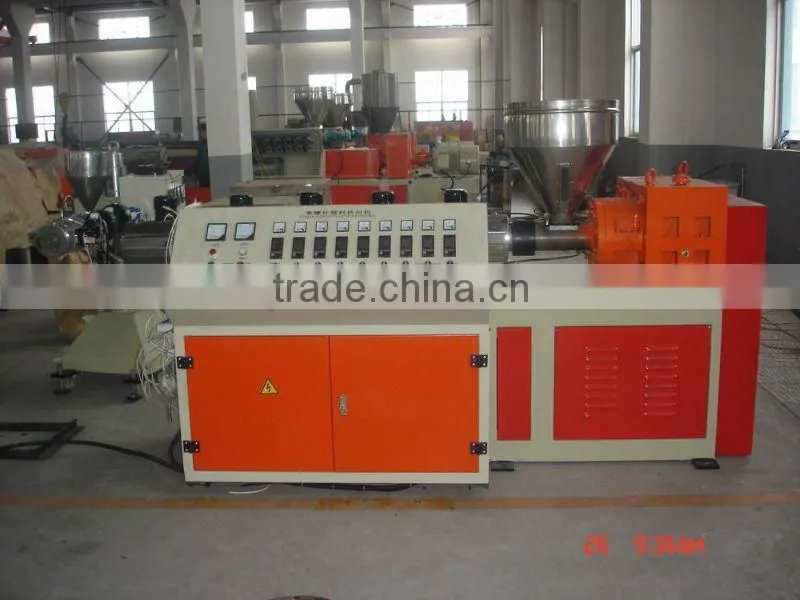

SJ 65/33 Single screw extruder

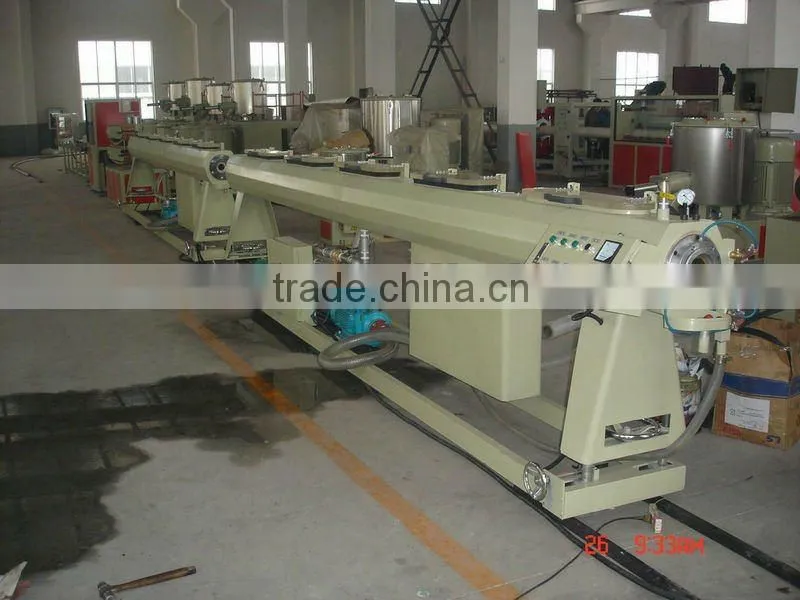

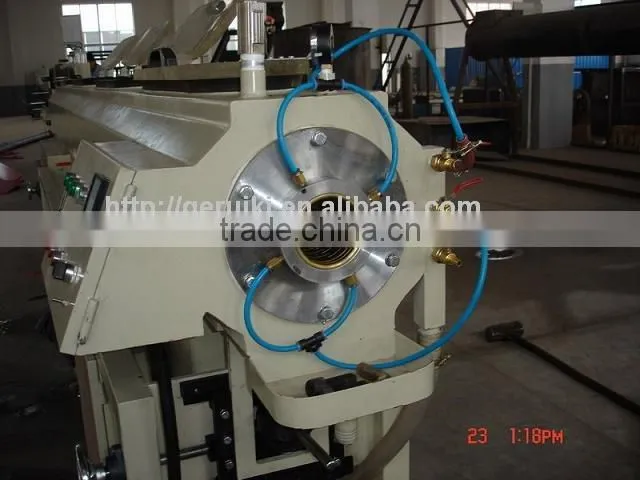

Vacuum tank
Water cooling tank

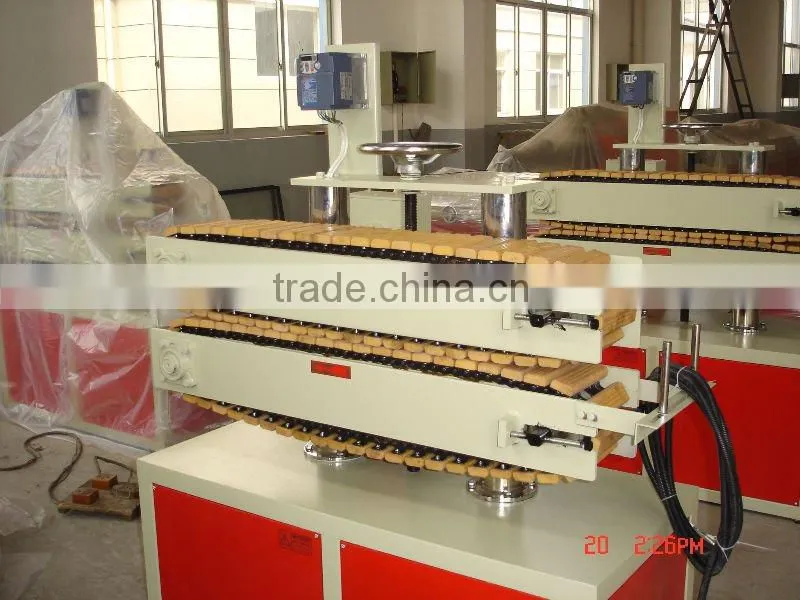

Haul off machine

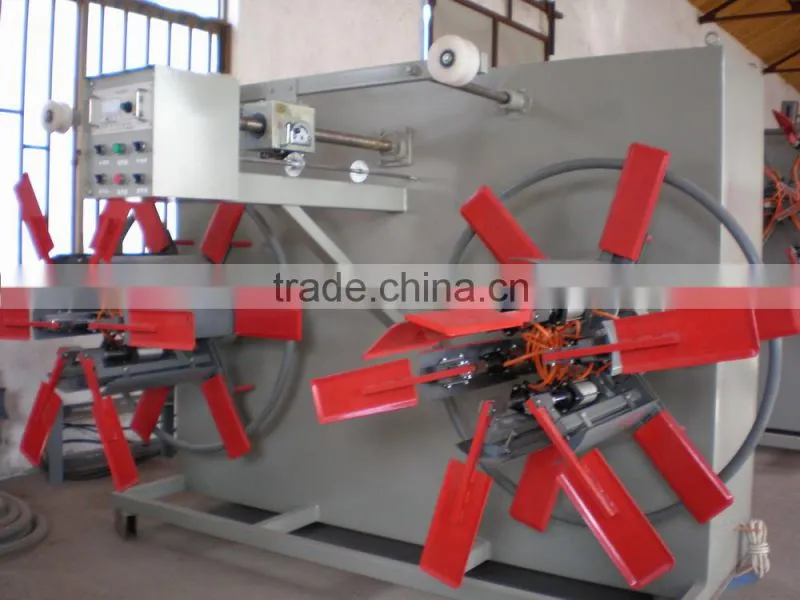

Double disk winding machine
Aslo assistant machine for waste material:

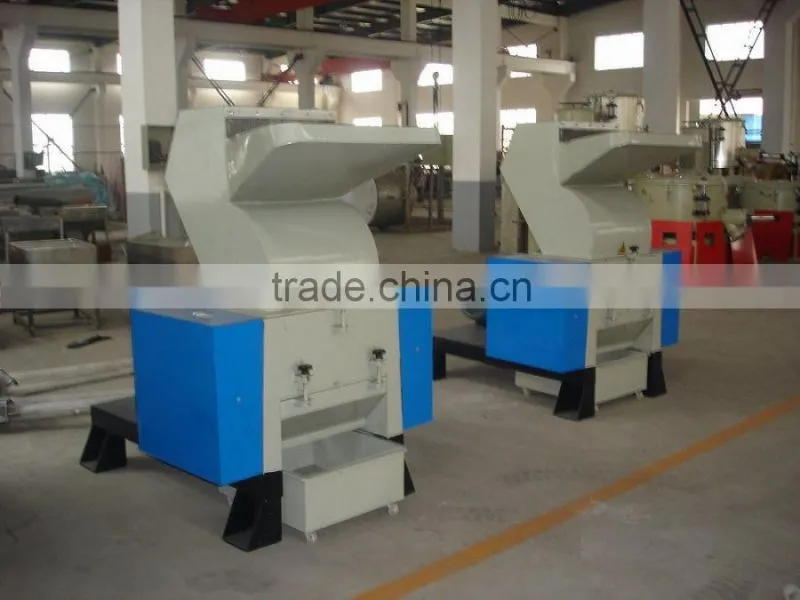

Plastic crusher
