Help CenterPvc Gutter Production Line/pipe Extrusion Machine
Related Products
Specifications
pvc gutter production line/pipe extrusion machine1. Diameter: 16-800mm
2. max output:1000kg/h
3. Max speed: 15m/min
pvc gutter production line/pipe extrusion machine
1. Diameter: 16-800mm
2. max output:1000kg/h
3. Max speed: 15m/min
Application:
pvc gutter production line/pipe extrusion machine /PVC Pipe making machine mainly used for producing pvc drainage pipes, pvc water supply pipes, pvc conduit pipes and so on.
The whole PVC pipe making machine include: Material loader, SJSZ series conical twin screw extruder, pipe mould, vacuum calibration tank, haul-off machine, cutter and stacker;
pipe printer and PVC Pipe Belling machine are optional as detail requirement.
SRL-Z series PVC Powder hot/cooling mixing unit, SWP series Plastic Crusher, SMF series Plastic Milling Machine/ Pulverizer are necessary auxiliary equipments.
Technical parameters:
Diameter scope (mm) |
16-40 Double |
20-63 Double |
20-63 |
50-160 |
63-200 |
160-315 |
315-630 |
560-800 |
Conical extruder |
SJSZ51/105 |
SJSZ65/132 |
SJSZ51/105 |
SJSZ65/132 |
SJSZ65/132 |
SJSZ80/156 |
SJSZ92/188 |
SJSZ105/216 |
Extruder Power(KW) |
18.5 AC |
37 AC |
18.5 AC |
37 AC |
37 AC |
55 AC |
110 DC |
160 DC |
Max. capacity (KG) |
120 |
250 |
120 |
250 |
250 |
350 |
800 |
1100 |
Max. Lineal speed (m/min..) |
10 |
15 |
15 |
8 |
3.5 |
3 |
1.2 |

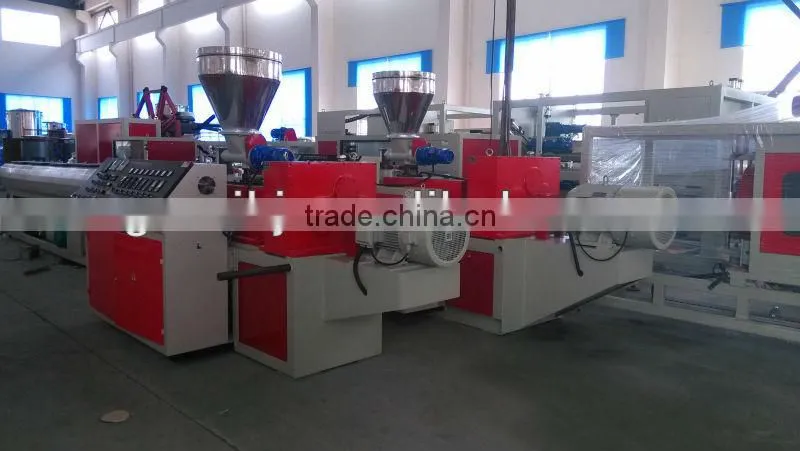

1. Cpnical twin screw extruder: it adopts conical double screw extruder for high extrusion pressure and good effect of plasticizing.
2. Electrical control system:

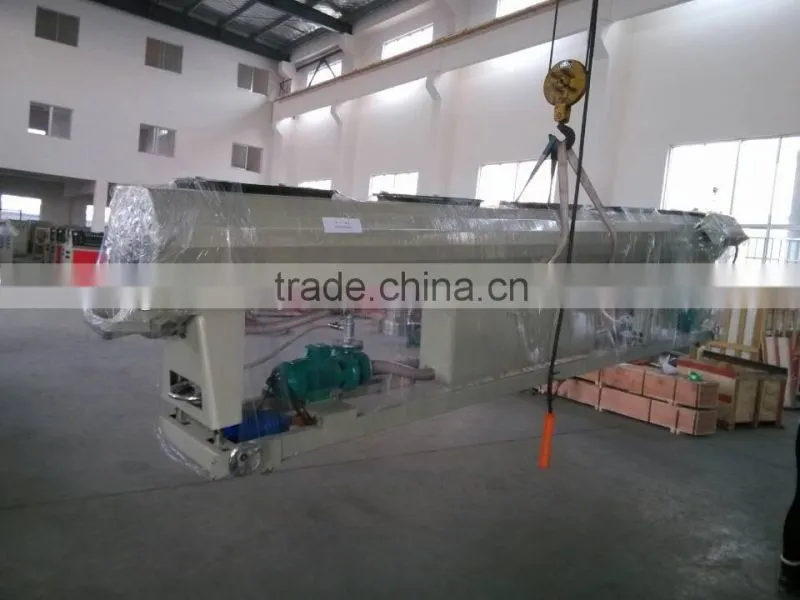

3. Vacuum calibration tank and spray cooling tank:
it adopts double chamber vacuum calibrating and spray cooling, with functions of water temperature aut omatic control and automatic water supply and discharge.

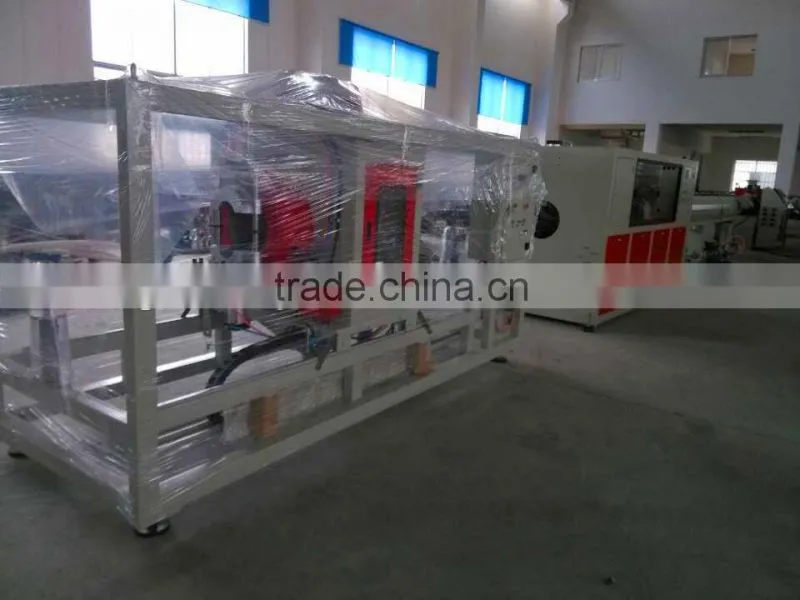

4. Haul-off machine: the pulling systerm adopts imported frequency regulator and three or four caterpillar clamping for large pulling force and the no-deformation of pipe.
5. Cutting machine: It adopts planetary cutting machine with the forced dust suction function.
Mixer unit
