Home > Products > VIBRATORY HAMMERS > FAV400 excavator mounted hydraulic vibrating pile hammer
FAV400 excavator mounted hydraulic vibrating pile hammer
- 10 Unit / Units per Month
- China port/Shanghai/Shenzhen
- T/T Credit Card
Product Details
| Condition: | New | Efficiency: | Frequency 1800mm vpm | Piling Speed(m/min): | 1800vpm |
| Place of Origin: | Hunan, China | Brand Name: | FAV | Model Number: | FAV 400 vibrating pile hammer, FAV 400 vibrating pile hammer |
| Weight: | 1280KG | Dimension(L*W*H): | 4470 mm*2230mm *2560mm | Certification: | CE and ISO9001 |
| After-sales Service Provided: | Overseas third-party support available |
Product Description
FAV400 excavator mounted hydraulic vibrating pile hammer
Hydraulic Vibratory Hammer is coupled with our FAV Hydraulic Powerpacks that are produced with innovations and improvements in mind for the benefit of end users.
OFFSHORE UNDERWATER PILE INSTALLATION
FAV Offshore Equipment
provides hydraulic Vibratory hammers for underwater piles installation. The hydraulic vibratory hammers are speciallyprepared for submerged operations together with other necessary back-up spare parts and tools. It has a group of experienced professionals whom are familiar with offshore underwater piles installations using hydraulic vibratoryhammers. In addition, FAE also provides services for refurbishment and overhaul of marine winches, fabrication of specialized steel structures for offshore platform etc.
What are FAE vibratory hammer models?
| Technical Data | FAV416L | FAV418 | FAV44-60 | FAV66-80 | FAV817 | FAV1412 | FAV400 | FAV600 | |
| Eccentric moment | kgm | 26 | 27 | 51 | 77 | 51 | 116 | 150 | 231 |
| Frequency | vpm | 1600 | 1800 | 1800 | 1600 | 1700 | 1400 | 1400 | 1400 |
| Centrifugal force | kn | 972 | 1040 | 1818 | 2168 | 1621 | 2501 | 3203 | 4830 |
| Amplitude(dual clamps) | mm | 25 | 19 | 30 | 30 | 30 | 30 | 40 | 42 |
| Max line pull for extracting | kn | 355 | 588 | 710 | 710 | 454 | 1335 | 2224 | 2224 |
| Weight(no clamp no hoses) | kg | 3360 | 4300 | 5215 | 6920 | 6015 | 11700 | 16500 | 22500 |
| Non vibrating weight | kg | 1315 | 1534 | 1815 | 2065 | 1815 | 4720 | 900 | 11500 |
| Height(without clamp ) | mm | 11820 | 2010 | 2130 | 2540 | 2560 | 3810 | 2650 | 2650 |
| Length(inclu.hose chute) | mm | 2830 | 2550 | 2680 | 2650 | 2680 | 2415 | 3050 | 4600 |
| Width | mm | 430 | 330 | 560 | 560 | 560 | 1040 | 660 | 900 |
| Throat width | mm | 355 | 320 | 360 | 360 | 310 | 815 | 660 | 900 |
| Hydraulic hose length | m | 30 | 30 | 45 | 45 | 45 | 45 | 45 | 45 |
| Hydraulic hose weight(w/o oil) | kg | 385 | 385 | 770 | 770 | 770 | 1020 | 1020 | 1020 |

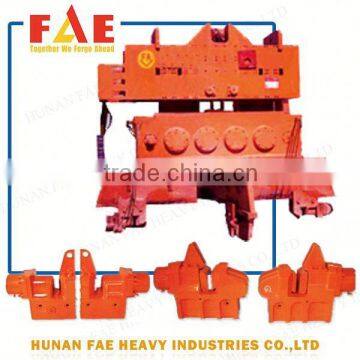

What are FAE vibratory hammer clamps?
What are FAE vibratory hammer its powerpack?
| FAV375 | FAV400 | FAV600 | FAV900 | FAV1200 | |
| kgm | John Deere 6135 | John Deere 6135 | John Deere 6135 | Caterpillar C18 ACERT | Caterpillar C27 ACERT |
| litres/min | 390 | 435 | 630 | 900 | 128 |
| bar | 340 | 340 | 340 | 340 | 340 |
| HP | 375 | 400 | 600 | 765 | 1050 |
| rpm | 2100 | 2100 | 2100 | 2100 | 2000 |
| rpm | 2100 | 2100 | 2100 | 2100 | 2000 |
| mm | 3600(L)×1500(B)×1800(H) | 3770(L)×1650(B) ×2200(H) | 3800(L)×1650(B) ×1900(H) | 7800(L)×2150(B) ×2540(H) | 4470(L)×2230(B) ×2560(H) |
| TON | 5 | 5 | 7 | 10 | 12.8 |
| Conceal exhaust silencer and 4 lifting eyes | |||||
| Noise reduction panels | |||||
| External fuel & hydraulic tank inspection allocations | |||||
CUSTOMIZED HYDRAULIC POWER PACK

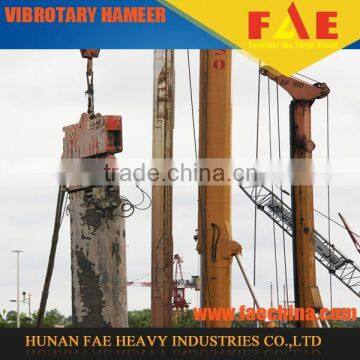

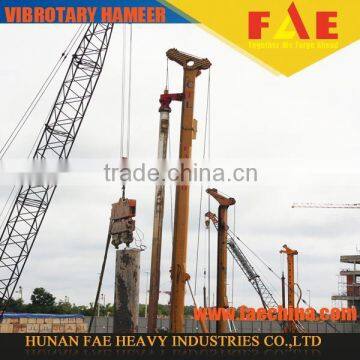

What are FAE vibrotary hammer job site?
Why Choose us?
Company View
Our Certifications
What are FAE business cooperation?
FAQ
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE vibratory hammer website for your further information:
WWW.FAECHINA.COM
Contact Us
- Hunan Fae Heavy Industries Co., Ltd.
- Contact nameEason wong
- Phone86-0731-85718177
- AddressJinzhou New Industries District,Ningxiang,Changsha,Hunan Province,China Changsha,Hunan
-
