Specifications
lab twin screw extruder/mini extruder1. CE&ISO certification
2. high plasitify with low consumpt
3. Turn-key project

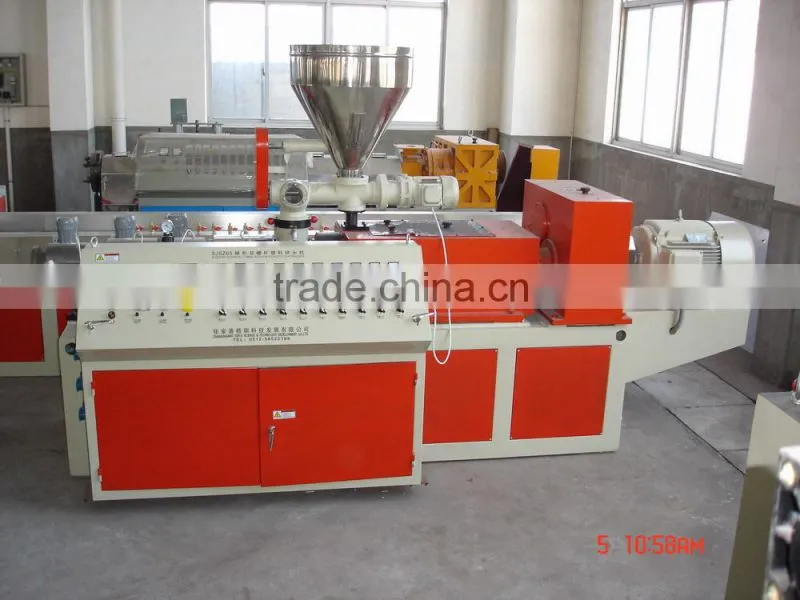

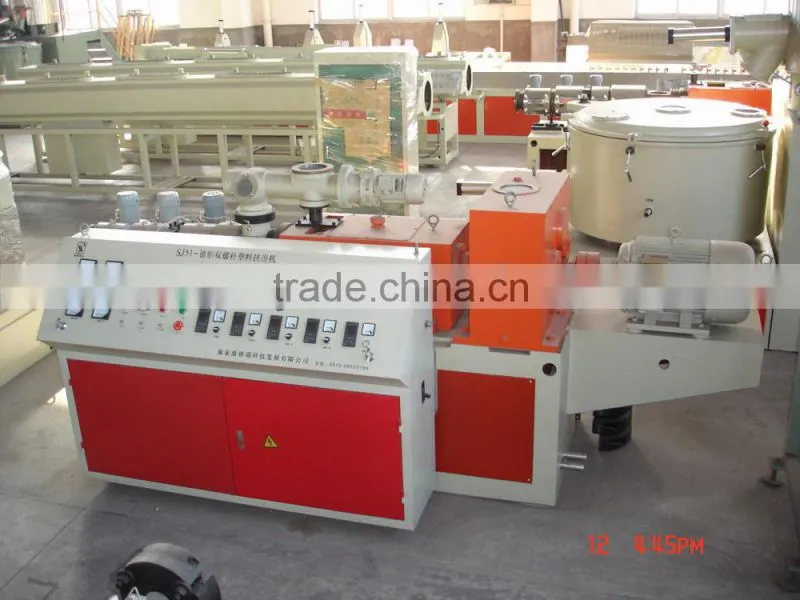

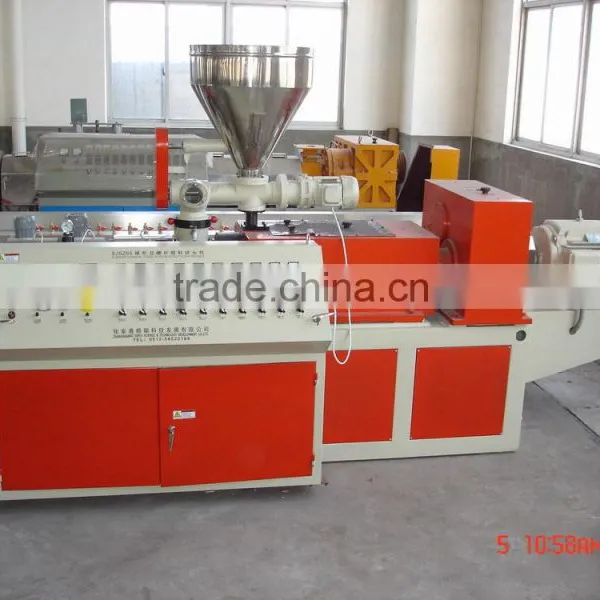

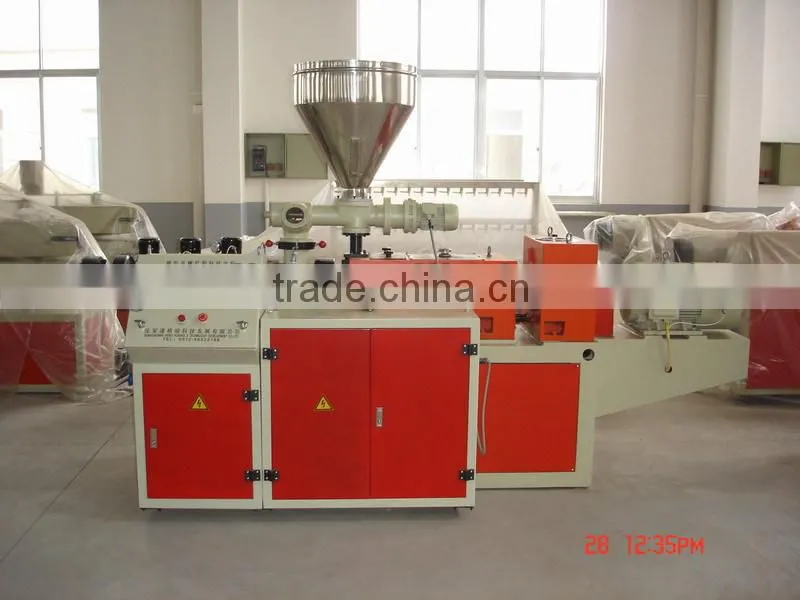

lab twin screw extruder/mini extruder
1. CE&ISO certification
2. high plasitify with low consumpt
3. Turn-key project
Features And Application:
The series extruders with appropriate die-mould and auxiliary machine can directly convert thermoplastic especial PVC power into pipe, plate sheet, film and profile, and also provide function of modifying and pelleting. The extruders are derived by A.C motor with a thruster to stepless regulate. It is also equipped with the over-load protection and stoppage alarming system. The screw’s core and the outside of barrel is cooled by circulation of oil, it includes vacuum venting and forced feeding.
Parameter:
|
Model |
SJSZ-45 |
SJSZ-51 |
SJSZ-55 |
SJSZ-65 |
SJSZ-80 |
SJSZ-92 |
|
Screw diameter(mm) |
45/90 |
51/105 |
55/110 |
65/132 |
80/156 |
92/188 |
|
Max.speed of screw |
45 |
45 |
45 |
45 |
34.7 |
34.7 |
|
Main motor(kw) |
15 |
18.5 |
22 |
30/37 |
55 |
110 |
|
Capacity(kg/h) |
110 |
125 |
150 |
260 |
400 |
800 |
|
Center height(mm) |
1000 |
1000 |
1000 |
1000 |
1100 |
1200 |
|
Net weight(kg) |
3000 |
3000 |
3500 |
4000 |
5500 |
8000 |
|
Dimension(m) |
3.3x1.2x2.1 |
3.6x1.1x2.1 |
3.6x1.1x2.1 |
4.2x1.5x2.4 |
4.7x1.5x2.4 |
6x1.6x2.5 |
