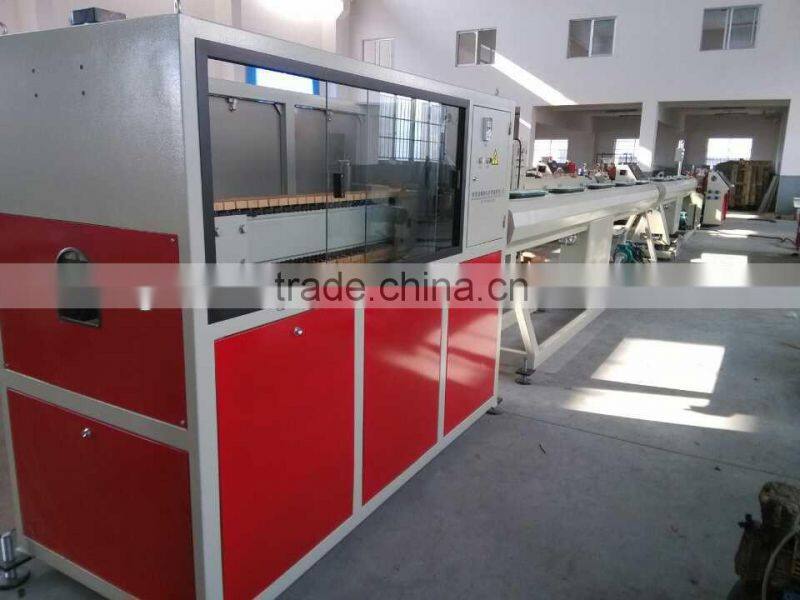

High Quality Ppr Pipe Making Machine

Specifications

  high quality ppr pipe making machine

1.Dia.20-110mm.Max:16m/min
2.Capacity:120-250kg/h
3. CE&ISO
4. turn-key project

high quality ppr pipe making machine is applied for manufacturing PP-R pipes with different pressure class needed in field of cold, hot and drinking water etc..

Features :

a) Man-machine operation interface, high automation level .
b) The adoption of professional screw ensures good plastification.
c) Adopts compound screw type head to clear memory function effectively.
d) Vacuum forming, constant temperature control to remove stress of pipe material .
e) Adopts common extruding head and adds marking color line for pipe material.

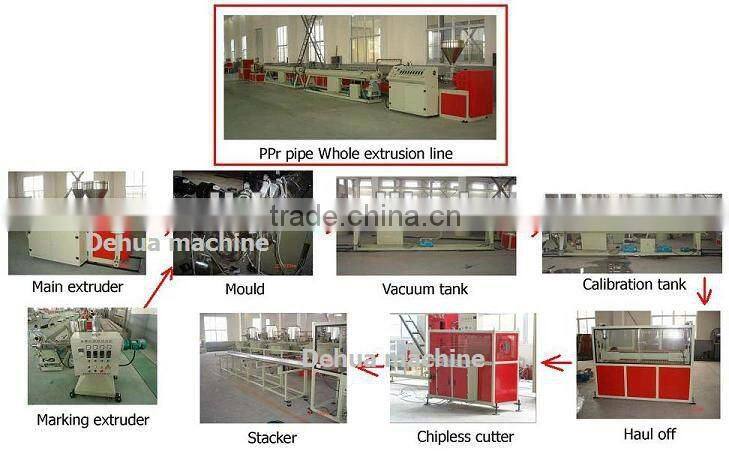

The complete extrusion consists of following items:

l. Single screw extruder

2.Co- extruder: to manufacture marking multi-layers of pipe

3. Die head

4. Vacuum tank: due to diameter, it can be designing of single, double vacuum chambers

5. Cooling tank: due to diameter, the numbers of cooling tanks can be one or two

6. Haul-offs: due to diameter, it can be designing of double or three caterpillars

7.Cutter: no scraps cutter.

8. stacker
