plastic vacuum loader machine1.powder/granules laoded to extruder
2.Easy to operate
3.CE&ISO

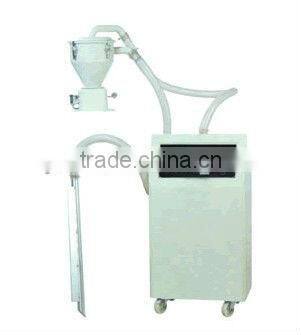

plastic vacuum loader machine
1.powder laoder to extruder
2.Easy to operate
3.CE&ISO
auto plastic vacuum loader machine can be used with all kinds of extruders, It can automatically carry plastic powder or granules into the hopper of extruding machine by means of a controller of material level, it can save your labour, and realize the effect of safety and reliability.
Features:
1. Computerized full-automatic program;
2. Auto alarm for overload and materical shortage;
3. Stainless steel hopper, easy to clean;
4. Isolated design of main unit and barrel, safe and simple;
5. Separted filter device, easy to remove dust;
6. With reverse auto dust cleaning function
Model |
700G |
800G |
800G2 |
|
Motor |
Type |
Carbon brush |
Induction |
Induction |
Specification |
1kw, 1phase |
1.1kw, 3phase |
1.5kw, 3phase |
|
Conveying capacity (kg/h) |
310 |
450 |
590 |
|
Loading distance (m) |
4 |
4 |
5 |
|
Static wind pressure (mmH2O) |
1550 |
2100 |
2900 |
|
Reservoir volume (L) |
6 |
6 |
10 |
|
Conveying tube inner dia (mm) |
38 |
38 |
38 |
|
Specification of the attached hose (mm) |
3.5m*2pcs |
4m*2pcs |
5m*2pcs |
|
Dimensions (cm) |
Main frame |
37*30*56 |
42*38*64 |
50*40*72 |
Hopper |
28*34*43 |
45*32*45 |
45*32*45 |
|
Net Weight (kg) |
20 |
53 |
76 |
|
