Specifications
Iridium SBD Tracker1.Iridium SBD/GPRS dual communication
2.Full Coverage in Global No Blind Area
3.High Stable Low Cost

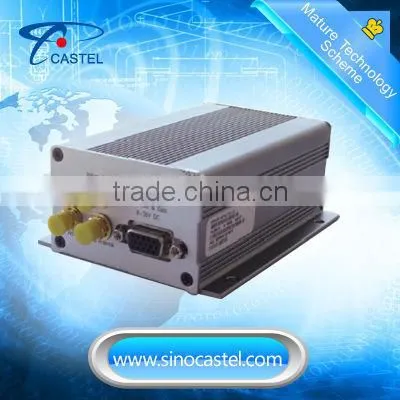

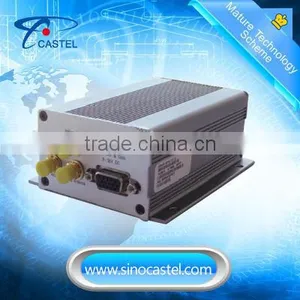

[ Iridium SBD GPS Tracker for Vessel Tracking Vehicle Monitoring ]
Iridium & GSM/GPRS Tracking System SAT802 includes following components: SAT802 host, power supply & data cable group, Iridium
antenna, GSM antenna, GPS antenna, installation parts (contains fuse with base, mounting screw, Velcro), user manual (Including
warranty card).
----------------------------------------------------------- Features --------------------------------------------------------
· Dual mode communication: iridium SBD and GPRS
· Communication channel selection: auto choosing communication channel, GPRS is top priority
· Supports transparent two-way data transmission
· Full coverage in global, no blind area
· Very high reliability and relatively low in communication cost
---------------------------------------------------------- Parameters ------------------------------------------------------
· Working power: 9 to 33V DC
· Power consumption: 1W
· Transmitting power: <1.75W
· Communication interface: RS232, 9600bps baud rate 8N1 (customizable)
· Uplink data: maximum of 340 characters
· Downlink data: maximum of 270 characters
· Transmission delay: 10 to 60 seconds
· Dimensions (L x H x W): 109 x 46 x 68mm
---------------------------------------------------------- Applications -------------------------------------------------------
District:
Oceans, mountains, deserts, isolated islands, glaciers, polar, and other remote area without communication network.
Application:
Oil exploration, industrial control, geological surveying, engineering surveying, scientific exploration, marine/terrestrial
environmental monitoring, disaster monitoring and forecasting, marine emergency rescue, marine safety alarm system/Ship
Security Alert System (SSAS), vehicle /vessels positioning and tracking, rescue and disaster relief, emergencies
handling/communications/rescue command , etc
