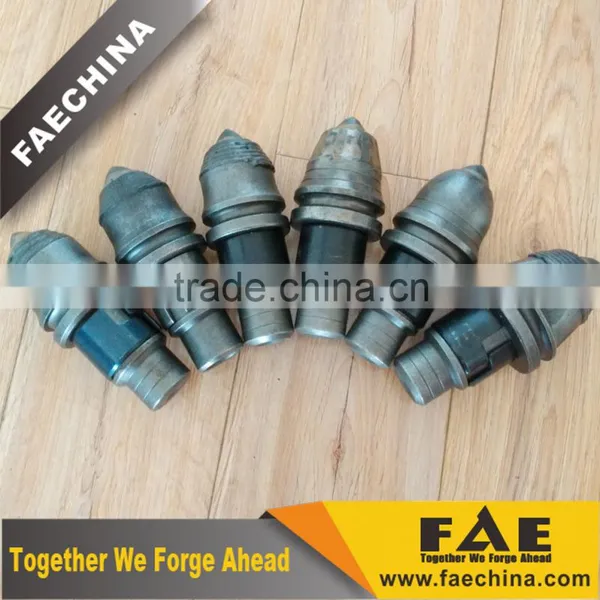

FAE B47K22-H Hard Rock Drlling Teeth

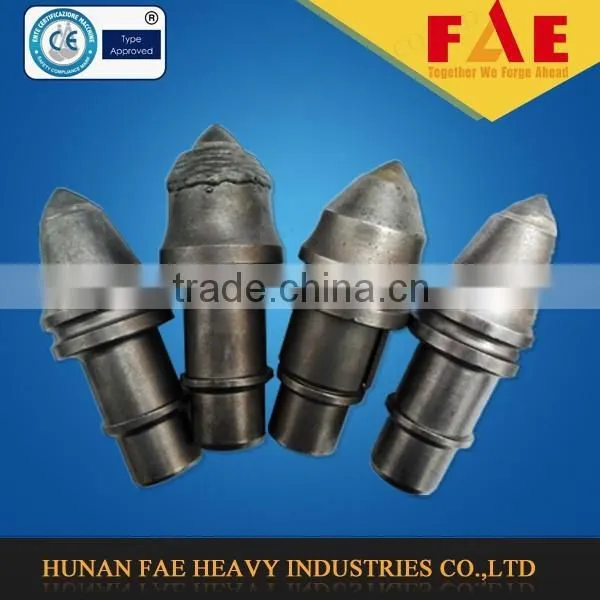

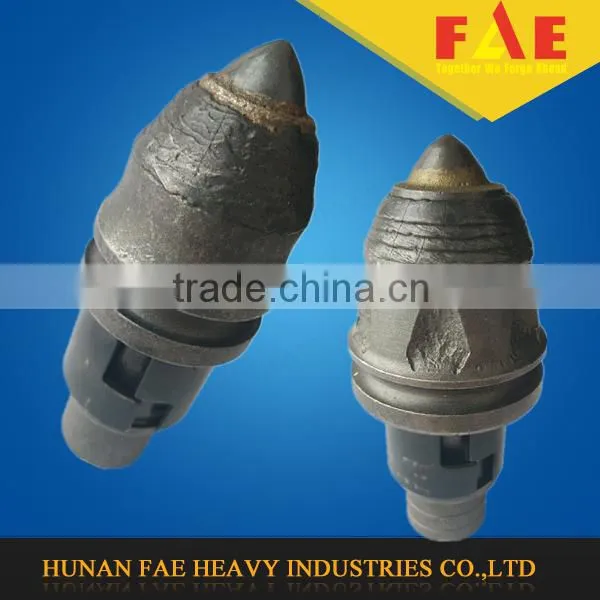

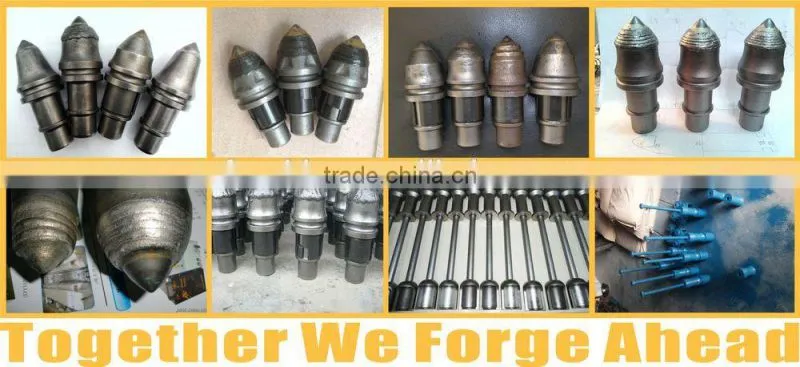

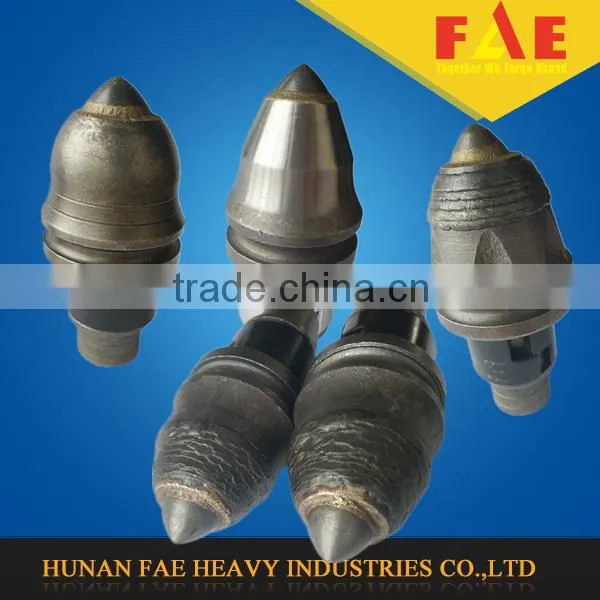

Bullet teeth

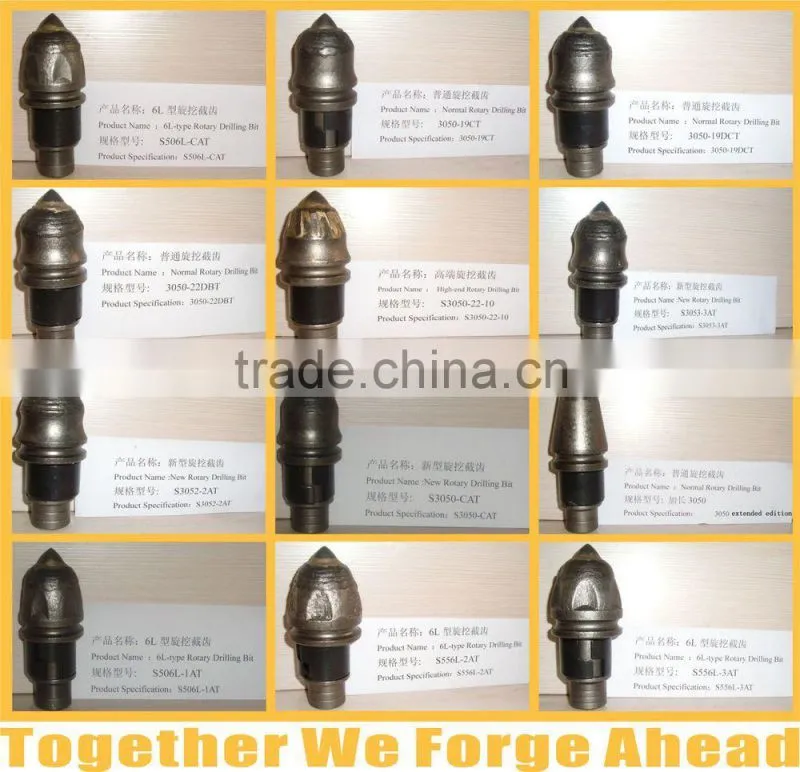

1) drilling teeth
Types as below:

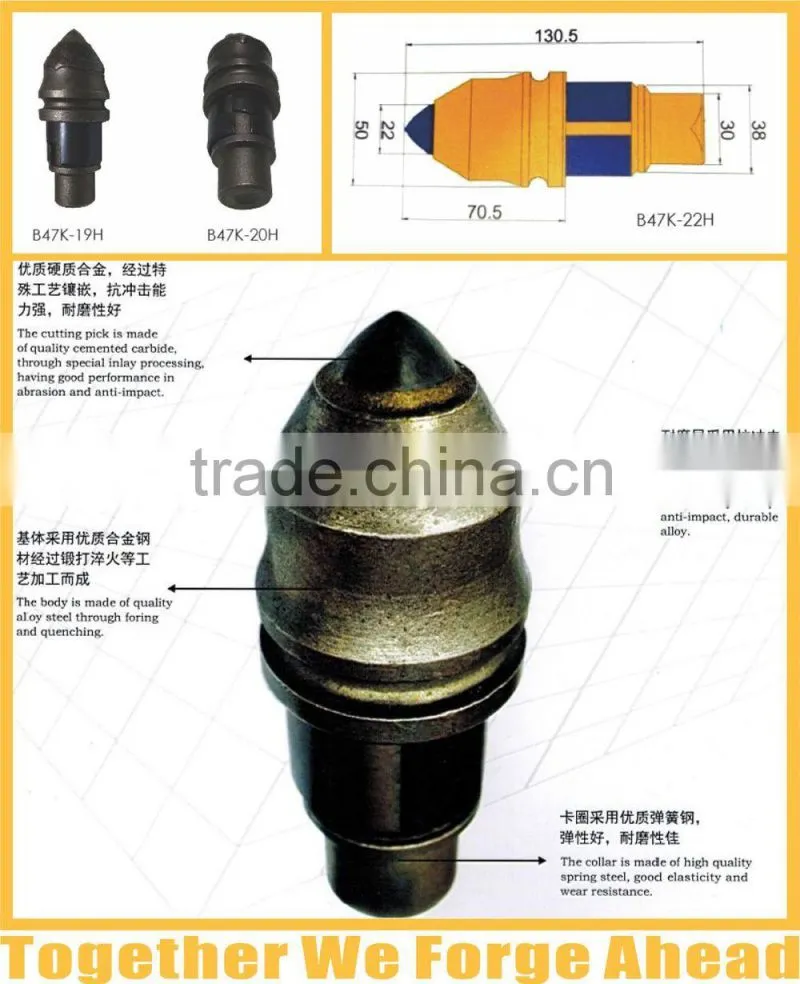

B47K-17H, B47K-19H, B47K-20H, B47K-22H, 3050,3060,3065,customers’ requirement etc.
Material details as below:
High Management Alloy Steel Body, made of 42CrMo, heat treatment with 40-44HRC hardness, forged and anti-rust treatment, has high toughness and wearable character.
Our products are very popular in worldwide for their high quality and best price. Welcome to inquiry from us!
Body Material: High Manganese Alloy steel, 42CrMo
Hardness: 40-44HRC
Weight: 2.4kg/pc
Production capacity:4000pcs/week
Packing: mainly foam, plywood and customers’ requirement

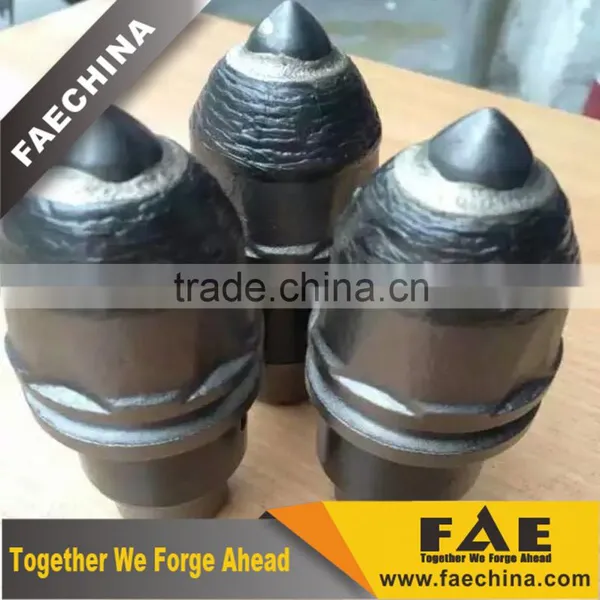

bullet teeth b47k22h

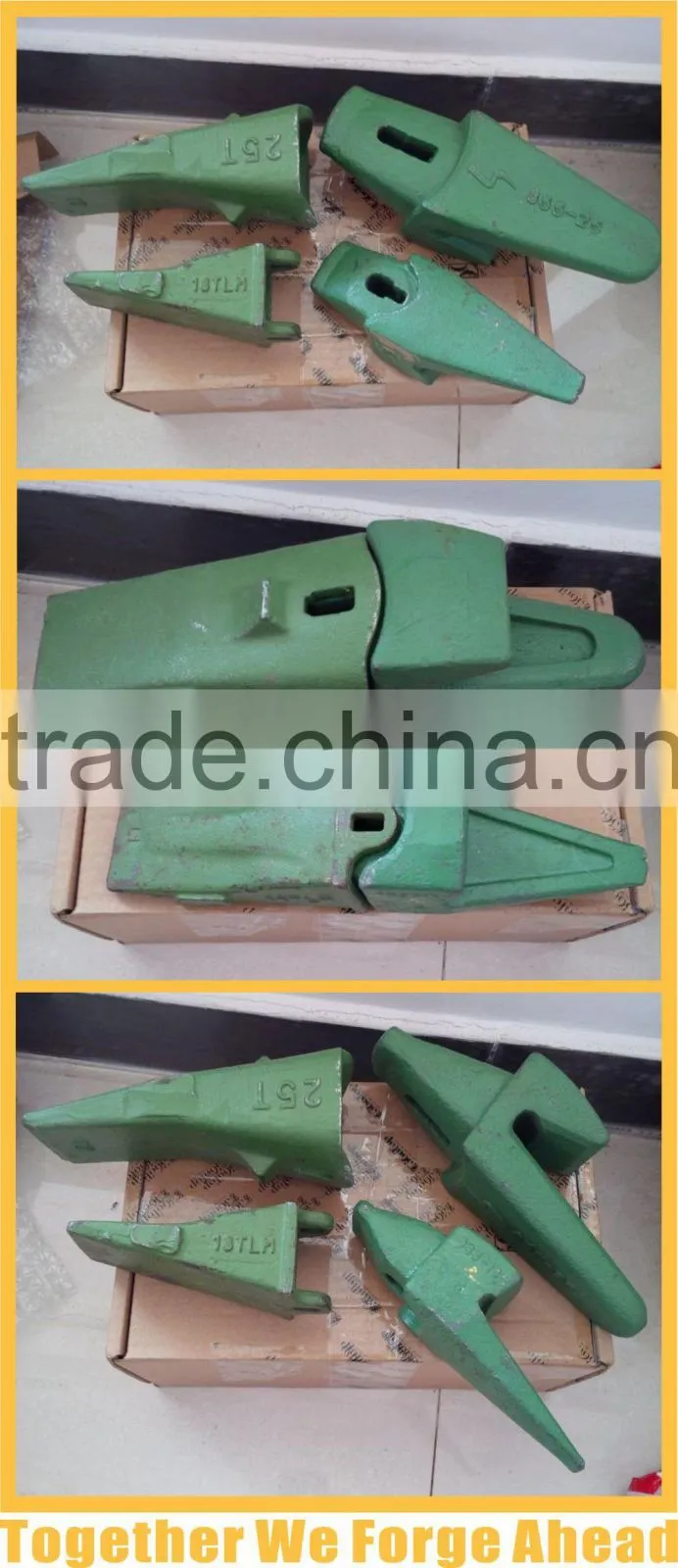

Soil Drilling Teeth Parameters:
| Part No. | Description | Unit Weight (Kg) |
| 25T | Soil Tooth | 2.3 |
| 25VIP | Chisel Soil Tooth | 2.8 |
| 25HD | Heavy Duty Soil Tooth | 2.6 |
| 855-25 | Holder | 3.3 |
| 25PN/LK | Pin/Lock | 0.3 |
| 16R55 | Soil Tooth | 0.8 |
| C355 | Holder | 3.2 |
| 35S | Soil Tooth | 4.5 |
| 3803-35 | Holder | 7.3 |
| 35PN/LK | Pin/Lock | 0.5 |
| 4K34 | Soil Tooth | 2.5 |
| P18 | Holder | 3.4 |
| 4K34PN/LK | Pin/Lock | 0.3 |
| 18TL | Soil Tooth | 1.2 |
| 18HD | Heavy Duty Soil Tooth | 1.3 |
| 833-18 | Holder | 1.8 |
| 18PN/LK | Pin/Lock | 0.2 |

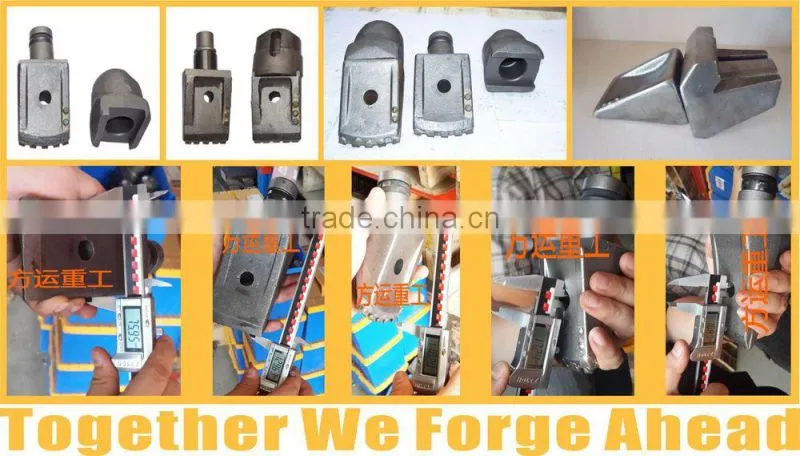

Rock Drilling Teeth Parameters:
| Part No. | Description | Unit Weight (Kg) |
| B47K17.5H | Rock Drilling Bit | 1.2 |
| B47K19.5H | Rock Drilling Bit | 1.2 |
| B47K22H | Rock Drilling Bit | 1.2 |
| B47K17.5C/60 | Rock Drilling Bit | 1.5 |
| B43H | Holder | 2.2 |
| B85 | Holder | 2.2 |
| B85/2 | Holder with Carbide tips | 2.4 |
| C31HD | Rock Drilling Bit | 0.5 |
| C30 | Holder | 1.2 |

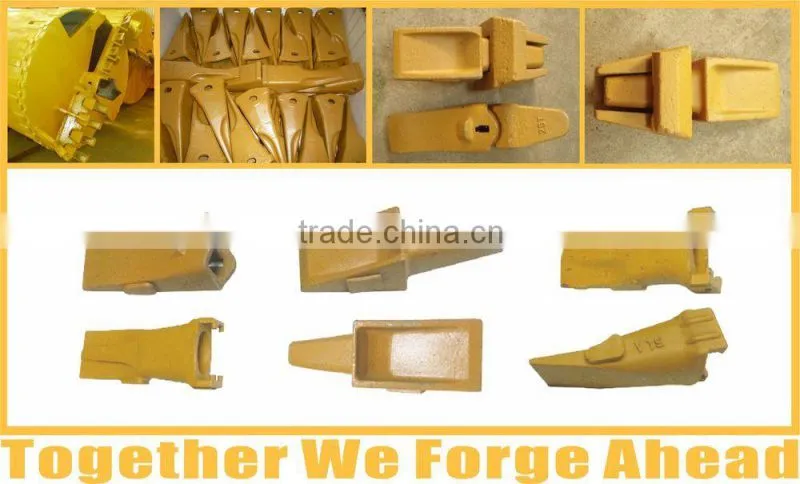

2) Bucket teeth
Types as below:
V19, V20, 25T,BF/FZ70 and Bauer tooth..
Material details as below:
High Management Alloy steel Body, made of 42CrMo, heat treatment with 40-44HRC hardness, forged and Anti-rust treatment has high toughness and wearable character.These machine parts are widely used on foundation drilling, piling,, Trenching, Tunneling,, Road planning. They can suit for all kinds of drilling machines. We also can do Custom-made.
Body Material: 42CrMo
Hardness: 40-44HRC
Weight: 2.5kg/pc
Production capacity: 4000pcs/week
Packing: mainly foam, plywood and customers’ requirement
Drill bits
Roller bits are mainly divided into five types:
1- Tricone bits
2- PDC bits
3- Drag bits
4- Hole opener, reamer
5- Cone

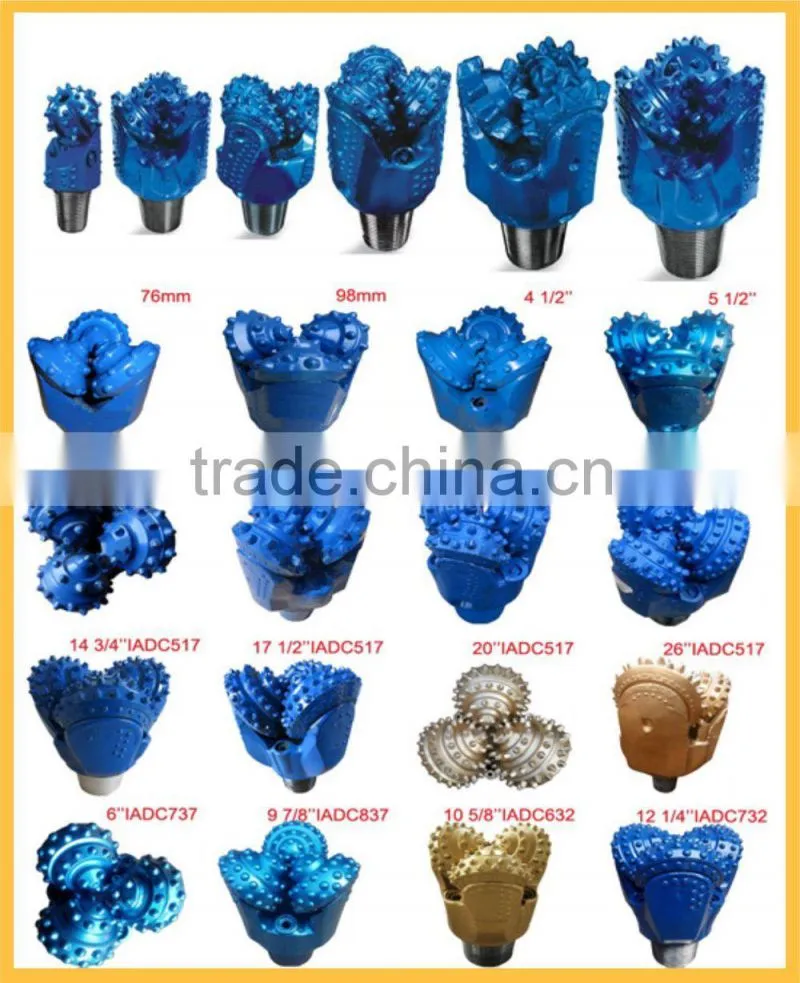

Tricone bits
1) Type: milled tooth bit and TCI bit
2) Size :3”-26”(76mm-660.4mm)
3) IADC: standard IADC including 111 to 737
4) Bearing sealed: metal sealed(HJ), rubber sealed(HA), not sealed(W)
5) Color: blue, golden or as customers’ requirement. Formation: soft, soft to medium hard, medium hard, hard, very hard
tricone roller bit
BIT TYPE |
IADC CODE |
WEIGHT IN BIT (KN/MM) |
ROTARY SPEED(R/MIN) |
FA117 |
117 |
0.3-0.9 |
300~80 |
FA127 |
127 |
0.9-0.9 |
300~80 |
FA217 |
217 |
0.35-0.9 |
300~80 |
FA325 |
325 |
0.35-0.9 |
290~70 |
FA437 |
437 |
0.35-0.9 |
280~60 |
FA517 |
517 |
0.35-1.05 |
240~50 |
FA537 |
537 |
0.5-1.05 |
220~40 |
FA617 |
617 |
0.5-1.140 |
220~40 |
FA637 |
637 |
0.5-1.140 |
200V40 |
What FAE could offer?
We can supply all kinds of:
-coal mining bits;
-welding bar;
-roller bits;
-clay teeth with holders;
-bullet bit with holders;
-flat cutter teeth with sleeves and holders;
which have:
-high strength;
-long life features;
-high wear resistance;
Steel body is made by:
-material 42CrMo;
-heat treatment with 40-44HRC hardness;
-high toughness and wearable character;
Tip is made by:
-material tungsten carbide;
-Suitable Grade Selected;
-tip via forging, welding, heat treatment;
Widely using on foundation drilling tools, excavation machines,shearers, continuous mines etc.
Could manufacture according to your drawing or samples.
What are FAE rock drilling teeth?
What are FAE clay drill teeth?
What is FAE packing and delivery of drilling teeth?
Why Choose us?
What company is FAE?
With headquarter situated in Changsha, China, FAE Co.,Ltd is a leading Chinese manufacture and exporter specialized in foundation equipment, tools and accessories.
From 2007, FAE CHINA founders had been working closely with majoSingapore foundation manufacturers and the well_known FAE R&D Singapore institute by introducing European standard drilling rigs technique in China,concurrently sourcing parts and accessories for the rigs.
Our Certifications
What are FAE business cooperation?
FAQ
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
