Popular construction machinery part tungsten carbide bullet teeth
What FAE Could offer?

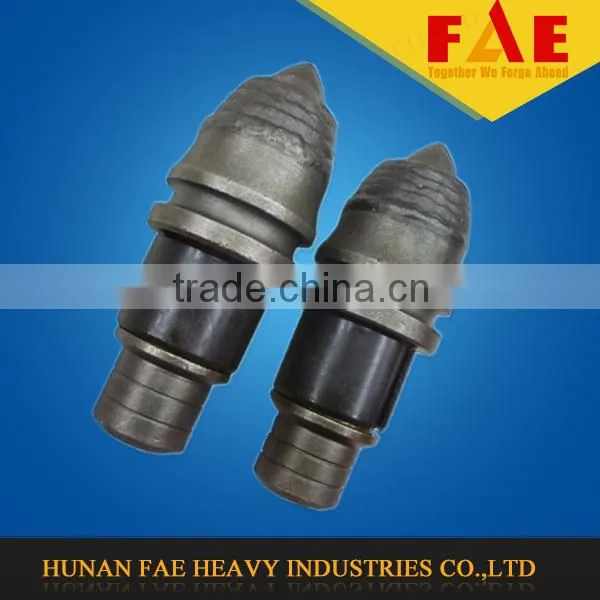

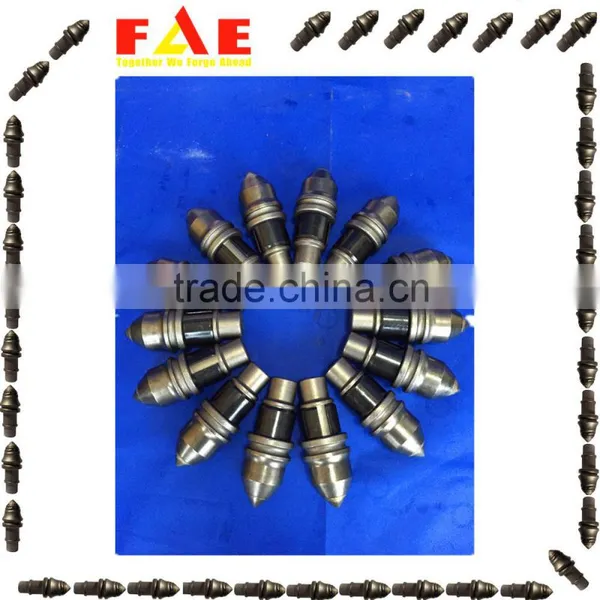

bullet teeth
Cutter picks
Types as below:
B47K-17H, B47K-19H, B47K-20H, B47K-22H, 3050,3060,3065,customers’ requirement etc.
Material details as below:
High Management Alloy Steel Body, made of 42CrMo, heat treatment with 40-44HRC hardness, forged and anti-rust treatment, has high toughness and wearable character.
Our products are very popular in worldwide for their high quality and best price. Welcome to inquiry from us!
Body Material: High Manganese Alloy steel, 42CrMo
Hardness: 40-44HRC
Weight: 2.4kg/pc
Production capacity:4000pcs/week
Packing: mainly foam, plywood and customers’ requirement
What is the specifications of bullet teeth?
Soil Drilling Teeth Parameters:
| Part No. | Description | Unit Weight (Kg) |
| 25T | Soil Tooth | 2.3 |
| 25VIP | Chisel Soil Tooth | 2.8 |
| 25HD | Heavy Duty Soil Tooth | 2.6 |
| 855-25 | Holder | 3.3 |
| 25PN/LK | Pin/Lock | 0.3 |
| 16R55 | Soil Tooth | 0.8 |
| C355 | Holder | 3.2 |
| 35S | Soil Tooth | 4.5 |
| 3803-35 | Holder | 7.3 |
| 35PN/LK | Pin/Lock | 0.5 |
| 4K34 | Soil Tooth | 2.5 |
| P18 | Holder | 3.4 |
| 4K34PN/LK | Pin/Lock | 0.3 |
| 18TL | Soil Tooth | 1.2 |
| 18HD | Heavy Duty Soil Tooth | 1.3 |
| 833-18 | Holder | 1.8 |
| 18PN/LK | Pin/Lock | 0.2 |
What is the specifications of bullet teeth?
Rock Bullet Teeth Parameters:
| Part No. | Description | Unit Weight (Kg) |
| B47K17.5H | Rock Drilling Bit | 1.2 |
| B47K19.5H | Rock Drilling Bit | 1.2 |
| B47K22H | Rock Drilling Bit | 1.2 |
| B47K17.5C/60 | Rock Drilling Bit | 1.5 |
| B43H | Holder | 2.2 |
| B85 | Holder | 2.2 |
| B85/2 | Holder with Carbide tips | 2.4 |
| C31HD | Rock Drilling Bit | 0.5 |
| C30 | Holder | 1.2 |

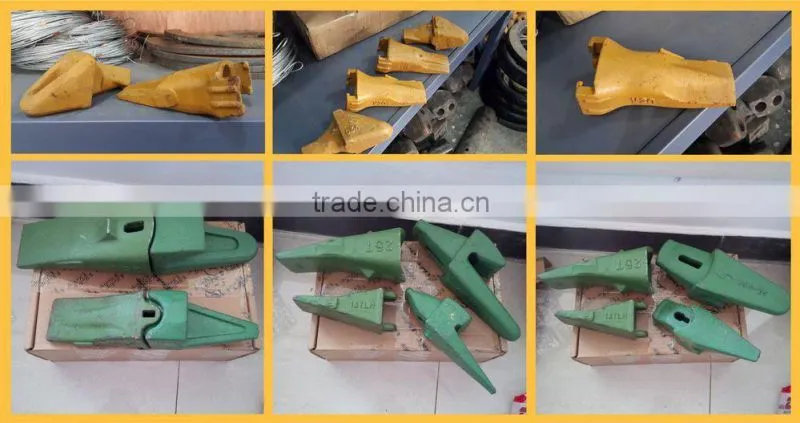

Bucket teeth
Types as below:
V19, V20, 25T,BF/FZ70 and Bauer tooth..
Material details as below:
High Management Alloy steel Body, made of 42CrMo, heat treatment with 40-44HRC hardness, forged and Anti-rust treatment has high toughness and wearable character.These machine parts are widely used on foundation drilling, piling,, Trenching, Tunneling,, Road planning. They can suit for all kinds of drilling machines. We also can do Custom-made.
Body Material: 42CrMo
Hardness: 40-44HRC
Weight: 2.5kg/pc
Production capacity: 4000pcs/week
Packing: mainly foam, plywood and customers’ requirement
Drill bits
Roller bits are mainly divided into five types:
1- Tricone bits
2- PDC bits
3- Drag bits
4- Hole opener, reamer
5- Cone

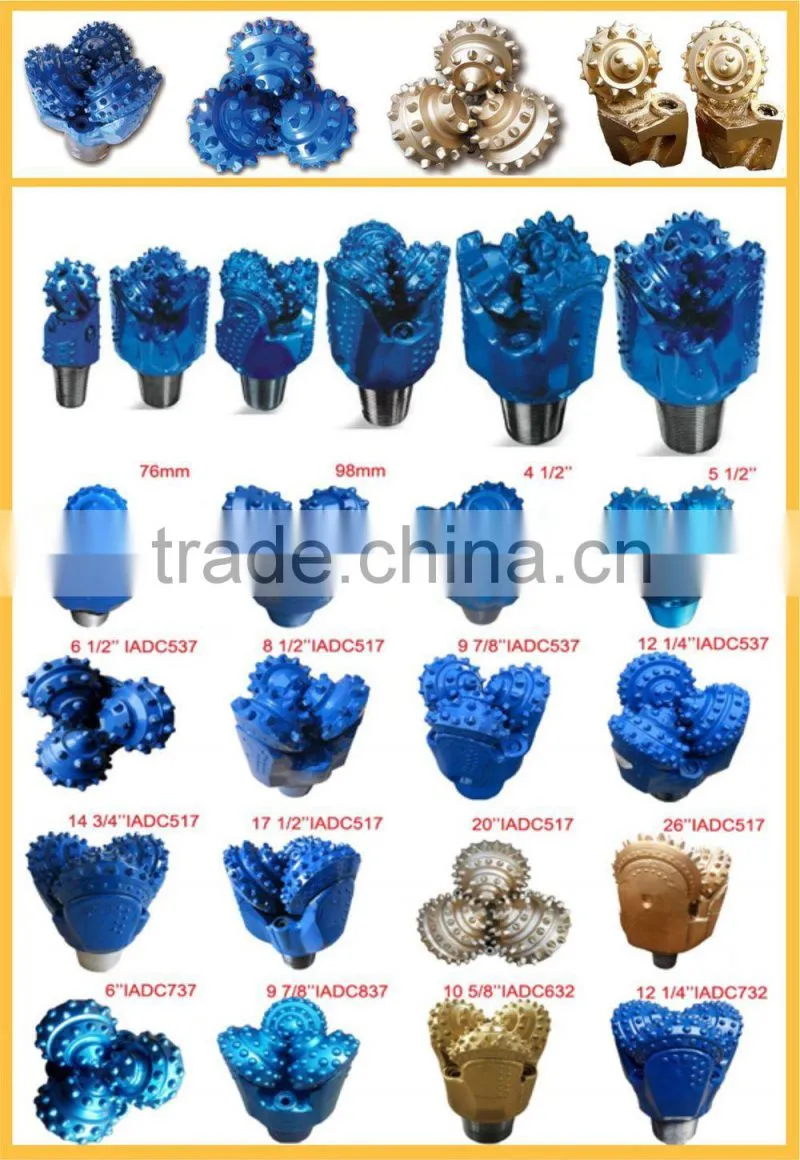

Tricone bits
1) Type: milled tooth bit and TCI bit
2) Size :3”-26”(76mm-660.4mm)
3) IADC: standard IADC including 111 to 737
4) Bearing sealed: metal sealed(HJ), rubber sealed(HA), not sealed(W)
5) Color: blue, golden or as customers’ requirement. Formation: soft, soft to medium hard, medium hard, hard, very hard
What is the specifications of tricone bit?
Tricone Bit Specifications
BIT TYPE |
IADC CODE |
WEIGHT IN BIT (KN/MM) |
ROTARY SPEED(R/MIN) |
FA117 |
117 |
0.3-0.9 |
300~80 |
FA127 |
127 |
0.9-0.9 |
300~80 |
FA217 |
217 |
0.35-0.9 |
300~80 |
FA325 |
325 |
0.35-0.9 |
290~70 |
FA437 |
437 |
0.35-0.9 |
280~60 |
FA517 |
517 |
0.35-1.05 |
240~50 |
FA537 |
537 |
0.5-1.05 |
220~40 |
FA617 |
617 |
0.5-1.140 |
220~40 |
FA637 |
637 |
0.5-1.140 |
200V40 |

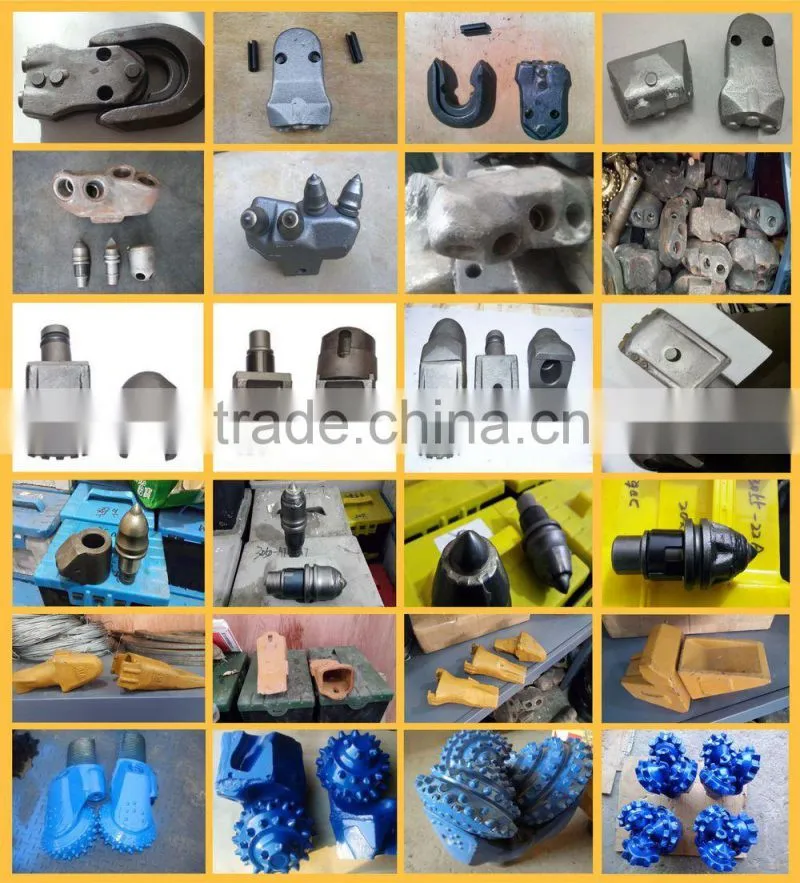

What FAE could offer?
We can supply all kinds of:
-coal mining bits;
-welding bar;
-roller bits;
-clay teeth with holders;
-bullet bit with holders;
-flat cutter teeth with sleeves and holders;
which have:
-high strength;
-long life features;
-high wear resistance;
Steel body is made by:
-material 42CrMo;
-heat treatment with 40-44HRC hardness;
-high toughness and wearable character;
Tip is made by:
-material tungsten carbide;
-Suitable Grade Selected;
-tip via forging, welding, heat treatment;

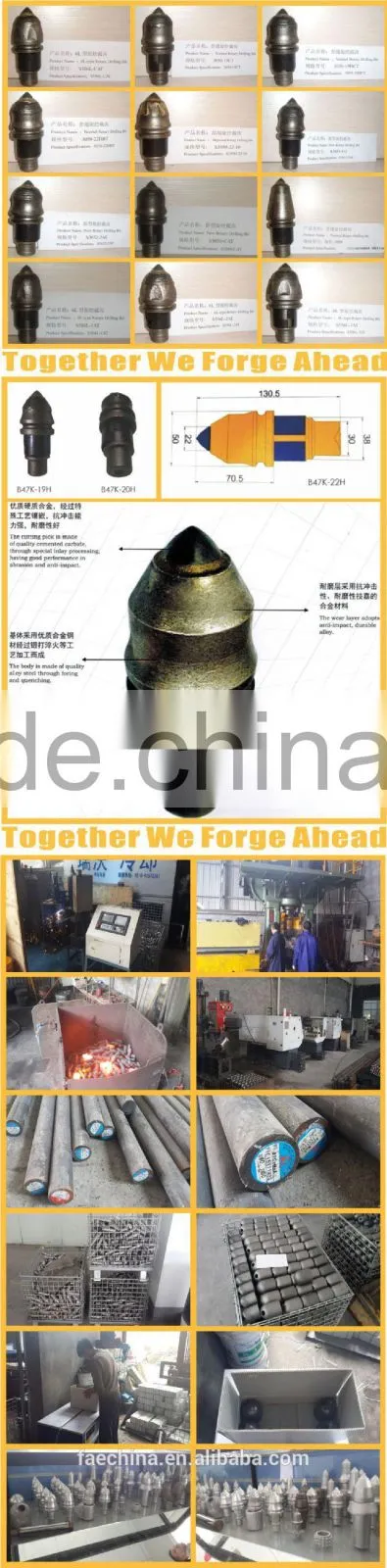

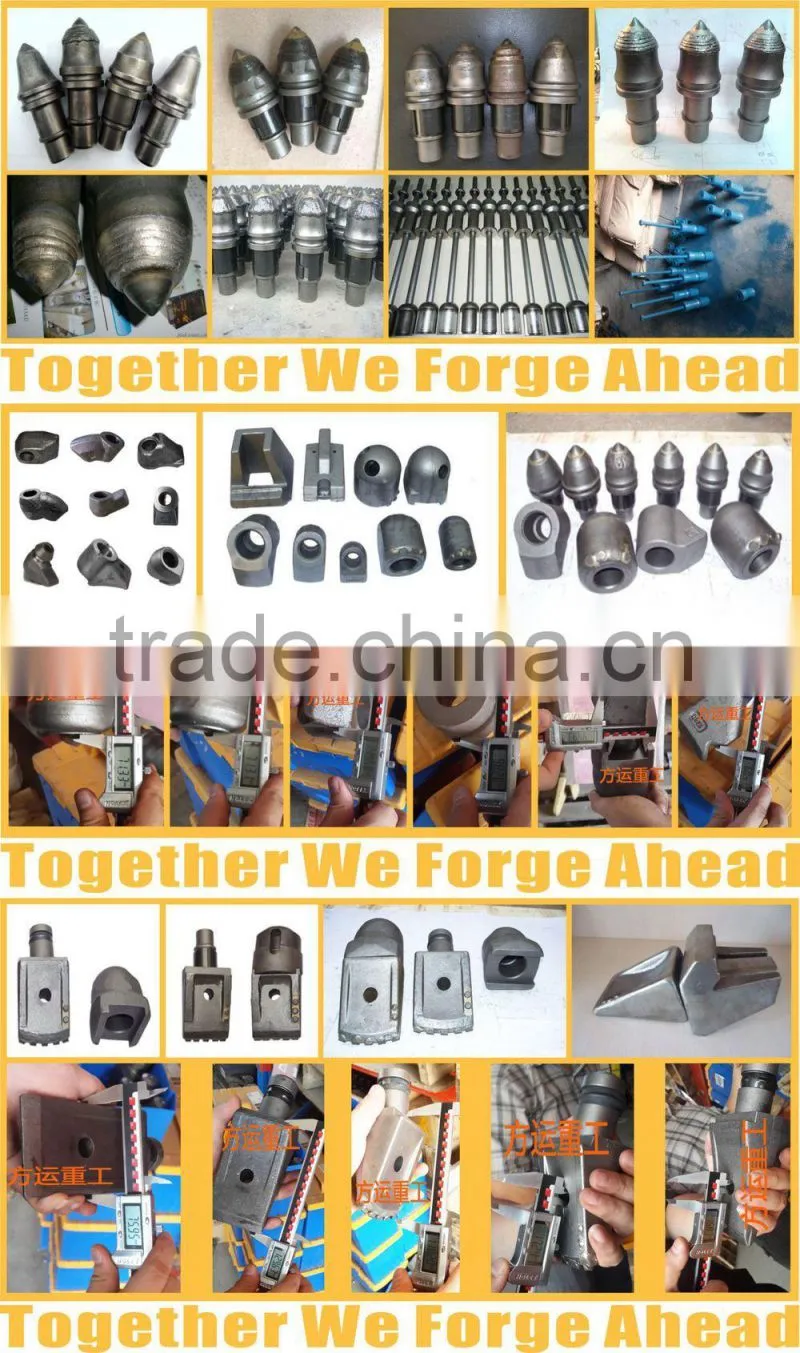

What are FAE bullet teeth?
What are FAE clay drill teeth?

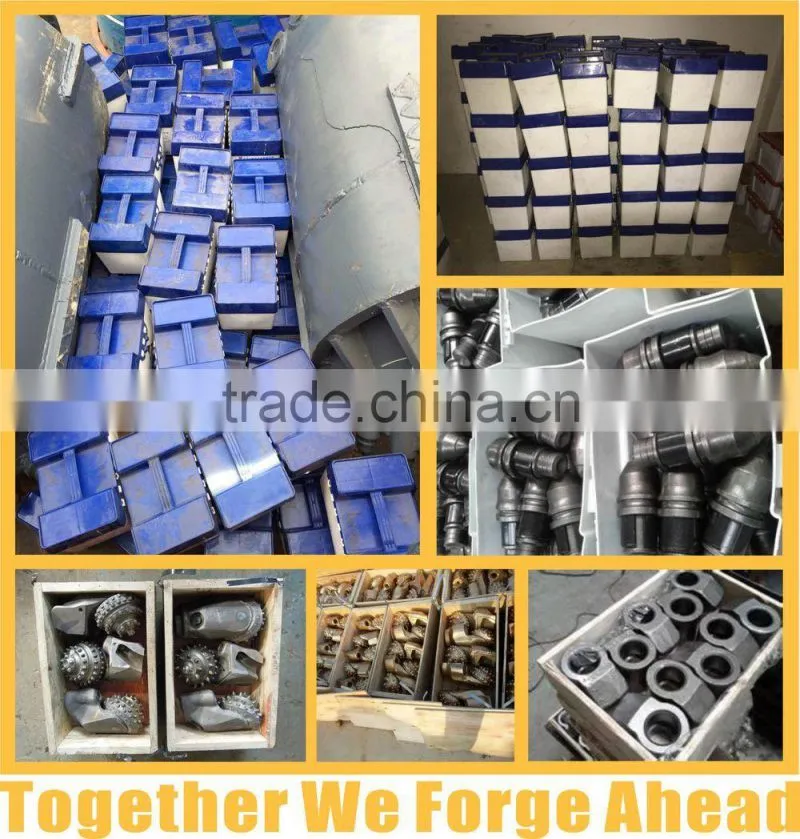

What is FAE packing and delivering of bullet teeth?
Why Choose us?
Company View
Our Certifications
What are FAE business cooperation?
FAQ
How to Contact Us?
