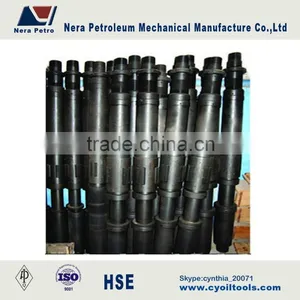

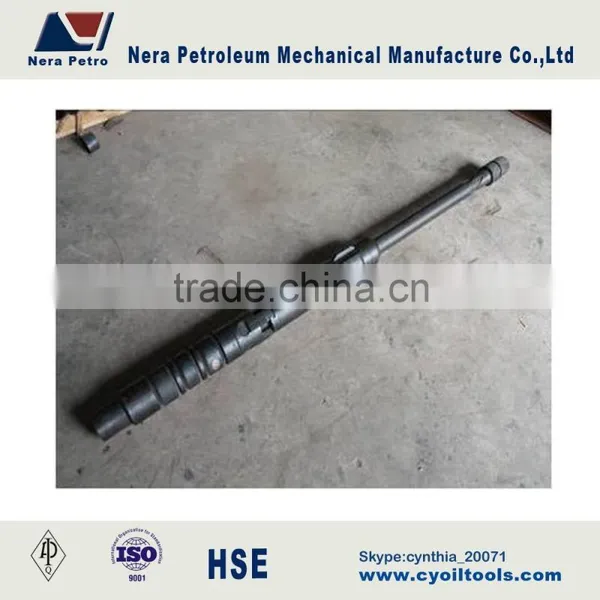

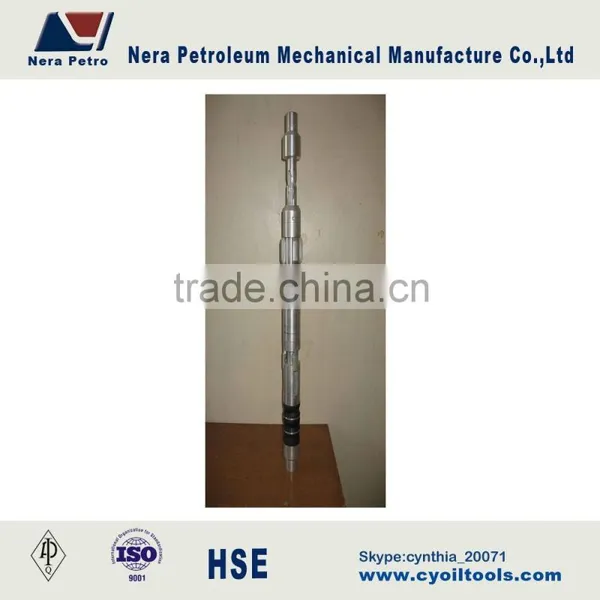

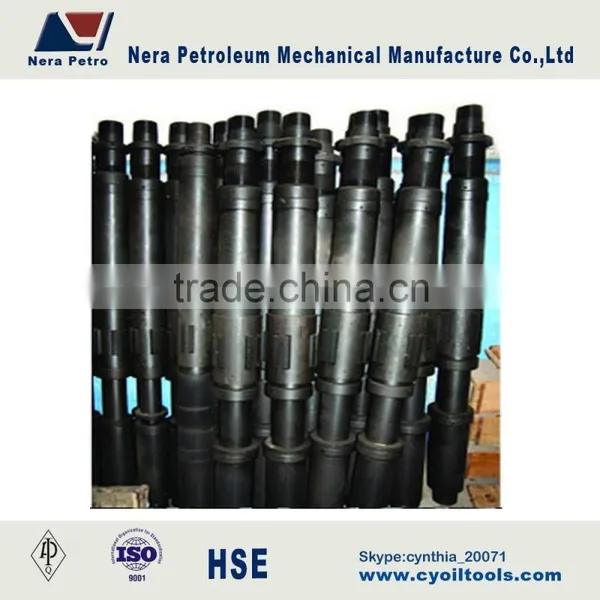

Casing packer for oilfield
1.Brief description
1.Model Y211Compression Packer is a retrievable, Compression set packer, designed to hold pressure from below.
2.This economical Compression packer is for wells where sufficient setdown weight is available to utilize a set down packer.
3.This packer can be used in water flood, oil production or treating applications. They are available for 4 1/2” through 7” casing.
2. Technical Parameter
Type |
Y211-102 |
Y211-115 |
Y211-150 |
Y211-208 |
Total lengt(mm) |
1873 |
2068 |
2066 |
2438 |
Max OD(mm) |
102 |
115 |
150 |
208 |
Min OD(mm) |
42 |
48 |
61 |
76 |
Setting force(KN) |
80-100 |
80-100 |
80-100 |
120-140 |
Working pressure difference(MPa) |
Up25 Down8 |
Up25 Down8 |
Up25 Down8 |
Up25 Down8 |
Working temperature(°C) |
120 |
120 |
120 |
120 |
Suitable casing ID(mm) |
107-115.8 |
117.7-132 |
158-166 |
221-228.5 |
|
Two end connection threads |
27/8TBG |
27/8TBG |
27/8TBG |
31/2TBG |
