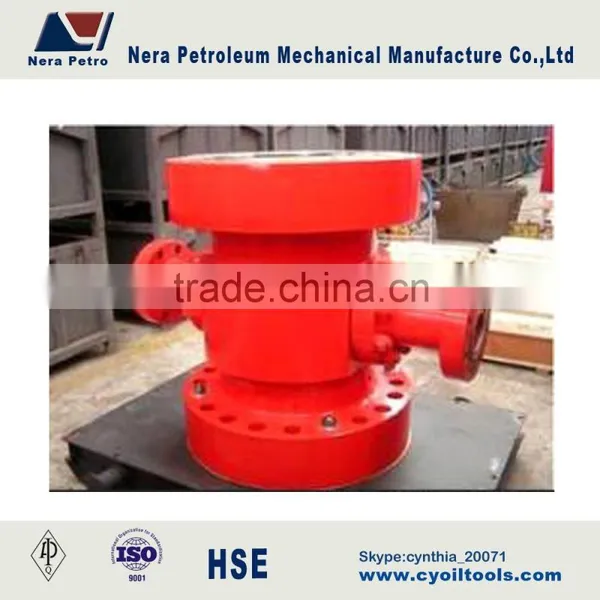

API 7-1/16" 5000PSI Drilling spool
Drilling spool is the parts which are often used in the oilfield for wellhead extension, choke and kill manifold, etc. It is designed and manufactured in accordance with API 6A and API 17K standard, it usually has the same nominal end connections. Eternal company specializes on the manufacturing all sizes and pressure ratings used for oilfield applications. So many spools have been applied on many oilfields all over the world. We can also design customizable ideal spools for reliable and consistent performance on their production system. Our products have been exported to many countries, such as Russia, South Africa, India etc.
Our products could match the following brand:
FMC, CAMERON, CONTROL FLOW, DKG, DRILLQUIP, CE, VECTOGREY, WEATHERFORD, WEIRSEABOARD,WOOD GROUP, WOM, STREAM FLO. EXPRO, MI SWACO, T3.
Application
The spool applies to drilling high pressure oil and gas well, the connecting of the by passage of the spool with the valves and pipes will play not only a role of blowout and choking , but also a role of connecting the BOP with the wellhead.
The connection size and pressure
Top flange |
Top flange |
Top flange |
Top flange |
11"×2000psi (279.4mm×14MPa) |
11"×2000psi (279.4mm×14MPa) |
11"×5000psi (279.4mm×35MPa) |
13-5/8"×5000psi (346.1mm×35MPa) |
11"×2000psi (279.4mm×14MPa) |
13-5/8"×2000psi (346.1mm×14MPa) |
11"×10000psi (279.4mm×70MPa) |
13-5/8"×5000psi (346.1mm×35MPa) |
11"×3000psi (279.4mm×21MPa) |
11"×3000psi (279.4mm×21MPa) |
11"×15000psi (279.4mm×105MPa) |
13-5/8"×5000psi (346.1mm×35MPa) |
11"×3000psi (279.4mm×21MPa) |
13-5/8"×2000psi (346.1mm×14MPa) |
13-5/8"×5000psi (346.1mm×35MPa) |
21-1/14"×2000psi (539.8mm×14MPa) |
11"×3000psi (279.4mm×21MPa) |
13-5/8"×3000psi (346.1mm×21MPa) |
13-5/8"×10000psi (346.1mm×70MPa) |
13-5/8"×5000psi (346.1mm×35MPa) |
11"×5000psi (279.4mm×35MPa) |
13-5/8"×3000psi (346.1mm×21MPa) |
13-5/8"×15000psi (346.1mm×105MPa) |
13-5/8"×5000psi (346.1mm×35MPa) |
Casing Program |
20 " X13 3/8 " X9 5/8 " X 7 " or 5 1/2 " |
Flanged Outlet |
PFF35/80:R35 |
PFF70/65:BX153 | |
Load Capacity |
≤ 5000KN |
Hanger Specification |
4 ", 4 1/2 ", 5 ", 5 1/2 ", 7 " |
Working Pressure |
35Mpa~70Mpa |
Performance Requirement Grade |
PR1 |
Product Specification Grade |
PSL1-3 |
Temperature |
P·U (-29°C~121°C) |
Material Class |
AA~FF |
