Product Introduction

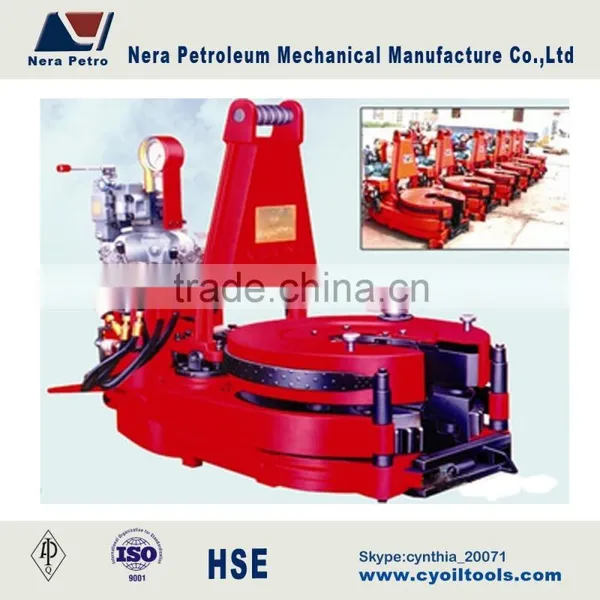

ZQ drill pipe power tong is an ideal well head tool for oil well drilling widely applied for making-up and breaking-out in offshore and onshore drilling operations and work over operation. Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility. The tong is a combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking-out. The tongs are designed and manufactured according to API Spec 7K”Specification for Drilling and well servicing Equipment”
API ZQ serice hydraulic power tongs Specification
Model |
ZQ127-25 |
ZQ162-50 |
ZQ203-100 |
ZQ203-125 |
||
Size range |
Drill pipe |
mm |
65-127 |
85-162 |
127-203 |
127-203 |
in |
23/8’’~31/2’’ |
23/8’’~5’’ |
31/2’’~8’’ |
31/2’’~8’’ |
||
Casing |
mm |
65-127 |
114.3~153.7 |
|
|
|
in |
23/8’’~31/2’’ |
41/2’’~51/2’’ |
|
|
||
Oil pipe |
mm |
65-127 |
138-156 |
|
|
|
in |
23/8’’~31/2’’ |
31/2’’~41/2’’ |
|
|
||
Max.torque |
kN.m |
25 |
50 |
100 |
125 |
|
ft.lbf |
18440 |
36880 |
73750 |
92200 |
||
Speed(High gear) |
rpm |
65 |
60 |
40 |
40 |
|
Speed(Low gear) |
rpm |
10.5 |
4.1 |
2.7 |
2.7 |
|
Air pressure |
MPa |
0.5–0.9 |
||||
psi |
72–130 |
|||||
Pressure rating |
MPa |
12 |
14 |
16.6 |
20.7 |
|
psi |
1740 |
2030 |
2400 |
3000 |
||
Flow rating |
L/min |
120 |
120 |
114 |
114 |
|
gpm |
31.7 |
31.7 |
30 |
30 |
||
Shifting distance |
mm |
1000 |
1000 |
1500 |
1500 |
|
in |
39.4 |
39.4 |
59 |
59 |
||
Size |
mm |
1110×735× |
1570×800×1190 |
1760×1000×1360 |
1760×1080×1360 |
|
in |
44×31×32 |
62×31×47 |
69×39×53 |
69×40.5×53 |
||
Weight |
kg |
620 |
1500 |
2400 |
2650 |
|
lb |
1360 |
3310 |
5290 |
5840 |
||
API TQ serice Casing power tongs Specification
Model |
TQ178-16 |
TQ340-20Y |
TQ340-35 |
TQ178-16Y |
TQ340-35Y |
TQ508-70Y |
||
Size range |
mm |
101.6-178 |
101.6-340 |
139.7-340 |
101.6-178 |
101.6-340 |
245-508 |
|
in |
4-7 |
4-13 3/8 |
51/2-13 3/8 |
4-7 |
4-13 3/8 |
9 5/8-20 |
||
|
Hydraulic system Max. pressure |
MPa |
18 |
16 |
18 |
18 |
18 |
20 |
|
psi |
2610 |
2320 |
2610 |
2610 |
2610 |
2900 |
||
Hydraulic system rated flow |
L/min |
114 |
114 |
114 |
114 |
114 |
200 |
|
gpm |
30.1 |
30.1 |
30.1 |
30.1 |
30.1 |
52.8 |
||
Max. torque |
Hi gear |
kN.m |
2.4-3 |
3.7 |
2.5-3 |
2.4-3 |
4.0-5.0 |
8.4-10.7 |
ft.lbf |
1770-2200 |
2730 |
1844-2200 |
1770-2200 |
2950-3680 |
6195-7890 |
||
Mid gear |
kN.m |
|
|
6.0-7.5 |
|
|
|
|
ft.lbf |
|
|
4420-5530 |
|
|
|
||
Low gear |
kN.m |
16 |
20 |
35 |
15-18 |
27-30 |
48.9-70 |
|
ft.lbf |
11800 |
14750 |
25800 |
11060-13280 |
19900-22120 |
36065-51630 |
||
RPM |
Hi gear |
rpm |
54-79 |
50-80 |
60-86 |
54-79 |
80-98 |
|
Mid gear |
rpm |
|
|
21-30 |
|
|
|
|
Low gear |
rpm |
9-13.1 |
6-14 |
2.6-5.3 |
8.5-12 |
12-16 |
|
|
Overall dimensions |
mm |
1540*760* 740 |
1520*850* 670 |
1540*900* 860 |
1500*760*680 |
1560*900*850 |
2080*1280*760 |
|
in |
61*30*29 |
60*34*26 |
61*36*34 |
59*30*27 |
61*35*33.5 |
82*50*30 |
||
Weight |
kg |
580 |
560 |
780 |
570 |
780 |
1550 |
|
lb |
1280 |
1234 |
1720 |
1250 |
1720 |
3410 |
||
