CCTV Security 25fps Weatherproof Low Temperature Working IR 15M 720P IP CCTV Camera

CCTV Security 25fps Weatherproof Low Temperature Working IR 15M 720P IP CCTV Camera thumbnail-1
CCTV Security 25fps Weatherproof Low Temperature Working IR 15M 720P IP CCTV Camera photo-1
US$ 84 - 90 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Ratingsecu
Model Number:
R-H534N
Contact Supplier Request Quote Chat Now
Shenzhen Rong Tian Shi Tech Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Ratingsecu
Model Number R-H534N
Type Digital Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

CCTV Security 25fps Weatherproof Low Temperature working IR 15M 720P IP CCTV Camera

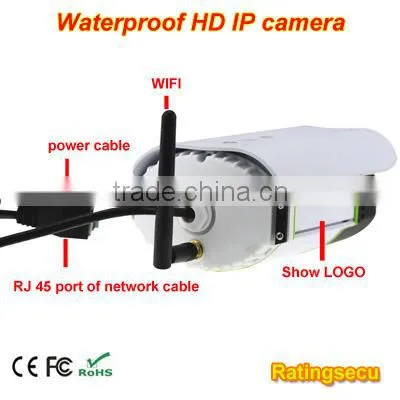

Waterproof 2.12 Megapixel HD IP IR camera

Model: R-H534N



Features of 1080P HD IR wireless IP camera support ONVIF WIFI for family safety:

  • 1/2.8" SONY 2.4 megapixel HD CMOS,
  • resolution: 1920x1080, 0.02LUX low illumination.
  • 3.0 Megapixel HD lens, 4mm / 6mm / 8mm / 12mm optional.
  • IR_CUT dual optical filters auto switch.
  • Hi coding & ISP, H.264 compression.
  • 25 frames, real time 1080P, dual streams,
  • built-in WEB, support ONVIF.
  • Professional design for home security megapixel ir camera,
  • small & beautiful & easy use.
  • Private mold, aluminum alloy casing.
  • excellent heat dissipation system got national patent,
  • 2pcs imported SMD array IR LED (Finland LEDIL light lens),
  • effective night vision distance 40-50m, excellent performance in dark environment.

Main feature:

  1. Professional design for hd network camera, small, beautiful and delicate, best for home security.
  2. Material: aluminum alloy, innovative patented heat dissipation structure, make hd camera can works well under high temperature.
  3. 3 models: 2.4 megapixel, 1080P progressive scan; 1.3 megapixel, 960P progressive scan; 1.0 megapixel, 720P progressive scan.
  4. Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.
  5. 3.0 Megapixel HD CS lens+ IR-CUT auto swith in day and night, 4mm, 6mm, 8mm, 12mm fixed focus lens optional.
  6. 2pcs imported SMD array IR LED + Finland LEDIL light lens, effective night vision distance is 50m, excellent performance in dark environment.
  7. Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.
  8. Innovate design for build-in audio pickup (external type optional).
  9. POE module and WIFI module optional. Can add waterproof external TF card storage module.
  10. Exclusive innovation design, can choose our intelligent rotating bracket.
  11. Support ONVIF protocol, can provide the SDK.

Optional back-end products for the system:



IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.

Optional functions of 1080P HD IR wireless IP camera support ONVIF WIFI for family safety:

  • Can add internal audio pickup, add POE module & WIFI module.
  • Can add waterproof external TF card storage module.
  • Can choose bracket or electrical bracket with pan & tilt function.
  • Size: 140mm (L) x 75mm (W) x 62mm (H)
  • Non-IR model optional.

Model:

R-H234N

R-H334N

R-H534N

Camera

Imaging sensor:

1/4" CMOS progressive scan

1/3" CMOS progressive scan

1/2.8" SONY progressive

Signal system:

PAL / NTSC adjustable

Scanning mode:

Progressive scanning

Illumination:

Color 0.2 lux, black & white 0.05 lux, IR on 0 lux

Color 0.2 lux, black & white 0.02 lux, IR on 0 lux

Color 0.2 lux, black & white 0.02 lux, IR on 0 lux

Lens:

Standard with 3 million pixel 4-12mm fixed focus CS lens

Day and night  switch:

IR-CUT dual optical filters auto switch in day and night

Electronic shutter:

Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds)

White balance:

Auto / manual

DNR:

3D-DNR

IR source:

2pcs SMD array light source+ Finland LEDIL light lens

Effective night vision distance:

50 meters (measured value without light condition)

Standard compression

Image compression:

H.264

Video bit rate:

128 Kbps -- 8 Mbps; CBR / VBR adjustable

Audio compression:

G.711 / G.726

Audio bit rate:

64 Kbps (G.711) / 16 Kbps (G.726)


Max image size:

1280 x 800

1296 x 976

1984 x 1225

Frame rate:

1920 x 1080 @ 30 fps; 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps; 704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps

Image adjustment:

Through IE can adjust Saturation, brightness, contrast, sharpness

Image mirroring:

Horizontal mirroring, vertical mirroring

Scene:

Auto, indoor, outdoor

Digital enlarge:

Can achieve through NVR, P2P hd monitoring management software

Function

Storage:

Support TF card storage

Interface protocol:

ONVIF



Support protocol:

TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour (SIP, SRTP optional)

Intelligent alarm:

Motion detection, mask alarm, network cable break , IP address conflict, storage card is full, storage device is wrong

Audio pickup:

Can add internal audio pickup, also support external audio pickup

POE power supply:

Support POE power supply (optional), internal and external type

WIFI:

Support WIFI function (optional)

Interface

Communication interface:

1pc RJ45 10M / 100M Adaptive Ethernet port

Basic parameter

Power input:

DC 12V±10% / POE

Power consumption:

1W (IR off) / 5.5W (IR on)

1.1W / 5.6W (IR on)

Work environment:

-35°C ~ 60°C, humidity is less than 95% (no condensation)

Size:

140 mm x 75 mm x 62 mm



CCTV Security 25fps Weatherproof Low Temperature working IR 15M 720P IP CCTV Camera


Our Services



1.OEM&ODM Service:Accepted
2.Warranty time: 2 Years
3.After-sale Service:Most through Internet,On-site service if needed.

Company Information

 Company:

CCTV Security 25fps Weatherproof Low Temperature working IR 15M 720P IP CCTV Camera

 CCTV Security 25fps Weatherproof Low Temperature working IR 15M 720P IP CCTV CameraCCTV Security 25fps Weatherproof Low Temperature working IR 15M 720P IP CCTV Camera

 CCTV Security 25fps Weatherproof Low Temperature working IR 15M 720P IP CCTV Camera

FAQ



1.Are you a factory or trading company?

We are a CCTV Camera factory over 10 years with ISO9001 System audit.



2.Where is your factory ?

Our factory is located in Shenzhen, China, very near to HK.



3.Is the Sample Free?

Sample requirement is accepted,but not free.

4. :How does your factory do on quality control ?

You order will be test 100% before packing and shipping & third party inspetion is welcome

5. What your delivery date?

A:7-20 days usually

6. Can you printing our logo on cable or packing?Do you accept OEM & ODM?

Yes,available.
