2013 New Design Wireless hd ip ir Security Camera for Christmas Promotion

2013 New Design Wireless hd ip ir Security Camera for Christmas Promotion thumbnail-1
2013 New Design Wireless hd ip ir Security Camera for Christmas Promotion photo-1
US$ 58 - 58 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RATINGSECU
Model Number:
R-H332N
Contact Supplier Request Quote Chat Now
Shenzhen Rong Tian Shi Tech Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name RATINGSECU
Model Number R-H332N
Type Digital Camera
Style Bullet Camera
Sensor CMOS
Technology NetWork
Special Features Waterproof / Weatherproof

Specifications

1/3" 1.3 megapixel HD CMOS,
resolution: 1280x960, 0.02LUX low illumination.
IR_CUT dual optical filters auto switch.

2013 New Design Wireless hd ip ir  Security Camera for Christmas Promotion







1.0 megapixel 960P HD IP IR camera
Model: R-H332N


Wireless surveillance security IP camera with 1.0 megapixel 960P HD IR IP feature:
  • Professional design for home security megapixel ir camera, small & beautiful & easy use.
  • Private mold, national patent, excellent heat dissipation, plastic + aluminum alloy structure.
  • 1pcs imported SMD array IR LED (Finland LEDIL light lens), effective night vision distance 20-25m, excellent performance in dark environment.
  • 3.0 Megapixel HD lens, 3.6mm / 6mm / 8mm / 12mm optional.
  • Can add internal audio pickup, add POE module  & WIFI module.
  • With install bracket, can add waterproof external TF card storage module.
  • Size: 125mm (L) x 55mm (W) x 50mm (H)
Sensor of Wireless surveillance security IP camera with 1.0 megapixel 960P HD IR IP:
  • 1/3" 1.3 megapixel HD CMOS,
  • resolution: 1280x960, 0.02LUX low illumination.
  • IR_CUT dual optical filters auto switch.
  • Hi3518 coding & ISP, H.264 compression.
  • 25 frames, real time 960P, dual streams, built-in WEB, support ONVIF.

Type of this camera: Wireless surveillance security IP camera with 1.0 megapixel 960P HD IR IP, ir megapixel hd camera, home security camera, wireless camera, ip hd camera, security wireless camera, security ip hd camera, security home camera, camera 960P HD, wireless security camera, wireless surveillance camera, outdoor wireless ip camera, surveillance megapixel hd camera, wireless ip camera.



Model:
R-H232N
R-H332N
R-H532N

Camera
Imaging sensor:
1/4" CMOS progressive scan
1/3" CMOS progressive scan
1/2.8" SONY progressive
Signal system:
PAL / NTSC adjustable
Scanning mode:
Progressive scanning
Illumination:
Color 0.2 lux, black & white 0.05 lux, IR on 0 lux
Color 0.2 lux, black & white 0.02 lux, IR on 0 lux
Color 0.2 lux, black & white 0.02 lux, IR on 0 lux
 Lens:
Standard with 3 million pixel 3.6-8mm fixed focus lens
Day and night switch:
IR-CUT dual optical filters auto switch in day and night
Electronic shutter:
Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds)
white balance:
Auto / manual
DNR:
3D-DNR
Infrared source:
1pcs SMD array light source+ Finland LEDIL light lens
Effective night vision distance:
25 meters (measured value without light condition)
Compression standard
Image compression:
H.264
Video bit rate:
128 Kbps -- 8 Mbps; CBR / VBR adjustable
Audio compression:
G.711 / G.726
Audio bit rate:
64 Kbps (G.711) / 16 Kbps (G.726)
Max image size:
1280 x 800
1296 x 976
1984 x 1225
Frame rate:
1920 x 1080 @ 30 fps; 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps; 704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps
Image adjustment:
Through IE can adjust Saturation, brightness, contrast, sharpness
Image mirroring:
Horizontal mirroring, vertical mirroring
Scene:
Auto, indoor, outdoor
Digital enlarge:
Can achieve through NVR, P2P hd monitoring management software
Function
Storage:
Support TF card storage
Interface protocol:
ONVIF
Support protocol:
TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour (SIP, SRTP optional)
Intelligent alarm:

Motion detection, mask alarm, network cable break , IP address conflict, storage card is full, storage device is wrong
Audio pickup:
Can add internal audio pickup, also support external audio pickup
POE power supply
Support POE power supply (optional), internal and external type
WIFI
Support WIFI function (optional)
Interface
Communication interface:
1pc RJ45 10M / 100M Adaptive Ethernet port
Basic parameter
Power input :
DC 12V±10% / POE
Power consumption:
1W (IR off) / 3.4W (IR on )
1.1W / 3.5W (IR on )
Working environment:
-35°C ~ 60°C, humidity is less than 95% (no condensation)
Size:
125 mm x 55 mm x 50 mm

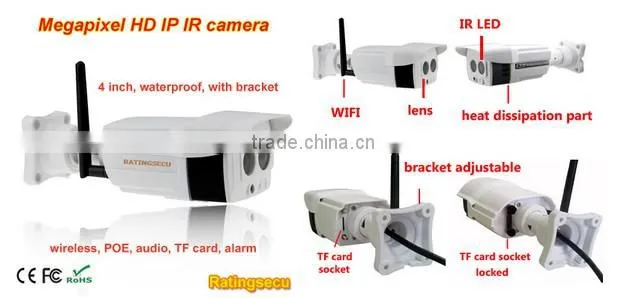

Picture details:



2013 New Design Wireless hd ip ir Security Camera for Christmas Promotion



Thanks s o much for your time, welcome to contact me if any interested in our products, thanks !!
