Submersible Water Pump
- 10000 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Richoice | Theory: | Electromagnetic Pump |
Structure: | Single-stage Pump | Usage: | Water | Power: | Electric |
Fuel: | Other | Pressure: | Low Pressure | Application: | Submersible |
Product Description
Specifications
Submersible Water Pump1,high flow,high rfficiency and reliable performance
2,low noise,low vibration,no leaking
3,used wi
V-A/B/S SERIES Sewage Pumps
1. CONDITION OF USAGE:
1 .The maximum deep it is allowed in water is 5m from its center of impeller;
2.The trans medium's temperature shouldn't be higer than 40°C;
3.Trans medium's PH:4~10;
4. Kinematics viscosity of the trans medium is: 7x 10 7~23x 10 em2/s;
5. Density of the trans medium Limit:
1.2x103kg/m3
2. FUNCTION AND FEATURE:
Submersible pump with cutter is an ideal machine for draining sewage.A high-speed rotating cutter is assembled at the inlet hole of the pump, make it easy to cut off long- fibre and firm sundries contained in the sewage,so as to avoid the impeller is blocked by the entanglement.lt is suitable for draining sewage in sanitation,factory,mine and family. The float switch can automatically control on and off with the change of the liquid level. The protector in the motor can automatically cut off the power when it is overheated or overload,thus guarantee the security and reliablity of pump's run even in the atrocious environment.

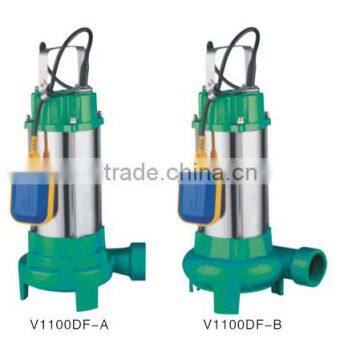

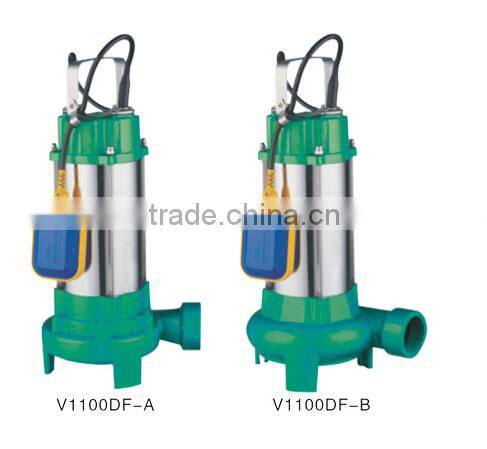

3. picture
4. specification:

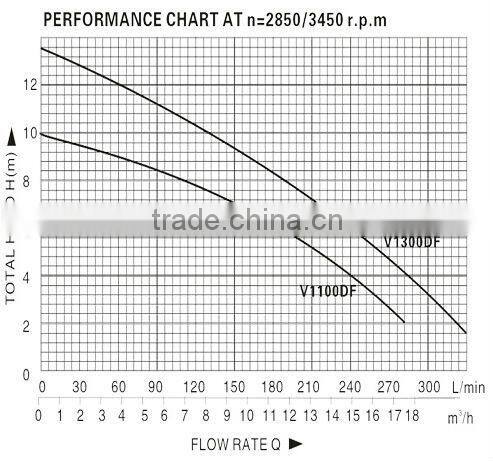

Model | Power | Outlet | Voltage | Max.flow (L/min) | Max.head (m) | Dimensions | |
(Kw) | (Hp) | ||||||
V1100DF | 1.1 | 1.5 | 50 | 220/50-60 110/60 | 280 | 8 | 27.5x22.5x56.0 |
V1300DF | 1.3 | 1.75 | 50 | 220/50-60 110/60 | 330 | 13 | 59.0x35.0x25.0 |
if you want to know more about our product , please let us know
