Cctv Camera Pan Tilt Head Smart Rotating Brackets Waterproof

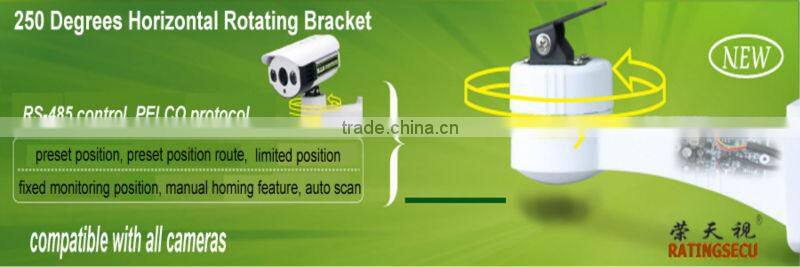

Hot selling 255 Degrees CCTV Camera electronic Rotate wall mounting bracket 2014

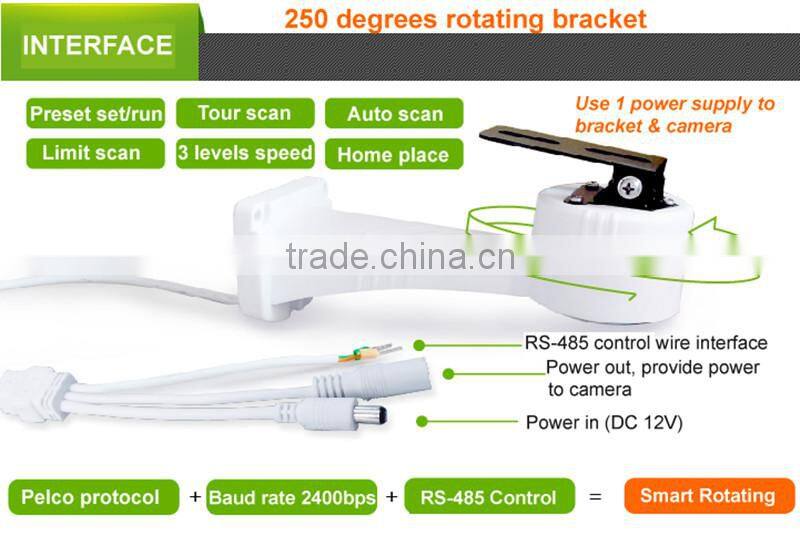

* Perfectly work with our megapixel HD IP camera, directly connect to the IP module's RS-485 wires, no need wiring, can be controlled by NVR / platform clients software / smart phone's clients software.

* Can simply change a fixed camera can be moved by RS-485 control, low cost and simple work.

* Can decrease camera quantity in project, then decrease project cost, let integrator have more advantages than their competitor.

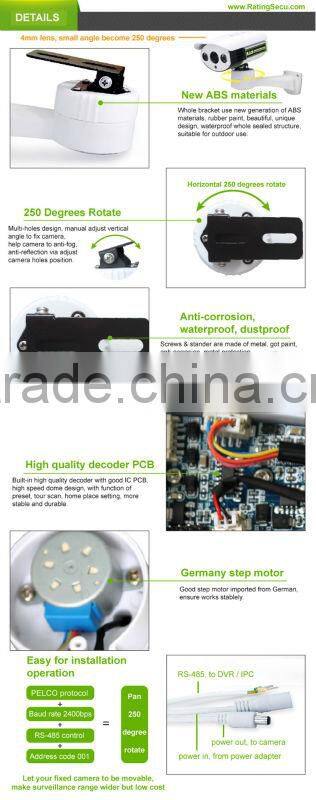

* Specially suitable for indoor, change camera's visible range to be wide and improve definition.

E.g. When you want wide angel indoor, you often choose a 3.6mm lens camera, but the definition can not be very good, if you choose a 6mm lens camera with this PT bracket, definition is better, although the 6mm lens can not reach the angle of 3.6mm lens, but the PT bracket make the biggest monitoring range to be 250 degrees.

* Competitive price, only designed by us, unique but easy to use, help your installation to be easier, gain more praises from users.

* With built-in decoder, without power supply.

Operation

Please note, this bracket with below functions:

(1) Use RS-485 control, but RS-485 + / - is universal, no need to distinguish.

(2) Configuration will not be lost after power off, means when the bracket is working of a scan action, but the power is off, then when you reboot the bracket, it will continue the action before power off.

(3) Manual set address code of camera.

1. Set address code of bracket:

User need to set the address code of this bracket before use it, address code can be set of 01 - 10, each bracket only can use 1 address code, default address code is “01”.

Steps of set address code as follows:

(1) Enter setting status: set preset of NO.25.

(2) Start to set address code (e.g. Set add NO.02): press “set preset” on keyboard, then type the address number of “ 02 “, then press key of “ENTER” to confirm the set.

(3) Change address code of control keyboard: because now the bracket use the address code as “02”, so you need to change your control keyboard to use address code of “02” to control the bracket.

(4) Save the address code of bracket: after you change the control keyboard’s address code, now please SET preset of NO.26, and save this command, then reboot the bracket. (if you don’t do this step to save address code, the bracket will bact to the 01 address code after reboot.)

2. Limiting Scan:

Set left limiting position: set preset of NO.09.

Set right limiting position: set preset of NO.10.

Run limiting scan: run / go preset of NO.12.

Delete limiting scan: set preset of NO.12.

Set scan speed: can set 3 levels, 10°/ sec; 18°/sec; 25°/sec.

Command: set preset of NO. 15 ; NO. 16 ; NO. 17.

3. Tour scan:

This bracket can set 1 tour scan route, can set 8 preset position in 1 tour scan.

Run tour scan: run / go preset of NO.13.

Delete tour scan: set preset of NO.13.

After the bracket run tour scan for 50 times, it will auto back to the initial position for check positions. User also can manual adjust it to do this check.

Manual check initial position: run / go preset of NO.18.

4. Home position

Set home position: move bracket to the position you want, then use command of “set preset position # 11” .

Run home position: go / run preset #14 to make home position working.

Stop home position: set preset #14 to close home position function.

5. Back to factory set:

set preset of NO.20.

P.S. Use our keyboard to SET preset / RUN preset steps:

press “SET PRE” / “GO PRE” -- press number keys -- press “ENTER”.

Accessories:

Bracket x 1 ; manual x 1 ; certificate  / warranty card x 1; screens x 2.

Common faults and exclusion:

If the bracket can not start auto checking (base part rotate) after powered on, and without any action, please check if the power supply is right, please check the power polarity voltage, current, and connection.

wall mount bracket for cctv camera

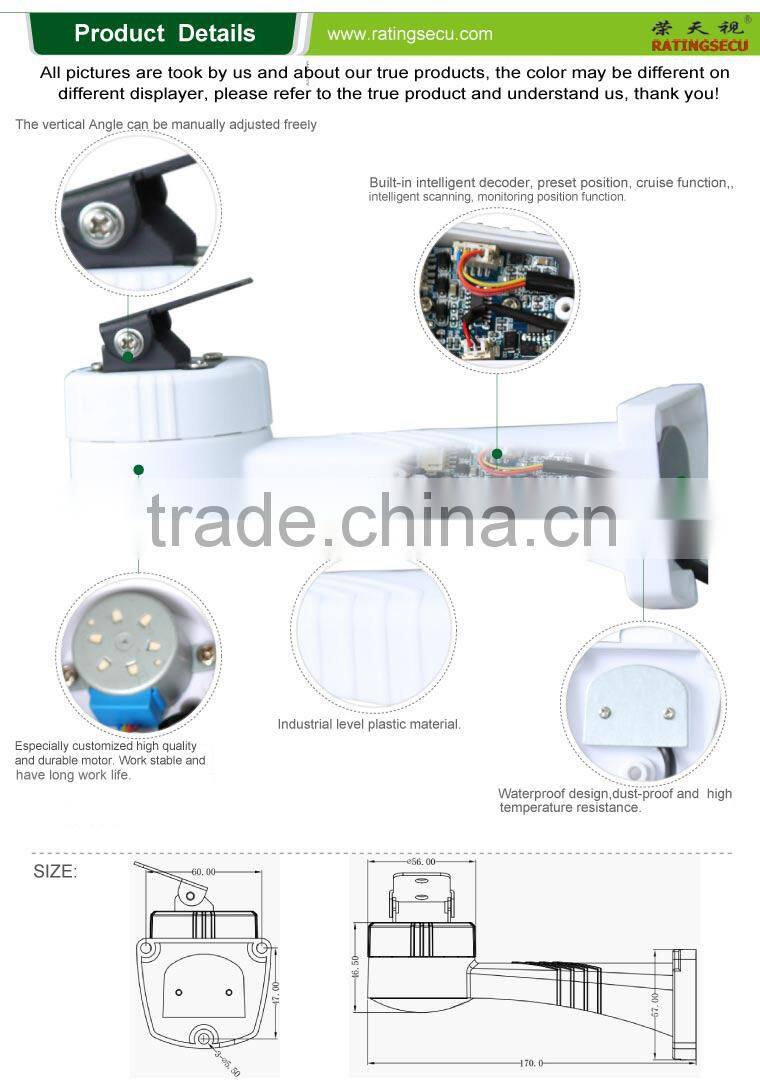

255 Degrees Electronic Rotating Bracket (Model: R-YZ100)
