Help CenterRTS Wifi Nvr Kits Super Mini High Quality Cam System Cctv hd Embedded Nvr
Related Products
Features:
l R-QN3104A: Can connect 2CH 1080P+2CH 720P HD IP cameras.
l R-QN3108Al can connect 8CH 1080P or 8CH 720P HD IP cameras.
l Support network speed dome camera and network video server.
l With ONVIF protocol.
l Can connect network camera of some famous brand: AXIS, Bosch, Panasonic, SANYO, SONY.
l Support megapixel high definition network video preview, storage and playback.
l Can choose any areas in the picture by mouse and can zoom the center.
l Support digital enlarge of preview image and playback image.
l Support inquiry, playback, backup video files by events.
l Support 4CH Synchronous playback.
l Can match NVR control keyboard, make the NVR and HD IP speed dome camera operation more convenient and simple.
l Can drag the tree menu, more convenient to set parameters.
l 15X digital enlarge via mouse operation, can move enlarged image (preview / playback).
l Instant screen-shots and view image. Can set a separate area in hard disk to save screen-shots images.
l Video playback is displayed by time column and video type is displayed by color, so video query is very fast and convenient.
l Video backup can be according to the length of time occur, backup can be accurate to the second (backup precise).
l U-disk backup files can be directly playback on a host machine, more convenient.
l Support 3G, WIFI connection function.
l Standard resolution, can adjust resolution via display equipment, show the best image effect.
l Ordering written of hard disk, start from 0 data, improve hard disk lifetime 2.5 times.
Technical information:
Model: |
R-QN3104A |
R-QN3108A |
|
Box: |
Standard 1U box |
||
Operate system: |
Embedded LINUX operate system |
||
Image coding standard: |
H.264 / MPEG4 AVC |
||
Image coding control: |
Can adjust image coding, variable stream, limited stream optional |
||
Dual stream: |
Each channel can set main and auxiliary stream |
||
Audio compression: |
G.711 |
||
Video Standard: |
PAL/NTSC |
||
Monitor image quality: |
1080P (1920 x 1080) 30 frames / sec ; 960P / (1280 x 960) ; 720P (1280 x 720) 30 frames / sec. |
||
Image playback quality: |
4CH 720P |
Under 8CH 720Pmode, 4CH 720P Synchronous playback, under 8CH 1080Pmode, 1CH1080P Synchronous playback |
|
Regional block set: |
Each channel support four regional block (need IPC support) |
||
Intercom: |
2 ways voice intercom |
||
Video mode: |
Support manual, auto, dynamic monitoring, alarm triggered recording mode (part needs IPC support) |
||
Backup mode: |
Support U disk, USB mobile hard disk, burner, network storage, backup |
||
Save video: |
Local hard disk |
||
Operate mode: |
Mouse, NVR control keyboard |
||
Network video input: |
4CH |
8CH |
|
Network audio input: |
4CH |
4CH |
|

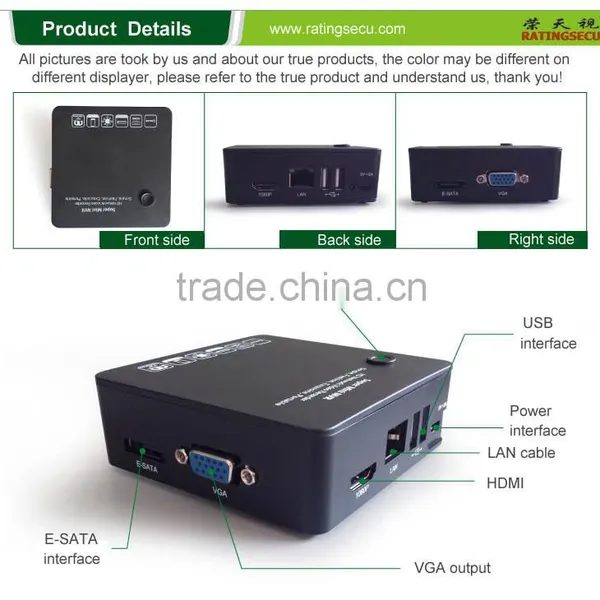

External interface |
Video output: |
1CH VGA+1CH HDMI |
|
Audio output: |
1CH RCA |
||
Alarm input: |
No |
||
Alarm output: |
No |
||
Network interface: |
1pc RJ45 10M / 100M Adaptive Ethernet ports |
||
WIFI interface: |
3G, WIFI |
||
RS485 interface: |
No |
||
USB interface: |
USB 2.0 interface: 3(1 at front plate, 2 at back plate) |
||
Local log on: |
User name and password |
||
Hard disk: |
One SATA interface, support single largest capacity 4TB hard disk |
||
Power supply: |
DC12V / 2.6 A |
||
Mobile surveillance: |
Support(iPhone,Symbian,Android)smart mobile phone |
||
Power consumption: |
≤ 25W (without hard disk) |
||
Working temperature: |
-10 oC ~ + 55 0C |
||
Working humidity: |
10%-90% |
||
Size: |
Machine: 260 mm x 220mmx 43 mm, contain the packaging: 355 mm x 255 mm x 88.5 mm |
||
Weight(without hard disk): |
Net weight:1.5 kg, contain the packaging:2.4 kg |
||
