Excavator Mud Bucket With Bolt on Cutting Edge
- China Port/Shanghai/shenzhen/Tianjin
- T/T Credit Card
You May Like
-
Excavator Clean up Mud Buckets With Bolt on Cutting Edge
-
FAE Top Quality Drilling Bucket With Open Body,open Body Drilling Bucket
-
FAE Rock Double-bottom Double Open Rock Drilling Bucket
-
FAE Rock Bucket With Double Bottom Single Cutting Edge for Drilling Rigs
-
FAE Hot Sale 2 Petals Drilling Bucket With Well Drilling Teeth, Clay Drilling Bucket With Bauer Teeth
-
FAE Rock Drilling Auger For Drilling Rig,Clay Drilling Auger
Product Details
| Place of Origin | Hunan, China | Brand Name | FAE | |
| Model Number | 520-2500mm drilling diameter |
Product Description

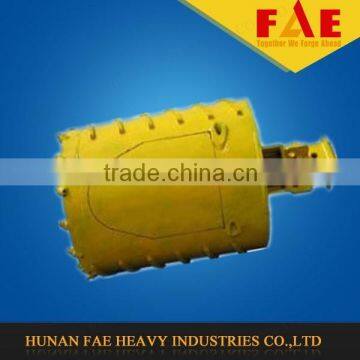

FAE mud bucket
What FAE could offer?
We can produce the variety of drill tools,
-soil drilling bucket;
-rock drilling bucket;
-rock core barrels;
-mud(two-petal) drilling bucket;

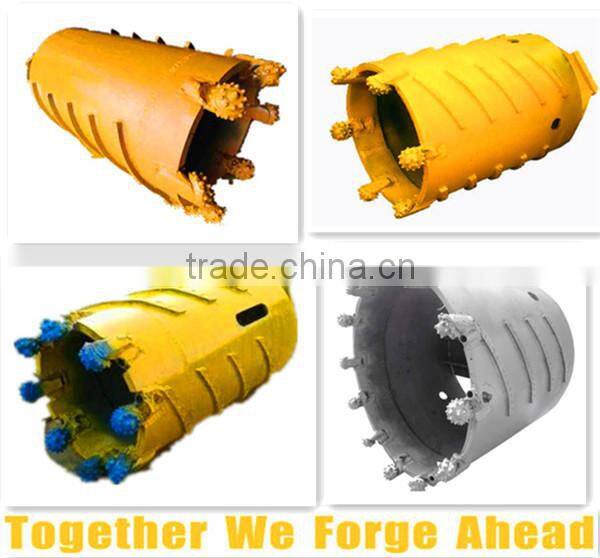

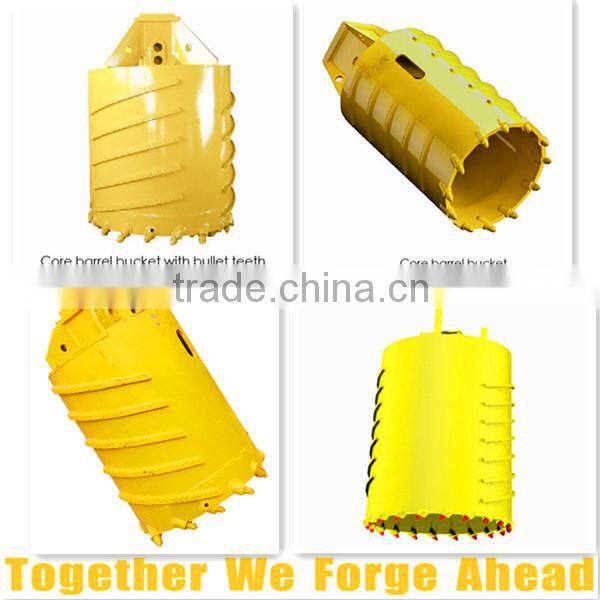

1) Rock core barrel
Drilling diamter:520mm-2500mm
Shell length:800mm-1500mm
Material:16Mn/Q345C
Main applications:
Core barrel are used for hard layer and coring.
Drilling Dia mm | Shell Dia mm | Shell length mm | Shell thickness mm | Teeth No pcs | Material | Weight kg |
| 600 | 570 | 1200 | 16 | 6 | 16Mn | 600 |
| 700 | 670 | 1200 | 16 | 7 | 16Mn | 700 |
| 800 | 770 | 1200 | 16 | 9 | 16Mn | 800 |
| 900 | 870 | 1200 | 16 | 9 | 16Mn | 900 |
| 1000 | 970 | 1200 | 16 | 11 | 16Mn | 1020 |
| 1200 | 1170 | 1200 | 16 | 13 | 16Mn | 1150 |
| 1250 | 1220 | 1200 | 16 | 13 | 16Mn | 1280 |
| 1400 | 1370 | 1200 | 16 | 15 | 16Mn | 1350 |
| 1500 | 1470 | 1200 | 20 | 15 | 16Mn | 1450 |
| 1800 | 1770 | 1000 | 20 | 19 | 16Mn | 2100 |
Any other bigger sizes can be made by customer demand.
Features:
-Kelly box size as per customer's demand
-Bucket thickness can be made 16mm or 20mm as customer's demand
-Teeth type:B47K-22H/3050.with round holder or roller bits.

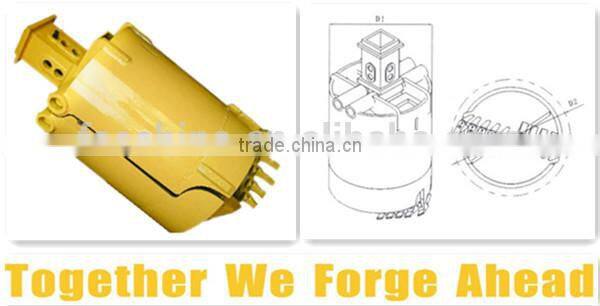

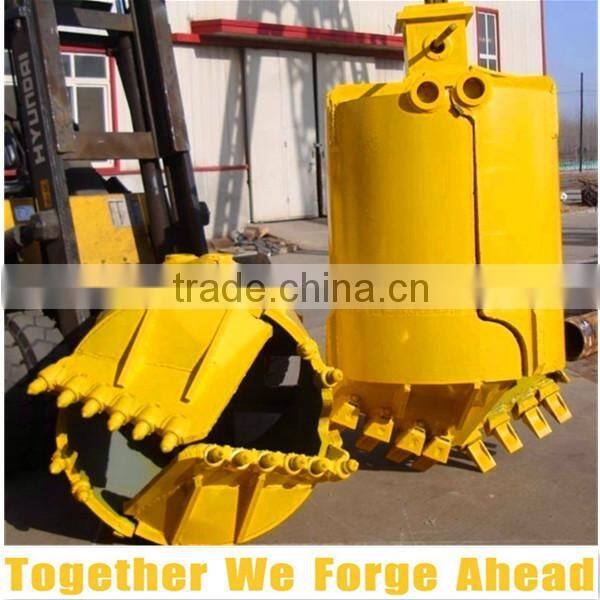

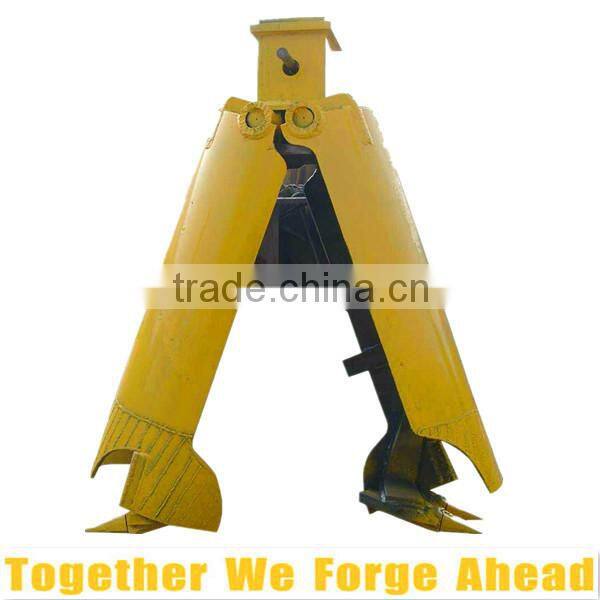

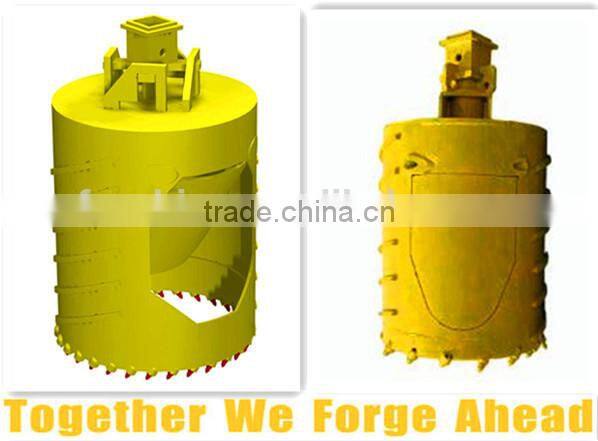

2) Mud bucket
Drilling diameter range:600-1200mm
Shell Length:1200mm
Meterial:Q345C
Drilling Dia mm | Shell Dia mm | Shell length mm | Bucket thickness mm | Material |
| 600 | 570 | 1200 | 16 | 16Mn |
| 700 | 670 | 1200 | 16 | 16Mn |
| 800 | 770 | 1200 | 16 | 16Mn |
| 900 | 870 | 1200 | 16 | 16Mn |
| 1000 | 970 | 1200 | 16 | 16Mn |
| 1200 | 1170 | 1200 | 16 | 16Mn |
| 1250 | 1220 | 1200 | 16 | 16Mn |
| 1400 | 1370 | 1200 | 16 | 16Mn |
| 1500 | 1470 | 1200 | 20 | 16Mn |
Features:
-Mud drilling bucket are used for silt or mud layer
-Kelly box size as per customer demand
-Bucket thickness: 30/40 mm
-Cantboard thickness:50mm
-Teeth type : V19/V20 teeth
