FAE core barrel
What FAE could offer?
We can produce the variety of drill tools,
-soil drilling bucket;
-rock drilling bucket;
-rock core barrels;
-mud(two-petal) drilling bucket;

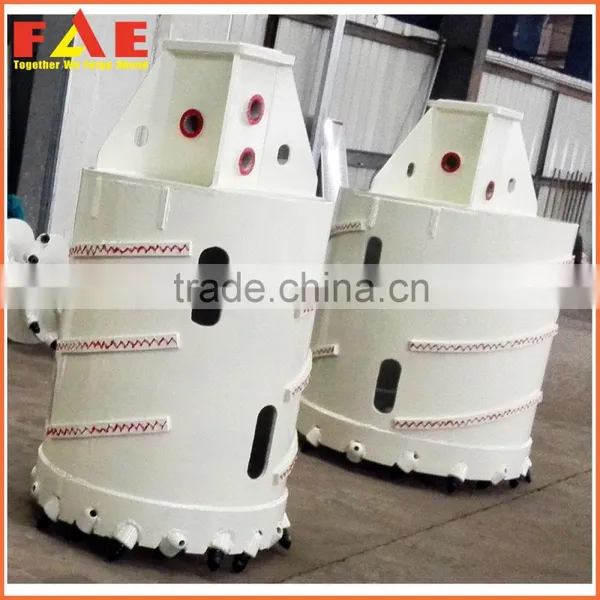

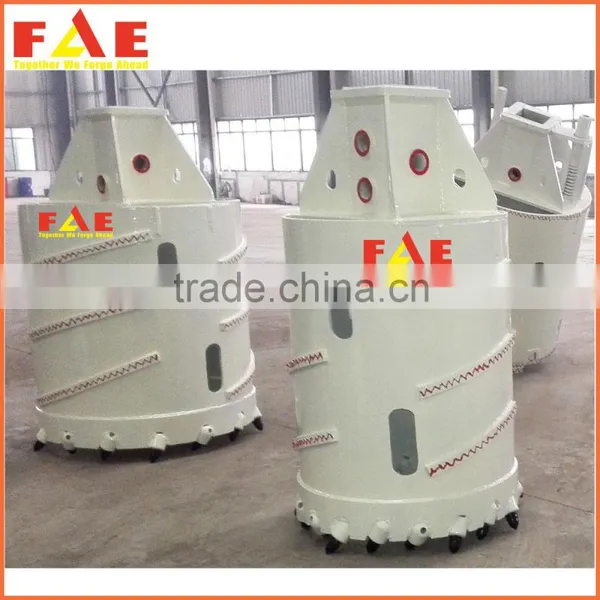

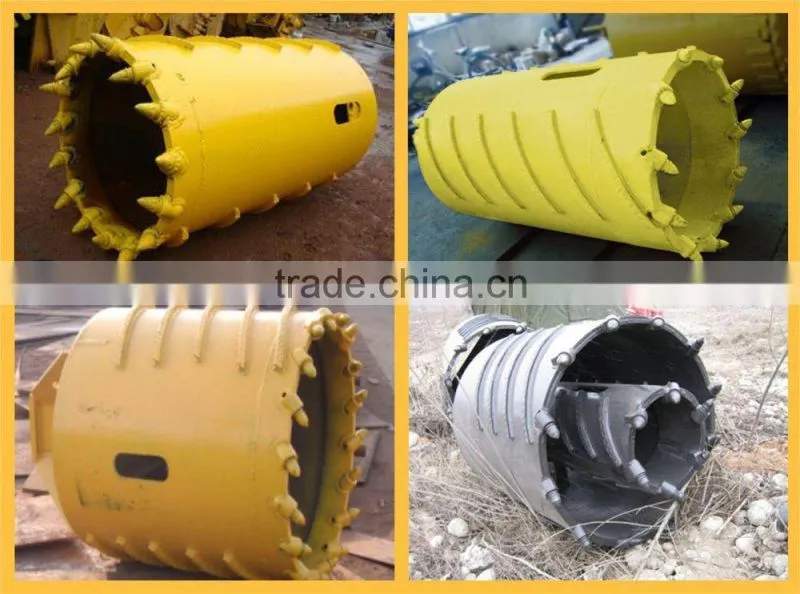

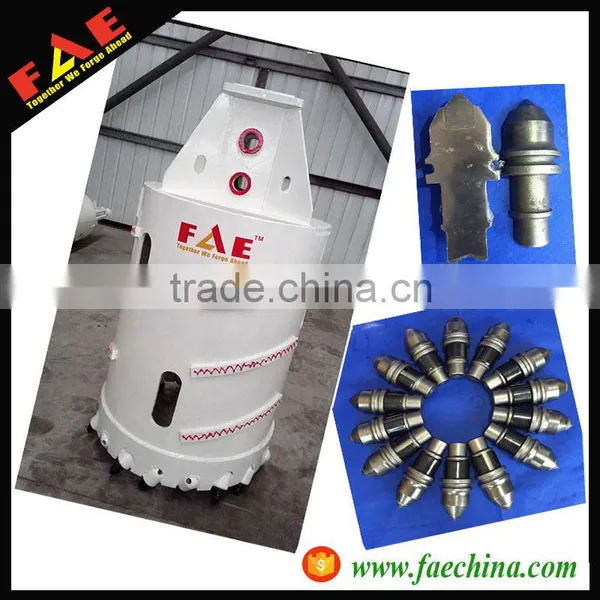

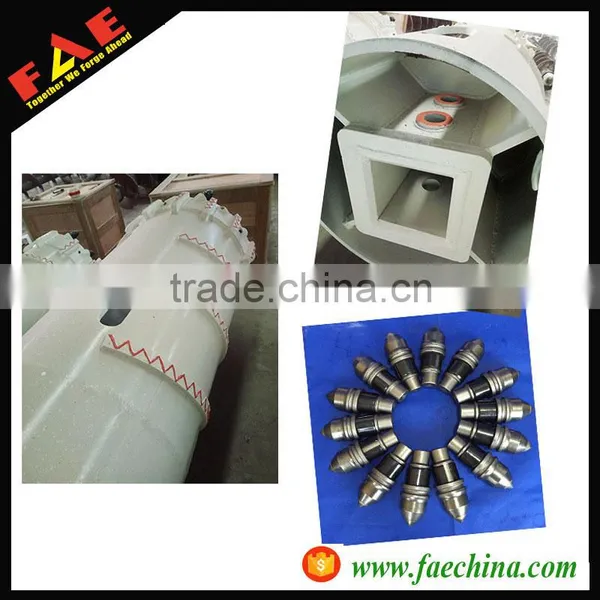

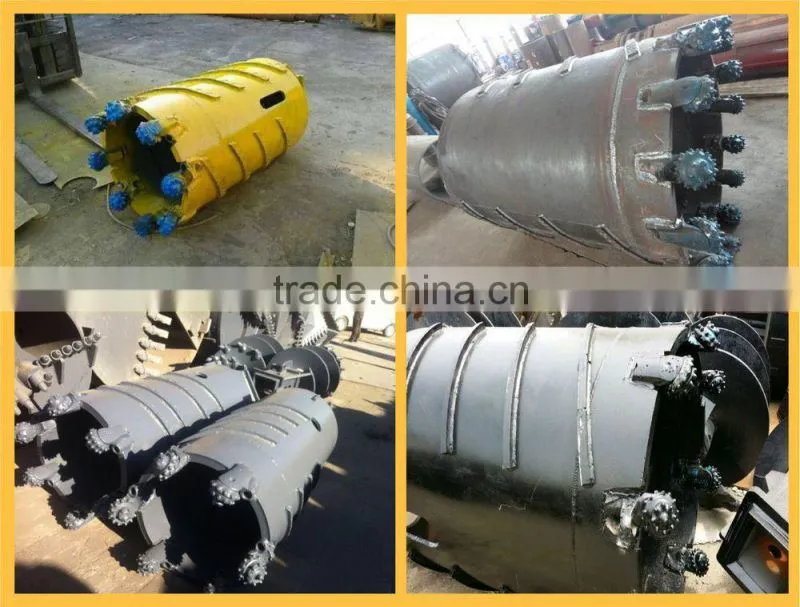

1) Rock core barrel
Drilling diamter:520mm-2500mm
Shell length:800mm-1500mm
Material:16Mn/Q345C
Main applications:
Core barrel are used for hard layer and coring.
|
Drilling Dia mm |
Shell Dia mm |
Shell length mm |
Shell thickness mm |
Teeth No pcs |
Material |
Weight kg |
| 600 | 570 | 1200 | 16 | 6 | 16Mn | 600 |
| 700 | 670 | 1200 | 16 | 7 | 16Mn | 700 |
| 800 | 770 | 1200 | 16 | 9 | 16Mn | 800 |
| 900 | 870 | 1200 | 16 | 9 | 16Mn | 900 |
| 1000 | 970 | 1200 | 16 | 11 | 16Mn | 1020 |
| 1200 | 1170 | 1200 | 16 | 13 | 16Mn | 1150 |
| 1250 | 1220 | 1200 | 16 | 13 | 16Mn | 1280 |
| 1400 | 1370 | 1200 | 16 | 15 | 16Mn | 1350 |
| 1500 | 1470 | 1200 | 20 | 15 | 16Mn | 1450 |
| 1800 | 1770 | 1000 | 20 | 19 | 16Mn | 2100 |
*Any other bigger sizes can be made by customer demand.
Features:
-Kelly box size as per customer's demand
-Bucket thickness can be made 16mm or 20mm as customer's demand

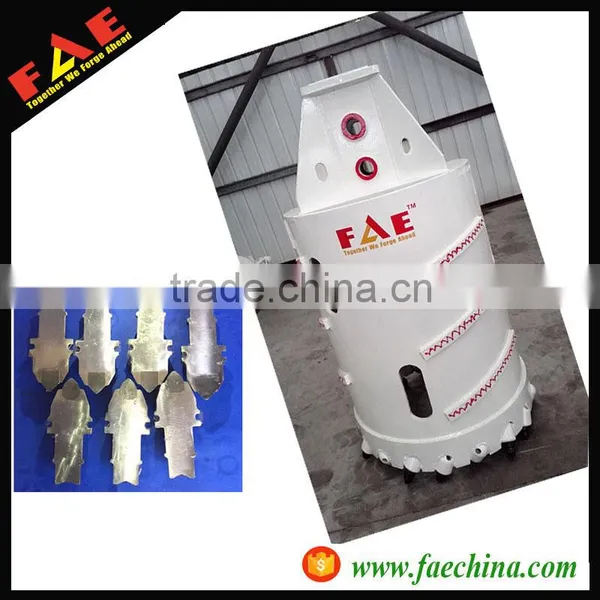

-Teeth type:B47K-22H/3050.with round holder or roller bits.

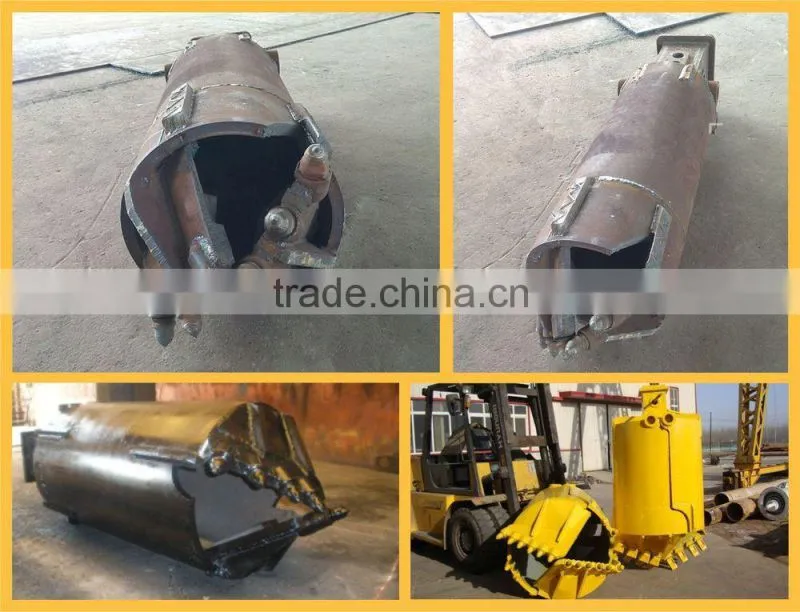

2) Mud bucket
Drilling diameter range:600-1200mm
Shell Length:1200mm
Meterial:Q345C
|
Drilling Dia mm |
Shell Dia mm |
Shell length mm |
Bucket thickness mm |
Material |
| 600 | 570 | 1200 | 16 | 16Mn |
| 700 | 670 | 1200 | 16 | 16Mn |
| 800 | 770 | 1200 | 16 | 16Mn |
| 900 | 870 | 1200 | 16 | 16Mn |
| 1000 | 970 | 1200 | 16 | 16Mn |
| 1200 | 1170 | 1200 | 16 | 16Mn |
| 1250 | 1220 | 1200 | 16 | 16Mn |
| 1400 | 1370 | 1200 | 16 | 16Mn |
| 1500 | 1470 | 1200 | 20 | 16Mn |
Features:
-Mud drilling bucket are used for silt or mud layer
-Kelly box size as per customer demand
-Bucket thickness: 30/40 mm
-Cantboard thickness:50mm
-Teeth type : V19/V20 teeth

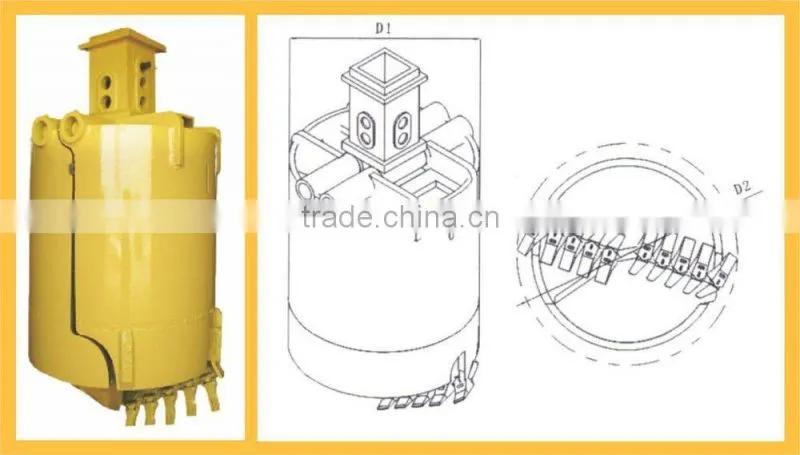

3) Soil and Rock drilling bucket
There are two types for rock and clay drilling buckets
A-Single cut drillng bucket;
B-Double cut drilling bucket;
Drilling diamter:520mm-2500mm;
Shell length:800mm-1500mm;
Material:Q345C;
Main applications:
-Suitable for drillng in clay,soil and loose to medium dense sand and gravel
-Single bottom drilling bucket are used for clay layer
-Double bottom drilling bucket are mainly used for bigger diameter uncased boreholes
-Suitable for drilling in rock layer and sandy gravel.
|
Drilling Dia mm |
Shell Dia mm |
Shell length mm |
Bucket thickness mm |
Teeth No pcs |
Material |
| 600 | 570 | 1200 | 16 | 4 | 16Mn |
| 700 | 670 | 1200 | 16 | 4 | 16Mn |
| 800 | 770 | 1200 | 16 | 4 | 16Mn |
| 900 | 870 | 1200 | 16 | 5 | 16Mn |
| 1000 | 970 | 1200 | 16 | 5 | 16Mn |
| 1200 | 1170 | 1200 | 16 | 7 | 16Mn |
| 1250 | 1220 | 1200 | 16 | 7 | 16Mn |
| 1400 | 1370 | 1200 | 16 | 8 | 16Mn |
| 1500 | 1470 | 1200 | 20 | 9 | 16Mn |
| 1600 | 1570 | 1200 | 20 | 9 | 16Mn |
| 1800 | 1770 | 1000 | 20 | 12 | 16Mn |
| 2000 | 1970 | 1000 | 20 | 15 | 16Mn |
What is FAE core barrel?
What is FAE core barrel and packing?
What are FAE business cooperation ?
What are FAE delivery?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
