Excavator Clean up Mud Buckets Suit for Different Brand
- China Port/Shanghai/shenzhen/Tianjin
- T/T Credit Card
You May Like
-
Excavator Mud Bucket With Bolt on Cutting Edge
-
Excavator Clean up Mud Buckets With Bolt on Cutting Edge
-
FAE Top Quality Drilling Bucket With Open Body,open Body Drilling Bucket
-
FAE Rock Double-bottom Double Open Rock Drilling Bucket
-
FAE Rock Bucket With Double Bottom Single Cutting Edge for Drilling Rigs
-
FAE Hot Sale 2 Petals Drilling Bucket With Well Drilling Teeth, Clay Drilling Bucket With Bauer Teeth
Product Details
| Place of Origin | Hunan, China | Brand Name | FAE | |
| Model Number | 520-2500mm drilling diameter |
Product Description

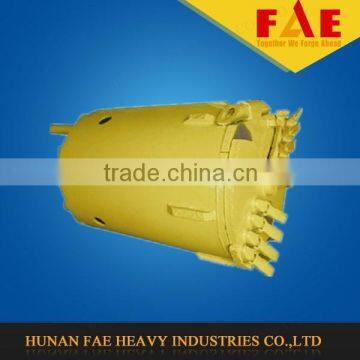

FAE mud bucket
What FAE could offer?
We can produce the variety of drill tools,
-soil drilling bucket;
-rock drilling bucket;
-rock core barrels;
-mud(two-petal) drilling bucket;
1) Rock core barrel
Drilling diamter:520mm-2500mm
Shell length:800mm-1500mm
Material:16Mn/Q345C
Main applications:
Core barrel are used for hard layer and coring.
Drilling Dia mm | Shell Dia mm | Shell length mm | Shell thickness mm | Teeth No pcs | Material | Weight kg |
| 600 | 570 | 1200 | 16 | 6 | 16Mn | 600 |
| 700 | 670 | 1200 | 16 | 7 | 16Mn | 700 |
| 800 | 770 | 1200 | 16 | 9 | 16Mn | 800 |
| 900 | 870 | 1200 | 16 | 9 | 16Mn | 900 |
| 1000 | 970 | 1200 | 16 | 11 | 16Mn | 1020 |
| 1200 | 1170 | 1200 | 16 | 13 | 16Mn | 1150 |
| 1250 | 1220 | 1200 | 16 | 13 | 16Mn | 1280 |
| 1400 | 1370 | 1200 | 16 | 15 | 16Mn | 1350 |
| 1500 | 1470 | 1200 | 20 | 15 | 16Mn | 1450 |
| 1800 | 1770 | 1000 | 20 | 19 | 16Mn | 2100 |
Any other bigger sizes can be made by customer demand.
Features:
-Kelly box size as per customer's demand
-Bucket thickness can be made 16mm or 20mm as customer's demand
-Teeth type:B47K-22H/3050.with round holder or roller bits.
2) Mud bucket
Drilling diameter range:600-1200mm
Shell Length:1200mm
Meterial:Q345C
Drilling Dia mm | Shell Dia mm | Shell length mm | Bucket thickness mm | Material |
| 600 | 570 | 1200 | 16 | 16Mn |
| 700 | 670 | 1200 | 16 | 16Mn |
| 800 | 770 | 1200 | 16 | 16Mn |
| 900 | 870 | 1200 | 16 | 16Mn |
| 1000 | 970 | 1200 | 16 | 16Mn |
| 1200 | 1170 | 1200 | 16 | 16Mn |
| 1250 | 1220 | 1200 | 16 | 16Mn |
| 1400 | 1370 | 1200 | 16 | 16Mn |
| 1500 | 1470 | 1200 | 20 | 16Mn |
Features:
-Mud drilling bucket are used for silt or mud layer
-Kelly box size as per customer demand
-Bucket thickness: 30/40 mm
-Cantboard thickness:50mm
-Teeth type : V19/V20 teeth
What is FAE mud bucket and packing?
What are FAE business cooperation?
What are FAE mud bucket delivery?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
