Single-head Single-spiral Rock Drilling Auger

Single-head Single-spiral Rock Drilling Auger thumbnail-1
Single-head Single-spiral Rock Drilling Auger thumbnail-2
Single-head Single-spiral Rock Drilling Auger thumbnail-3
Single-head Single-spiral Rock Drilling Auger thumbnail-4
Single-head Single-spiral Rock Drilling Auger thumbnail-5
Single-head Single-spiral Rock Drilling Auger thumbnail-6
Single-head Single-spiral Rock Drilling Auger photo-1
Single-head Single-spiral Rock Drilling Auger photo-2
Single-head Single-spiral Rock Drilling Auger photo-3
Single-head Single-spiral Rock Drilling Auger photo-4
Single-head Single-spiral Rock Drilling Auger photo-5
Single-head Single-spiral Rock Drilling Auger photo-6
US$ 1,500 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
FAE
Model Number:
600-1800mm drilling diameter
Contact Supplier Request Quote Chat Now
Hunan Fae Heavy Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port/Shanghai/shenzhen/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name FAE
Model Number 600-1800mm drilling diameter



FAE drilling auger



What FAE drilling auger could offer?

 Drill augers are divided into three types:

1-Conical auger

2-Flat rock auger

3-Continuous flight auger and auger head

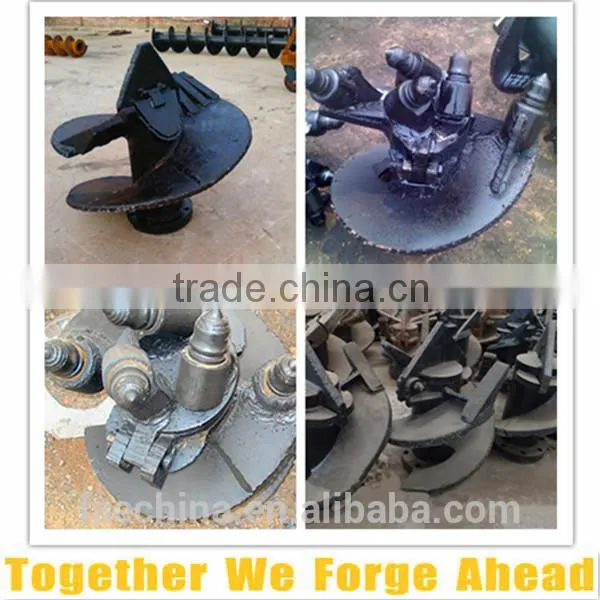

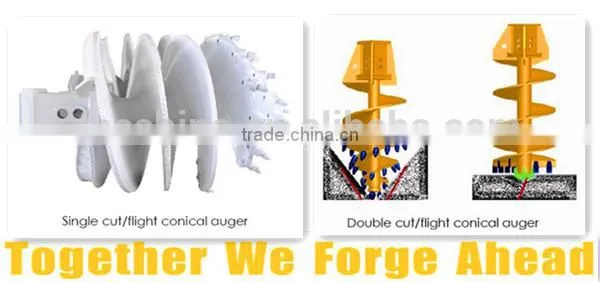

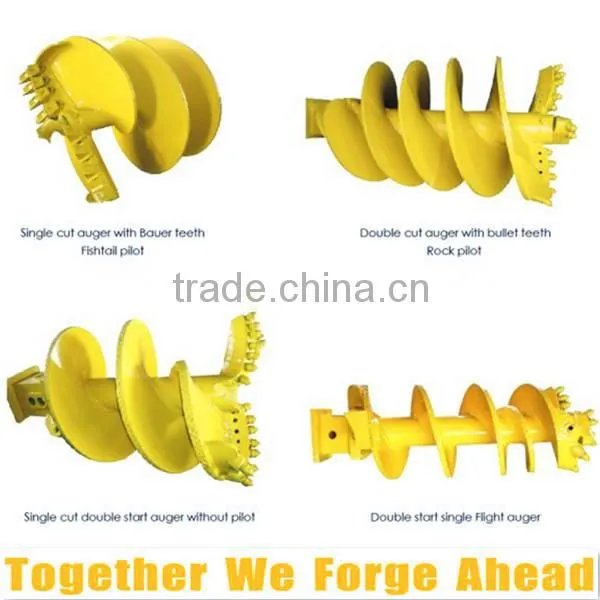

1) Conical rock auger

There are two types for conical rock augers:

A-Single cut auger

B-Double cut auger



Drilling diameter range:600-1800mm

Centre pipe thickness:30mm

Flight thickness:20/30mm

Drilling Dia

mm

Shell Dia

mm

Shell Length

mm

Bucket thickness

mm

 Material
600 570 1200 20/30 16Mn
700 670 1200 20/30 16Mn
800 770 1200 20/30 16Mn
900 870 1200 20/30 16Mn
1000 970 1200 20/30 16Mn
1200 1170 1200 20/30 16Mn
1250 1220 1200 20/30 16Mn
1400 1370 1200 20/30 16Mn
1500 1470 1200 20/30 16Mn
1800 1770 1200 20/30 16Mn

Other sizes could be manufactured as per customer's demand

Kelly box size as per customer's demand

single-head single-spiral rock drilling auger



single-head single-spiral rock drilling auger

2)Flat rock auger

There are two types for flat rock auger:

A-Single cut/flight auger

B-Double cut/flight auger



Drilling diamter range:600-1800mm

Centre pipe thickness:30mm

Flight thickness:20/30mm



Drilling Dia

mm

Shell Dia

mm

Shell Length

mm

Bucket thickness

mm

 Material
600 570 1200 20/30 16Mn
700 670 1200 20/30 16Mn
800 770 1200 20/30 16Mn
900 870 1200 20/30 16Mn
1000 970 1200 20/30 16Mn
1200 1170 1200 20/30 16Mn
1250 1220 1200 20/30 16Mn
1400 1370 1200 20/30 16Mn
1500 1470 1200 20/30 16Mn
1800 1770 1200 20/30 16Mn

Other sizes could be manufactured as per customer's demand

Kelly box size as per customer's demand



single-head single-spiral rock drilling auger

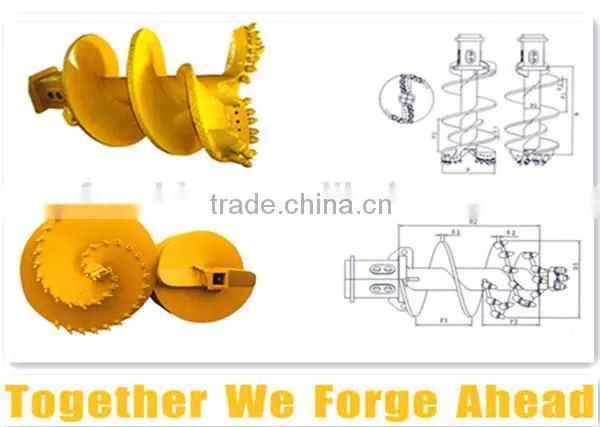

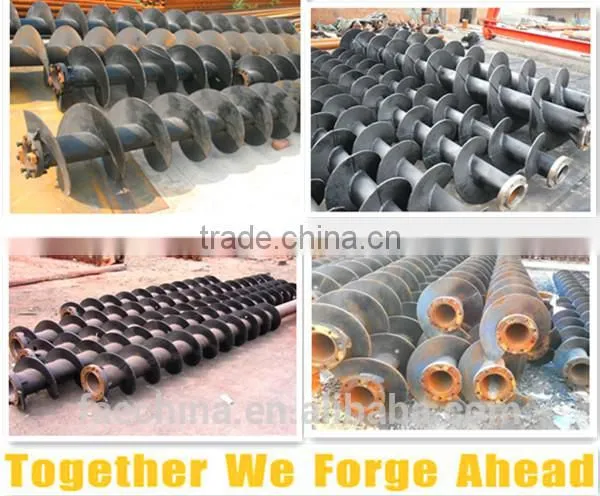

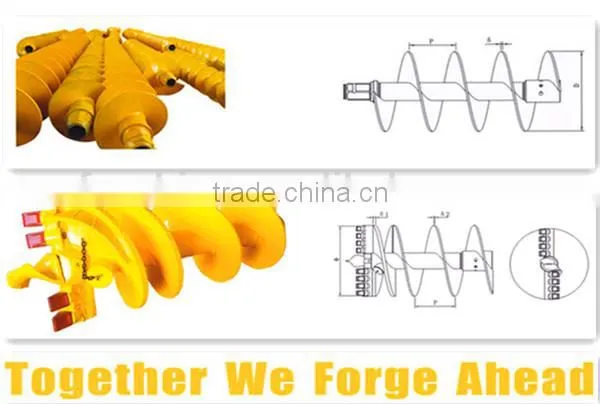

3)Continuous flight auger and auger head



Diameter

mm

 Coupling type

Flight thickness

mm

Length

m

Flight pitch

mm

Weight

kg
400 optional 16 2 3 4 5 6 340 283 386 489 592 695
500 optional 16 2 3 4 5 6 400 465 638 811 983 1156
600 optional 20 2 3 4 5 6 500 526 730 933 1137 1340
800 optional 20 2 3 4 5 6 500 671 948 1223 1499 1775
1000 optional 25 2 3 4 5 6 600 856 1225 1592 1961 2329



Diameter

mm

Flight pitch

mm

Flight thickness(top)

mm

Flight thickness(bottom)

mm

 Weight
400 340 30 16 254
500 400 30 16 386
600 500 40 20 449
800 500 40 20 603
1000 600 40 20 797



 single-head single-spiral rock drilling auger

single-head single-spiral rock drilling auger

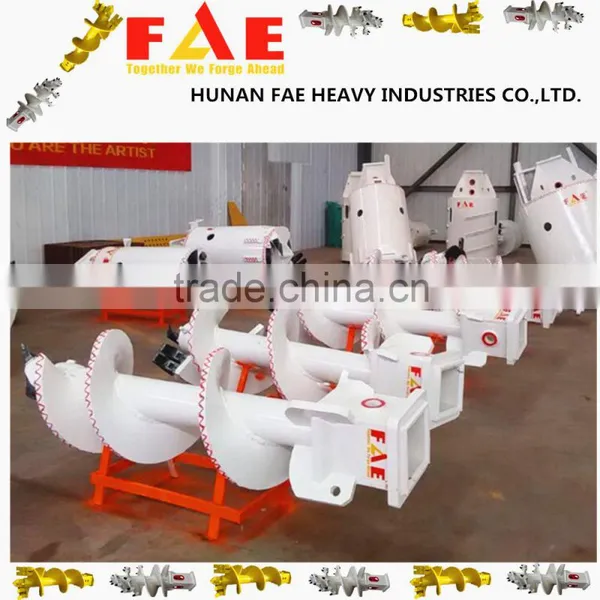

What are FAE drilling auger products?

single-head single-spiral rock drilling auger



single-head single-spiral rock drilling augersingle-head single-spiral rock drilling auger





single-head single-spiral rock drilling auger

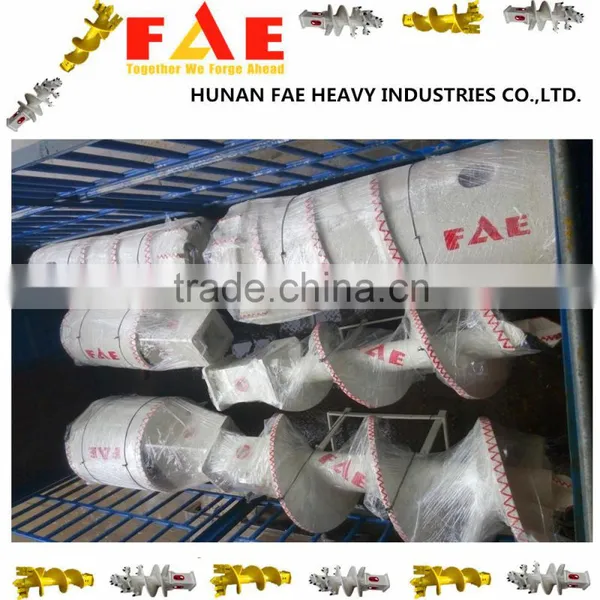

What are FAE drilling auger packing?

single-head single-spiral rock drilling augersingle-head single-spiral rock drilling augersingle-head single-spiral rock drilling augersingle-head single-spiral rock drilling auger



What are FAE drilling auger delivery?

single-head single-spiral rock drilling auger







Awaiting for your inquiry,we will response you at the first time!



Please contact us from this page or find our contacts from the Index page of our site.











FAE website for your further information:



WWW.FAECHINA.COM
