Home > Products > DRILLIING TOOLS > Construction Machine Excavator Drilling Auger,earth Drill for Digging Hole
Construction Machine Excavator Drilling Auger,earth Drill for Digging Hole
- China Port/Shanghai/shenzhen/Tianjin
- T/T Money Gram Credit Card
You May Like
-
Drilling Auger With Double Start Head ,customized Cutting Tooth,hot Sales
-
Rock Formation Double Cut Double Flight Conical Drilling Auger
-
Construction Machine Excavator Drilling Auger, Earth Drill
-
Cohesive Soil/Gravel/Soft Rock Butterfly Drilling Spiral Auger
-
Silt And Clay/Sand And Gravel Up To Very Dense Rock Drilling Auger
-
Bullet Teeth Spiral Auger, Rock Bits Conical Auger, Double Cutting Double Flight Conical Drilling Auger
Product Details
| Place of Origin | Hunan, China | Brand Name | FAE | |
| Model Number | 600-1800mm drilling diameter |
Product Description
FAE drilling auger
What FAE drilling auger could offer?
Drill augers are divided into three types:
1-Conical auger
2-Flat rock auger
3-Continuous flight auger and auger head

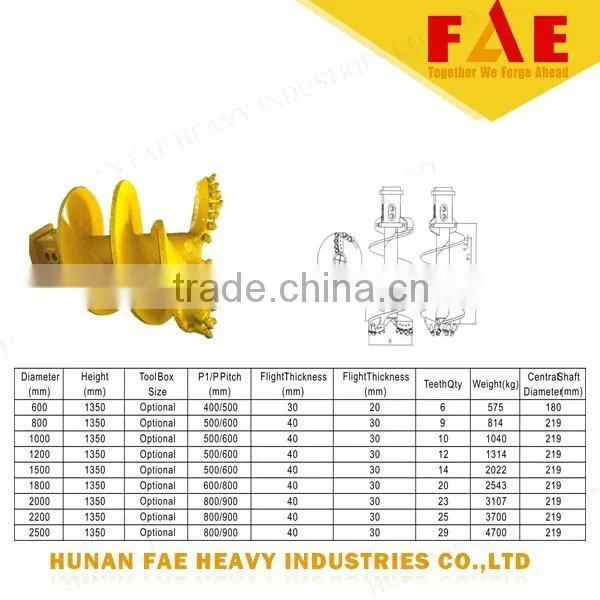

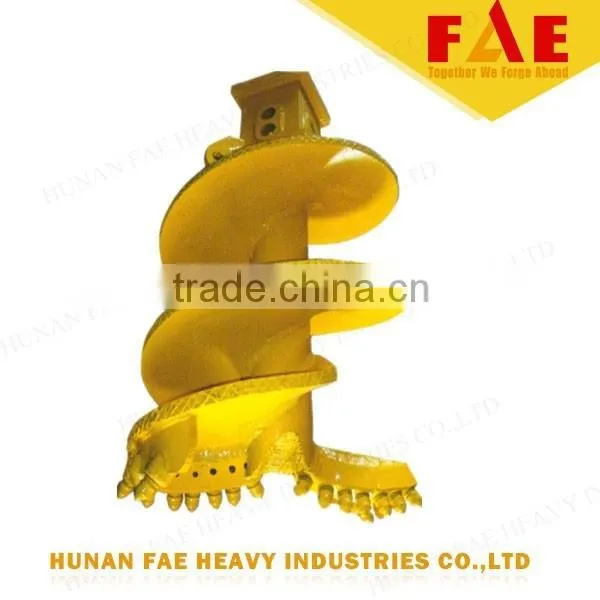

1) Conical rock auger
There are two types for conical rock augers:

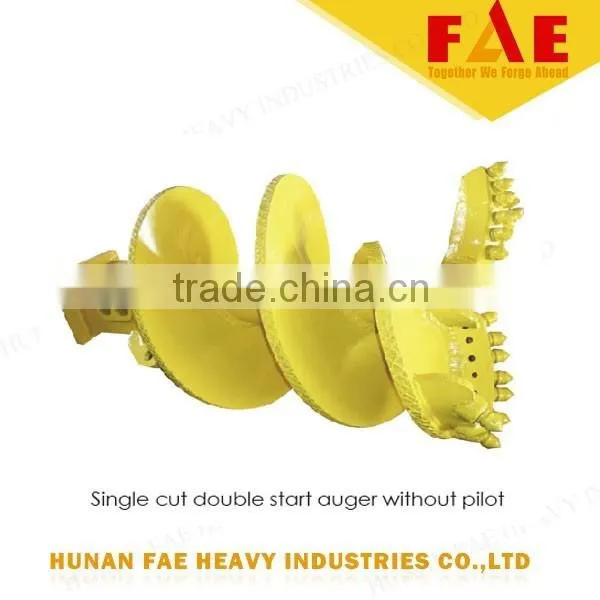

A-Single cut auger
B-Double cut auger
Drilling diameter range:600-1800mm
Centre pipe thickness:30mm
Flight thickness:20/30mm
Drilling Dia mm | Shell Dia mm | Shell Length mm | Bucket thickness mm | Material |
| 600 | 570 | 1200 | 20/30 | 16Mn |
| 700 | 670 | 1200 | 20/30 | 16Mn |
| 800 | 770 | 1200 | 20/30 | 16Mn |
| 900 | 870 | 1200 | 20/30 | 16Mn |
| 1000 | 970 | 1200 | 20/30 | 16Mn |
| 1200 | 1170 | 1200 | 20/30 | 16Mn |
| 1250 | 1220 | 1200 | 20/30 | 16Mn |
| 1400 | 1370 | 1200 | 20/30 | 16Mn |
| 1500 | 1470 | 1200 | 20/30 | 16Mn |
| 1800 | 1770 | 1200 | 20/30 | 16Mn |
Other sizes could be manufactured as per customer's demand
Kelly box size as per customer's demand

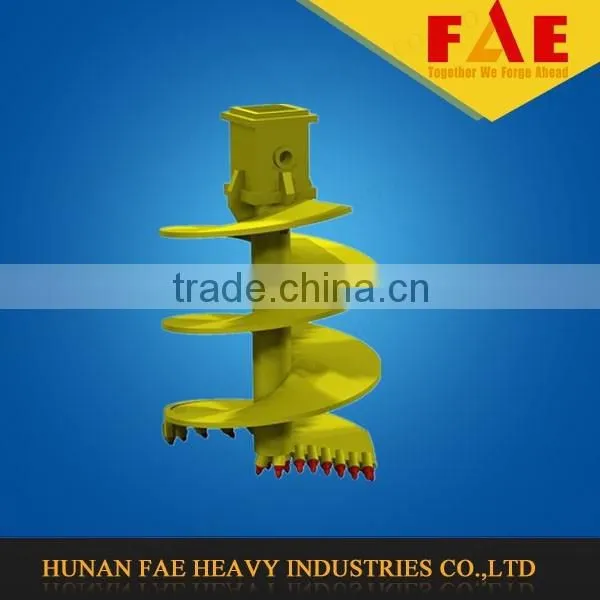

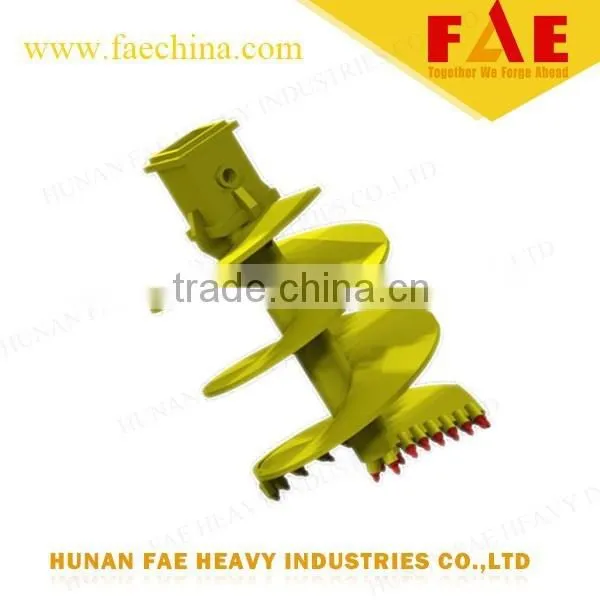

2)Flat rock auger
There are two types for flat rock auger:
A-Single cut/flight auger
B-Double cut/flight auger
Drilling diamter range:600-1800mm
Centre pipe thickness:30mm
Flight thickness:20/30mm
Drilling Dia mm | Shell Dia mm | Shell Length mm | Bucket thickness mm | Material |
| 600 | 570 | 1200 | 20/30 | 16Mn |
| 700 | 670 | 1200 | 20/30 | 16Mn |
| 800 | 770 | 1200 | 20/30 | 16Mn |
| 900 | 870 | 1200 | 20/30 | 16Mn |
| 1000 | 970 | 1200 | 20/30 | 16Mn |
| 1200 | 1170 | 1200 | 20/30 | 16Mn |
| 1250 | 1220 | 1200 | 20/30 | 16Mn |
| 1400 | 1370 | 1200 | 20/30 | 16Mn |
| 1500 | 1470 | 1200 | 20/30 | 16Mn |
| 1800 | 1770 | 1200 | 20/30 | 16Mn |
Other sizes could be manufactured as per customer's demand
Kelly box size as per customer's demand
3)Continuous flight auger and auger head
Diameter mm | Coupling type | Flight thickness mm | Length m | Flight pitch mm | Weight kg |
| 400 | optional | 16 | 2 3 4 5 6 | 340 | 283 386 489 592 695 |
| 500 | optional | 16 | 2 3 4 5 6 | 400 | 465 638 811 983 1156 |
| 600 | optional | 20 | 2 3 4 5 6 | 500 | 526 730 933 1137 1340 |
| 800 | optional | 20 | 2 3 4 5 6 | 500 | 671 948 1223 1499 1775 |
| 1000 | optional | 25 | 2 3 4 5 6 | 600 | 856 1225 1592 1961 2329 |
Diameter mm | Flight pitch mm | Flight thickness(top) mm | Flight thickness(bottom) mm | Weight |
| 400 | 340 | 30 | 16 | 254 |
| 500 | 400 | 30 | 16 | 386 |
| 600 | 500 | 40 | 20 | 449 |
| 800 | 500 | 40 | 20 | 603 |
| 1000 | 600 | 40 | 20 | 797 |
What are FAE drilling auger products?
What are FAE drilling auger packing?
What are FAE drilling auger delivery?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
