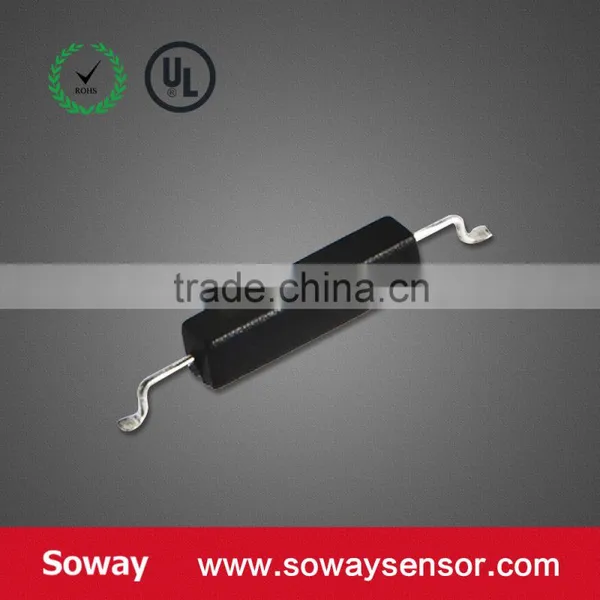

Mouled SMD reed switch
Dimensions:
Features
·Form A,B,C available
·Low power switches avaible
·The size can be customized
Applications
·Telecommunications
·Telephone hook switch, keyboard applications, micro switch
·Domestic applocances
·Door switch for washing machines, dishwashers, microware/baking ovens, refrigerators etc.
·Limit switch for low power signals
·Garage door control, lever hoists, conveyors
·Lifts/elevators
·Position indicators
Specifications
Parametes |
Units |
Value |
Test Conditions |
Contact Form |
A type contact |
||
Contact Rating |
W – max. |
10 |
|
Switching Voltage |
V – max. |
AC140 DC200 |
|
Switching Current |
A – max. |
0.5 |
|
initial Contact Resistance |
– max. |
0.2 |
|
Insulation Resistance |
– min. |
106 |
|
Contact Capacitance |
pF – typ. |
0.8 |
|
Electrical Life |
Cycles – min. |
8 10 |
10mV, 10mA |
Operating Temperature |
°C |
-40 ~ +100 |
|
