| DETAILED DESCRIPTION |
The equipment uses the magnetron sputtering cathode glow discharge technique to ionize and deposit the molecule(target) on the base material(PVD), as well as the resistance heating technique in the vacuum to melt the metal wire and or vaporize the metal molecule. Thus it can metallize the plastic surface of the base material, mobile phone shell, etc. Use the special filming to achieve the function of nonconductive products and electromagnetism shield, thereby to reach the standard of high-end electronic products manufacturing industry .It's used to apply chrome,stainless steel,titanium,copper etc film on product surface to make metallization.
| BRIEF INTRODUCTION | |
The equipment integrates the plasma treatment, high-end cathode magnetron sputtering, resistance evaporation coating technology.The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall.
| WORKING PRINCIPLE | |
·The whole process like vacuum pumping, plasma cleaning, chrome or other film deposition, deflating etc. It's all running fully automaticly inside the vacuum chamber.
·Two doors (optional) with 6-axis (also 8 axis optional) rotation &revolution jig and evaporation motor. When one door is under vacuum coating process, another door could be loading or unloading the products at the same time. So the production performance is very excellent.
| APPLICATION |
Plastic, ceramic, computer, mobile phone, high-end industry, home appliance, aviation, etc. It can coat the composite metal film, alloy film, transparent (translucent) film, nonconductive film, electromagnetism shield film, special film, etc.
| TECHNICAL DATA |
| Mode | ZZ-1214 | ZZ-1218 | ZZ-1618 | ZZ-1820 |
| Dimension (D*H) | 1200*1400mm | 1200*1800mm | 1600*1800mm | 1800*2000mm |
| Power source | DC power supply, AC power supply, RF power supply, bias power supply | |||
| Structure | Vertical double door, vertical single door, horizontal single dooor, pumping system | |||
| Ultimate vacuum | 8.0*10-4Pa | |||
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump +Holding pump | |||
| Pump time | Pump from atmosphere to 5.0*10-2,<=6 minutes | |||
| Workpiece motion mode | Public rotation/ Frequency control | |||
| Control mode | Manual/Automatic all in one mode, Touch screen + PLC | |||
| Remark | We can design the dimension of the equipment according to customer’s special technique requirement. | |||

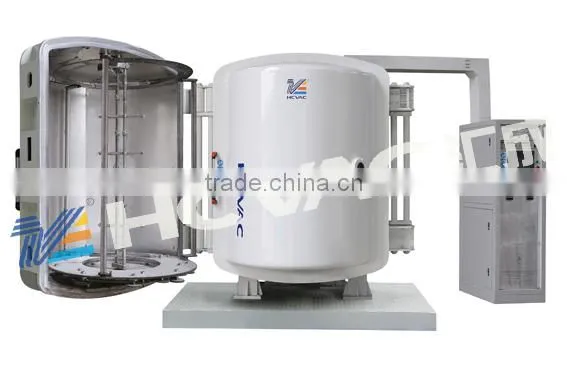

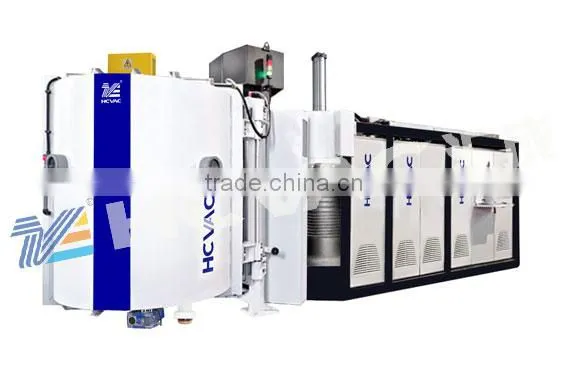

| COATING MACHINE PHOTOS |

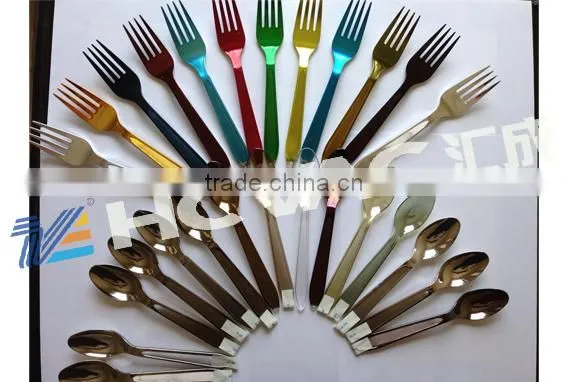

| SAMPLE PHOTOS | |
Car lights aluminum coating,reflective

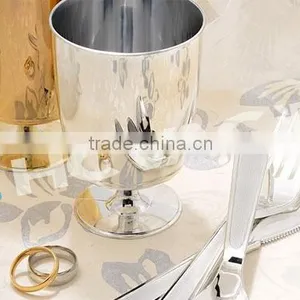

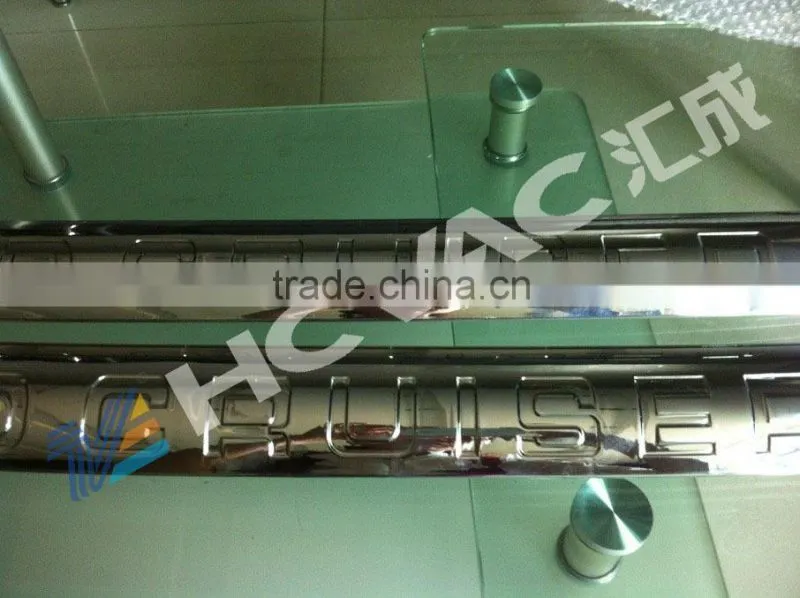

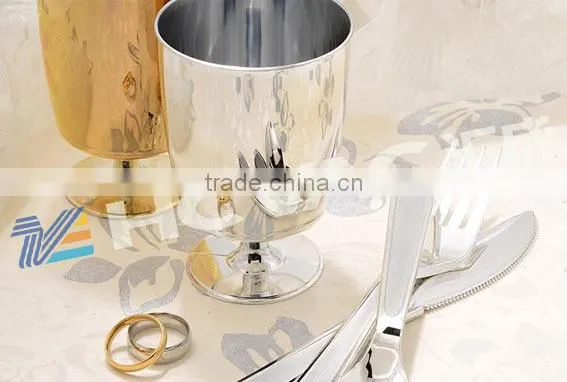

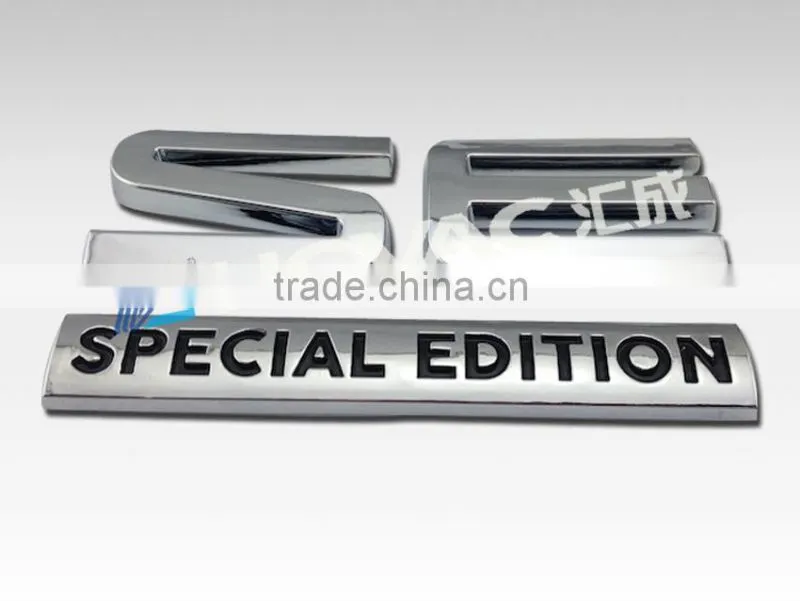

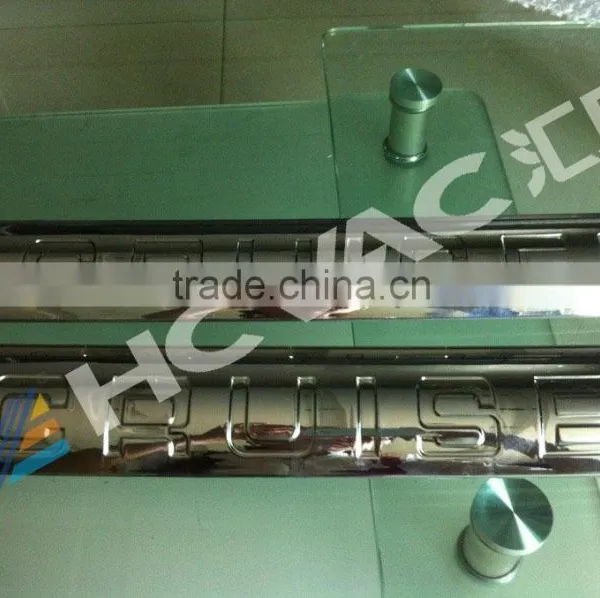

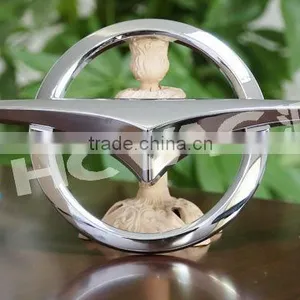

Chrome coating:
| ABOUT HUICHENG |
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
1.Professional sales person and technical team to lead you to invest the project with best budget.Turn-key project offering.
2.Quality control,high technology productivity to make sure the good quality machine production.
3.1 year warranty was provided since the date of delivery. In 1 year's warranty,For small problems about the machine,our profesional after-sales team will help to solve on line.For big problem,we will dispatch the engineer to your factory to solve problem.Large experienced engineer team is ready to serve all of you in the whole world.
| HUICHENG HONOR |
| SUCCESSFUL CASE |
|
We are ready to supply the turn-key project,pls do not hesitate to contact:
Contact person:Mandy Liu
Email: mandy(at)
