HCVAC-MAKE YOUR WORLD MORE BEAUTIFUL
Aluminum evaporation coating machine/vacuum evaporation machine/Thermal evaporation machine
(For plastic,resin,wood,glass metal ect)
The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
Applied industry: Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc.
Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;
Coating color:gold, silver, red, blue, green, purple, multi color, and so on
Technical parameter:
|
Mode Dimension |
ZZ-1214 |
ZZ-1416 |
ZZ-1618 |
ZZ-1820 |
1200*1400mm |
1400*1600mm |
1600*1800mm |
1800*2000mm |
|
Film Type |
Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc. |
|||
Power source Type |
Thermal evaporation power, ion bombard power, RF power |
|||
Vacuum chamber structure |
Vertical double/single door, horizontal single door, pump system postposition |
|||
Ultimate vacuum |
8.0*10-4Pa |
|||
Vacuum system |
Diffusion pump +Roots pump +Mechanical pump +Holding pump |
|||
Pump time |
Pump from atmosphere to 5.0*10-2,6 minutes |
|||
Workpiece motion mode |
Public rotation/Frequency control |
|||
Control mode |
Manual/Automatic all-in-one mode, Touching screen+PLC |
|||
Remark |
We can design the dimension of the vacuum chamber according to customer’s demand. |
|||
We can design the dimension of the vacuum chamber according to your requirements. We can also design and configure the vacuum unit and electric controlling system according to your requirement.
This is our machie:
Stainless steel chamber:

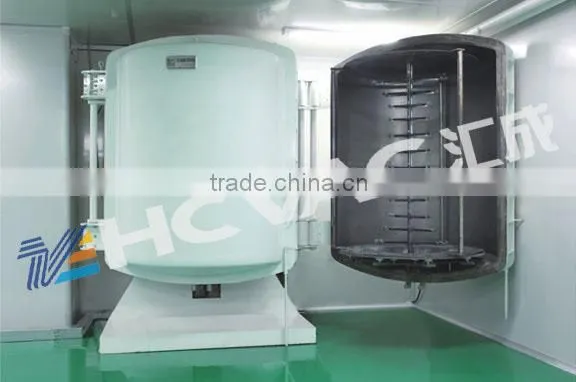

Carbon steel chamber:

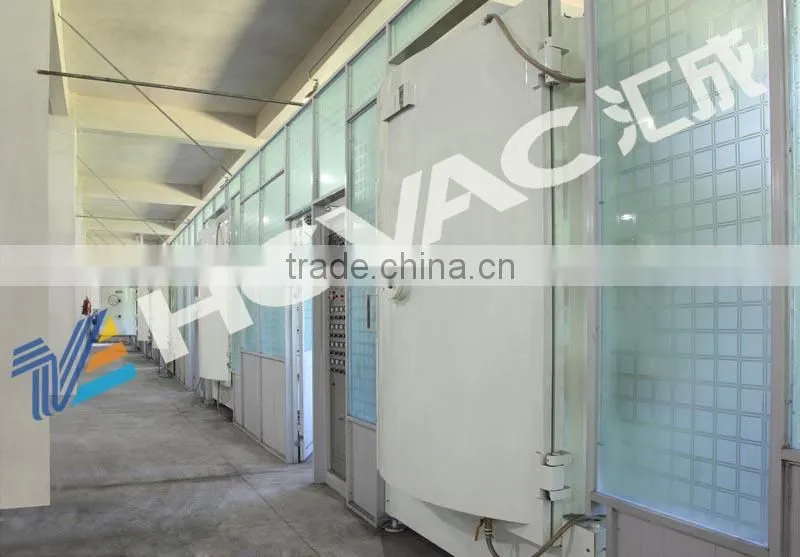

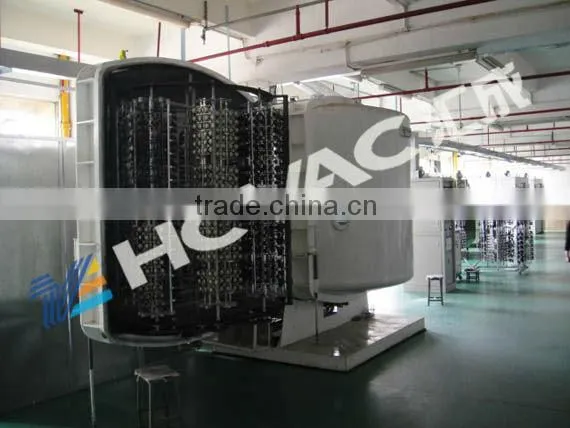

Machines running in our customer's factory:

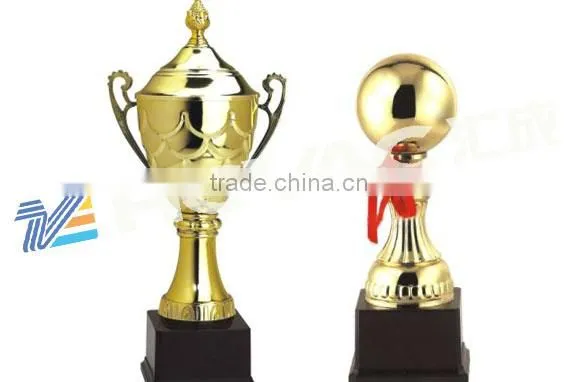

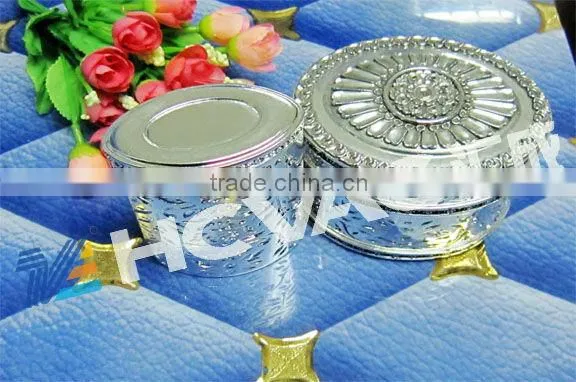

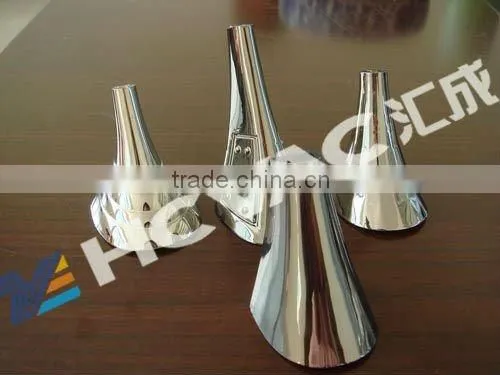

Samples coated by our machine:

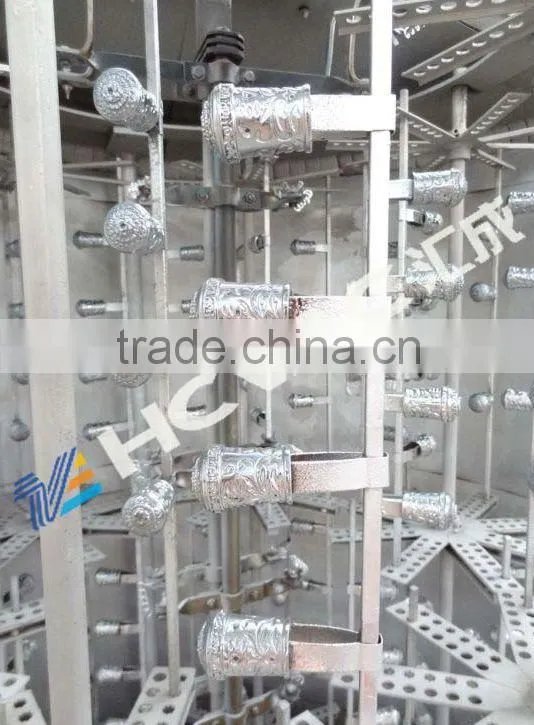

Inside structure:
Aluminum coating on shoe heels:
Aluminum coating on resin:
After aluminum coating(silver color),if you want others colors,you could spray the top painting to achive:
Plastic cap:
Plastic medals:

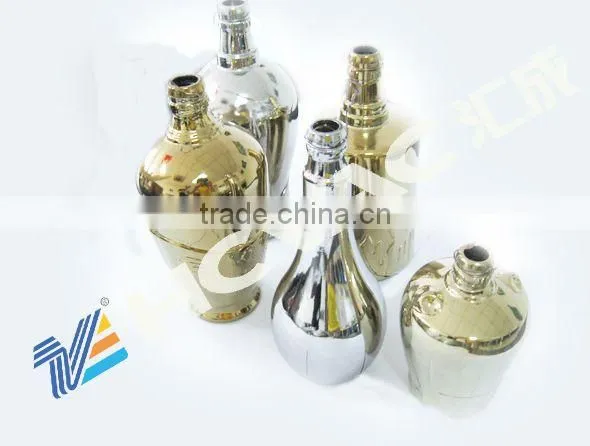

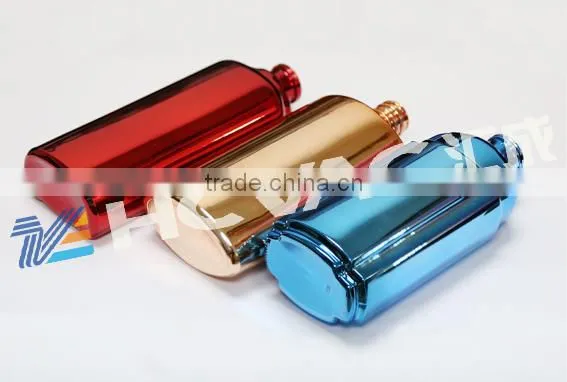

Glass bottle:

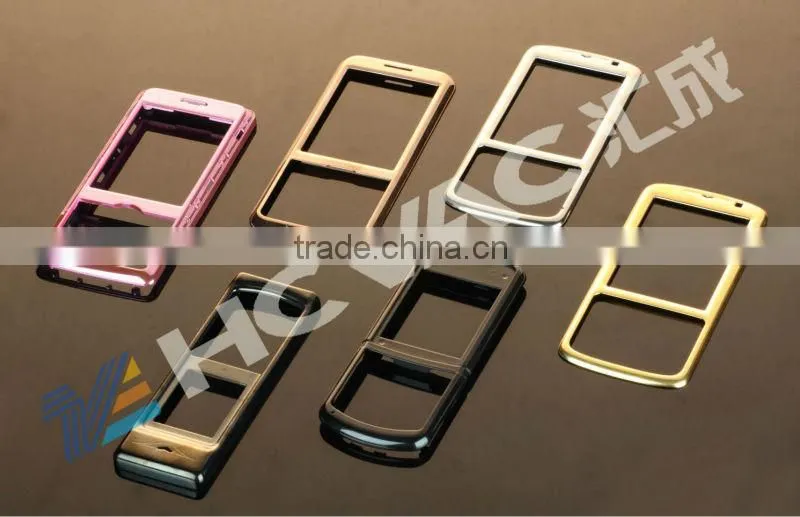

Mobile phone shell:
Reflective coating:(Add SIO system)
Quality management:
Some of our honours:
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part’s history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
