Profile
It is the equipment that applies zinc plating by dipping a sheet of hot-rolled steel into a molten zinc pot so as to be coated with zinc deposits.
•Steel grade :SGCC or DX51D
•Thickness:0.18-1.5 mm
•Width :1000 mm,1200mm,1250mm (The special width 914mm,1219mm,1220mm will be available )

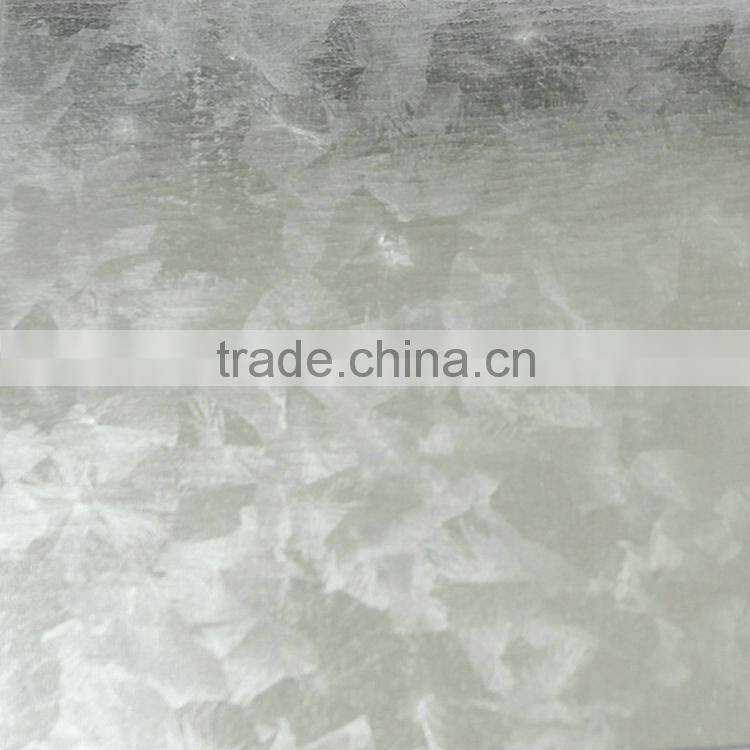

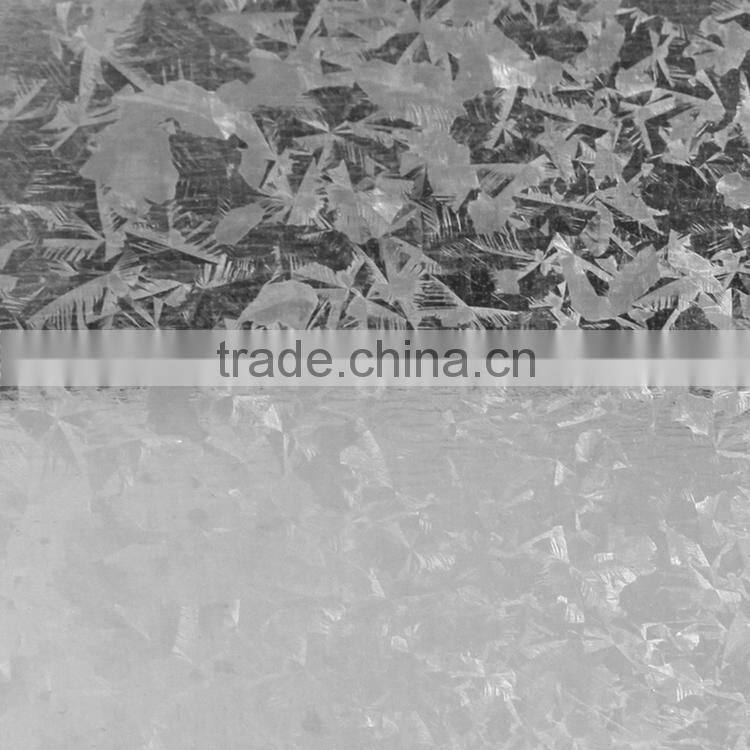

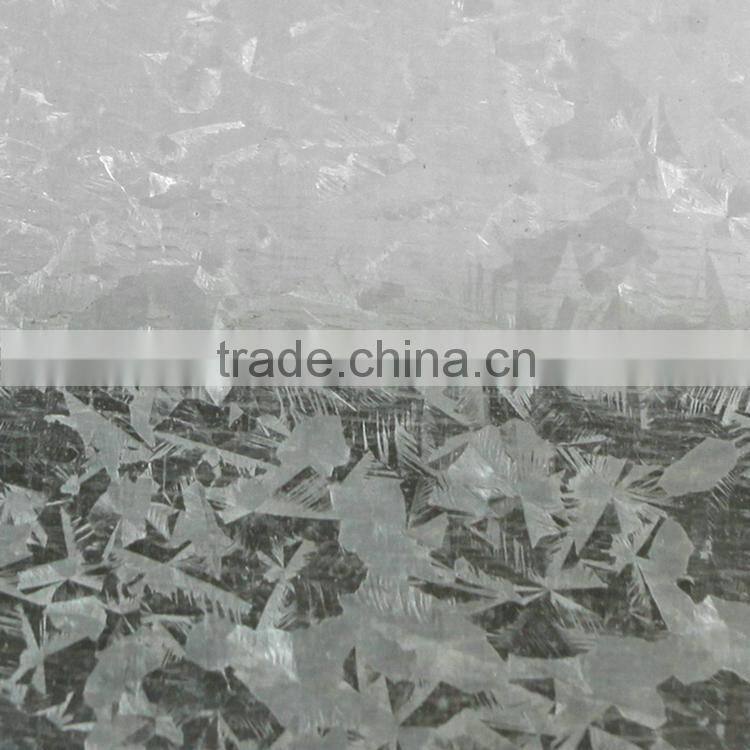

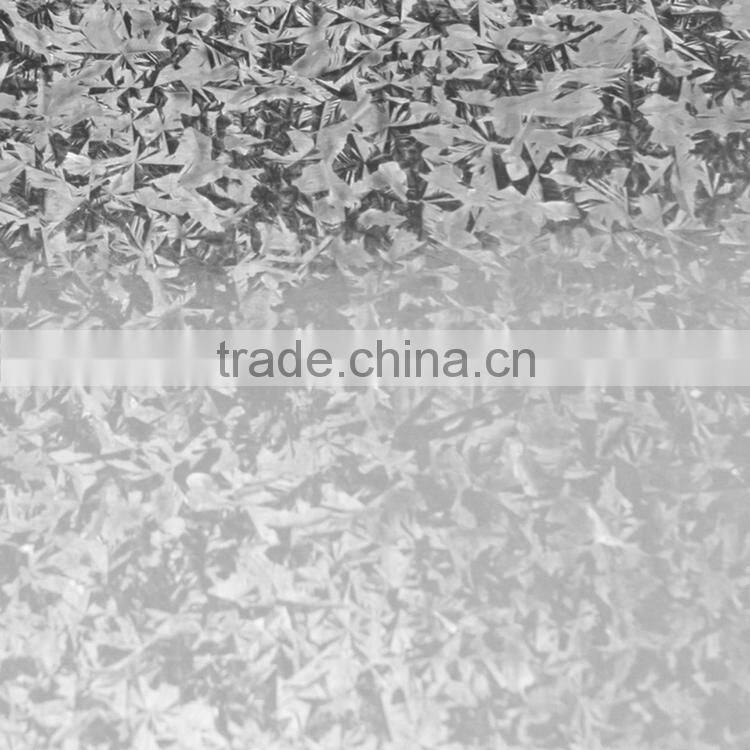

•Surface Finish: Regular Spangle, Minimized Spangle
•Coating Thickness; Min. Single Side coating Thickness: 50 g/sqm
Max. Single Side coating Thickness: 275 g/sqm
•Surface Treatment: Chromating Treatment, Oiled
•inside diameters :508 mm
•Outside diameter : according to the weight of coil
•weight/coil :3-8 ton
•Packing condition :seaworthy
Packing weight(without pallet):25 kgs
Packing weight(with pallet ):55 kgs
•Productivity:300,000 tons/year
•Delivery time :30 days (less than 500 ton )
2. Chemical Constituents
Base metal |
steel grade |
Chemical constitution (heat analysis)% |
|||||||
Cless than |
Siless than |
Mnless than |
Pless than |
Sless than |
Altless than |
Tiless than |
Nbless than |
||
|
Cold rolled base metal |
DX51D +Z |
0.1 |
0.3 |
0.5 |
0.035 |
0.035 |
- |
- |
- |
|
DX52D +Z |
0.08 |
- |
0.45 |
0.03 |
0.03 |
- |
- |
- |
|
|
DX53D +Z |
0.08 |
- |
0.4 |
0.03 |
0.03 |
- |
- |
- |
|
|
DX54D +Z |
0.01 |
0.1 |
0.3 |
0.025 |
0.02 |
0.015 |
0.1 |
- |
|
|
DX55D +Z |
0.01 |
0.1 |
0.3 |
0.025 |
0.02 |
0.015 |
0.1 |
0.1 |
|
3. Applications
1. Buildings and Construction
Floor Decks, Ceilings, Duct Work, Roofing, Siding, Sashes, Beams, Fences, Verandas, Shutters, Awnings, Partitions, Indoor Decorations, Pipes, Ventilators, Sheds, Culverts.
2. Transportation
Body Pane, Air Cleaners, Oil Filters, Fuel Tanks, Containers, Highway Barriers.
3. Appliances
Light Fittings, Washing Machines, Dryers, Coolers, Vending Machines, Water Heaters, Stoves, Refrigerators, Freezers, Tool Boxes.
4. Agriculture
Barns, Dryer Panels, Animal Houses, Hoppers. Bar Supporters, Irrigation Systems, Green houses.
5. Others
Furniture and Office Equipment, Entertainment Machines, Car Ports, Garden and Storage Sheds.
Prepainted galvanized steel coil Picture
Transport and packing
GB/T 3199-2007 Wrought aluminum and aluminum alloy products—packing, marking, transporting and storing will be applied.
Changzhou Dingang Metal Material Co., Ltd., located in Changzhou city of Jiangsu province, 200KM from Shanghai. The company is a market leader in manufacturing galvanized steel coil, aluzinc steel coil, pre painted steel coil, aluminum coil and pre painted aluminum coil since 1991.
The company provides a comprehensive range of application in many fields, such as buildings and construction, transportation, appliances, etc. With regards to the management of process, the company runs following the ISO9001:2008 and ISO14001:2004 standards, furthermore, the company is audited supplier which was presented by SGS and Made-in-China, ranking tenth in exporting value in Zhonglou District of Changzhou city in 2010.
Registered capital:15 million U.S. dollar (Equivalent to 95 million Yuan)
Main business: HDGI, HDGL, PPGI, PPGL, Aluminum coil, Pre painted aluminum coil.
Equipment and technology: Introducing Siemens electric control system in production lines.
Productive capacity: One full automatic galvanizing production line with output of 200,000 tons/year; two full automatic aluzinc steel production lines with output 350,000 tons/year, three full automatic color coating production lines with output of 450,000 tons/year; two pre painted aluminum lines with output 150, 00 tons/year.
Focus on developing wide production and improving quality, we are working-on-it all the time, we hope you can visit or contact us, and give us your valuable suggestions.
