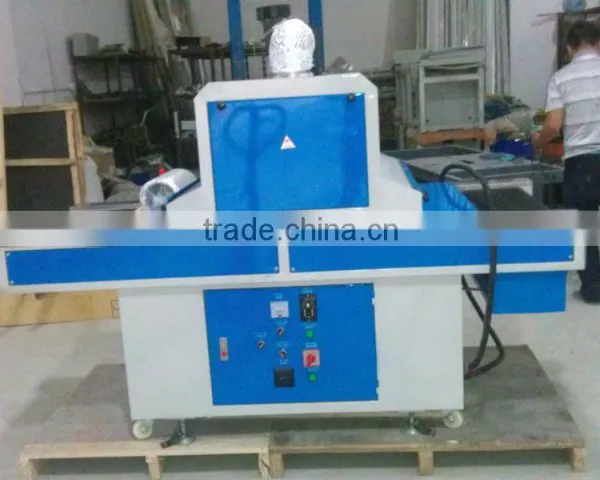

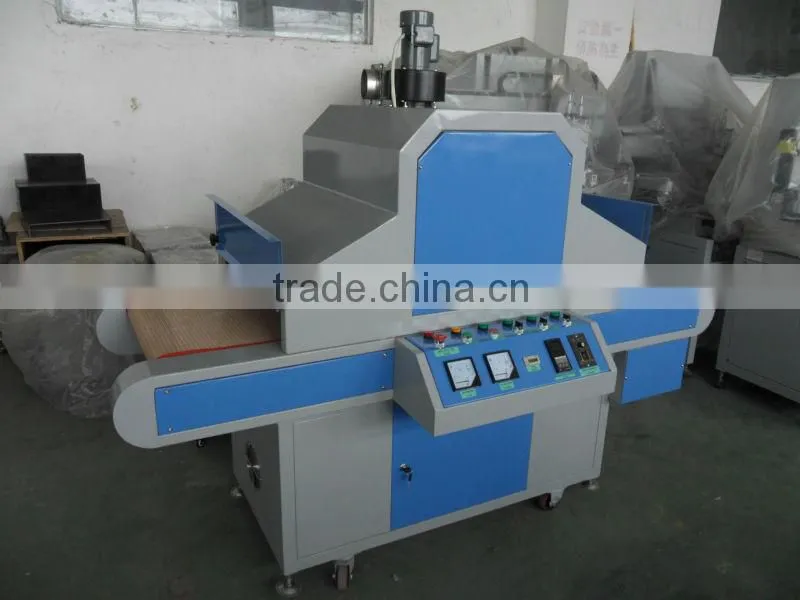

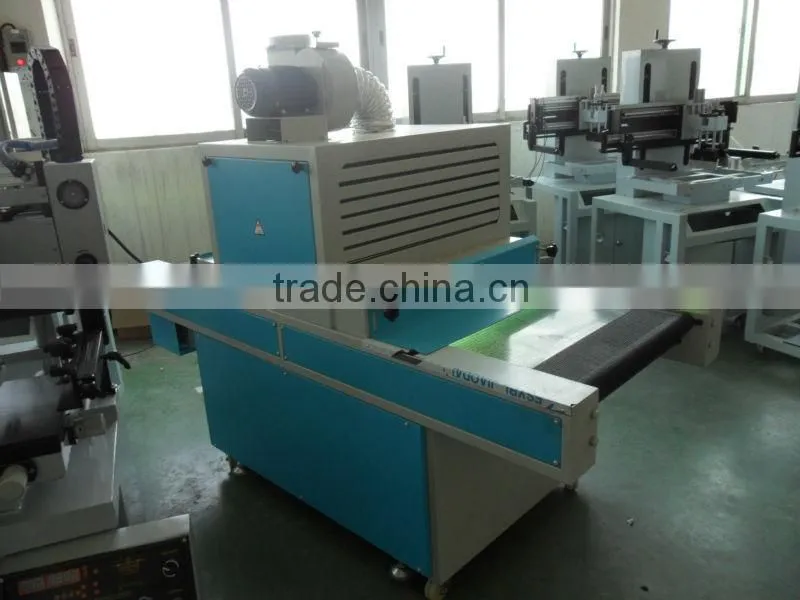

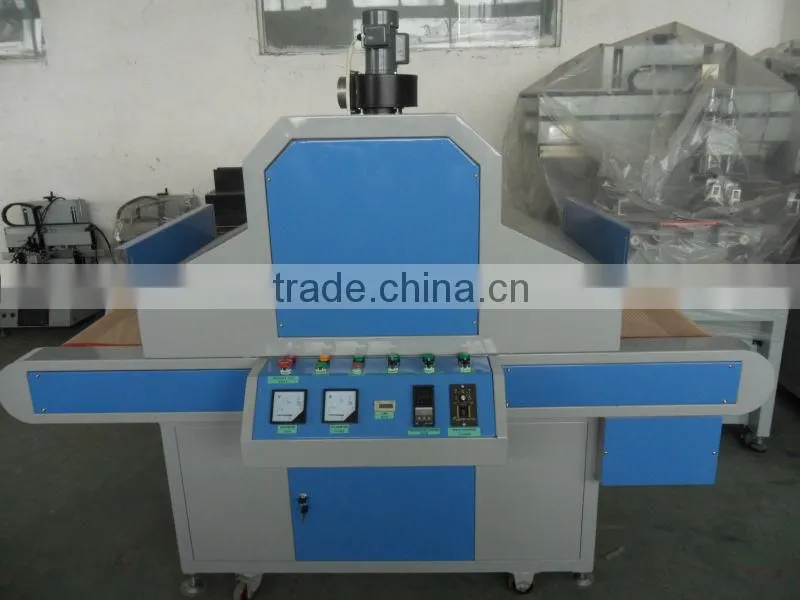

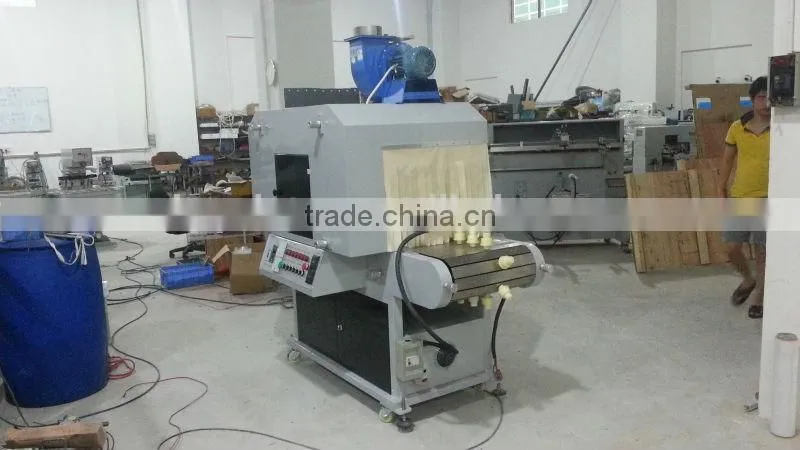

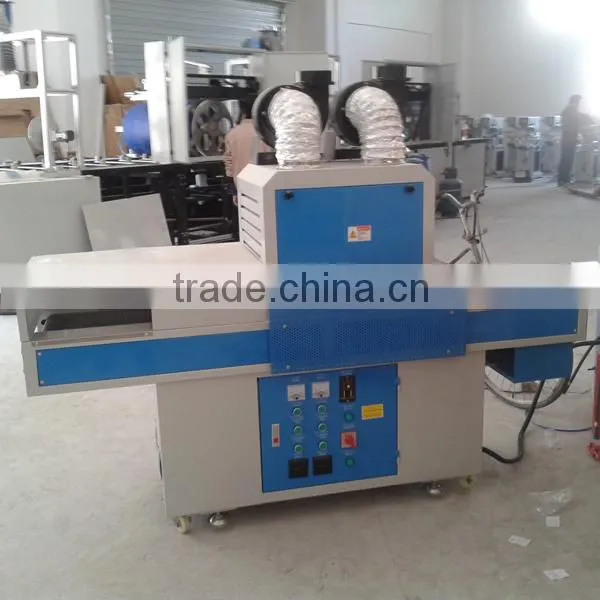

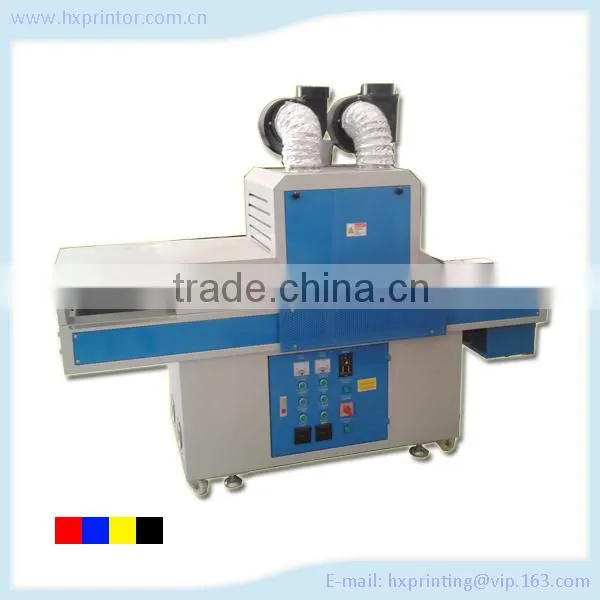

UV drying equipment with conveyor belt for screen printing
Technique data:
1) Max. height of workpiece: 100mm
2) Conveyor width: 400mm
3) Conveyor inner size: 400*1200mm ( W*L )
4) Output: 1800~3000 pcs/hr
5) Conveyor transfer speed: 0~20 M/min
6) UV lamp power: 4 Kw
7) UV lamp brand: Primarc & Phlips optional
8) General power: 5 Kw
9) Power supply: AC 220V/60Hz, 3-Phase
10) Machine dimension: 2100*750*1810mm ( L*W*H )
11) Machine weight: 360 Kg
Applicable range
Used for drying screen printing ink of UV ultraviolet (UV) light curing. UV curing machine can be used in UV light oil, grinding, wrinkles, snowflake, foaming, crystal convex oil, marble, refractive index, various UV color, etc.
Main performance
- 2 sets of UV light source system configuration, according to the number of open lamp production needs.
- Import Teflon conveyor belt, Seiko produced, smooth operation noise
- The belt speed motor and speed stainless speed conveyor speed visual production situation
- Convergent design, high light-gathering reflective chimney, instant drying speed, when the express.
- UV light height of chimney can be adjusted
- UV lamp working current can be shown by the master, UV analogue display system working condition
- Equipped with exquisite cooling system, prevent the working chamber at high temperature, the effective protection of production work environment.
Configuration:
1. UV light, high gather reflective chimney
2. Teflon or stainless steel mesh belt
3. Stepless motor import from Taiwan
4. Manda brand cooling fan with high quality
