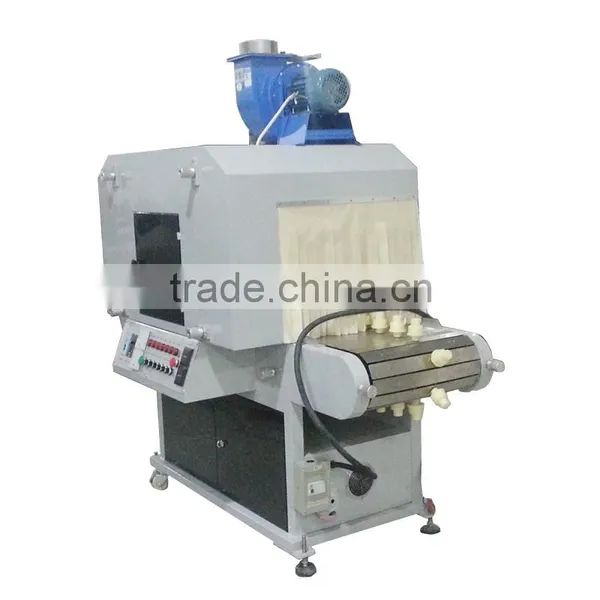

China manuafacturer uv curing machine with 3kw lamp ( HC-600 )
Model |
HC-UV600G |
Lamps Power |
3000W x 2PCS |
Visible |
180 – 240 (n/m) |
UVA (instensity) |
365(n/m) [ w/cm2] |
UBV |
adjustable |
The system output |
440W/cm2 |
Voltage / Frequency |
220V / 50Hz; 380V / 50Hz |
Curing width |
200 (n/m) |
Curing energy |
600-800 mJ |
Transmission belt width |
600mm |
Total length |
2 meter |
Applicable range
This UV glue curing machine is used for drying screen glue of UV ultraviolet (UV) light curing. It can be used in UV light oil, grinding, wrinkles, snowflake, foaming, crystal convex oil, marble, refractive index, various UV color, etc.
Main performance
1. 2 sets of UV light source system configuration, according to the number of open lamp production needs.
2. Import Teflon conveyor belt, Seiko produced, smooth operation noise
3. The belt speed motor and speed stainless speed conveyor speed visual production situation
4. Convergent design, high light-gathering reflective chimney, instant drying speed, when the express.
5. UV light height of chimney can be adjusted
6. UV lamp working current can be shown by the master, UV analogue display system working condition
7. Equipped with exquisite cooling system, prevent the working chamber at high temperature, the effective protection of production work environment.
Configuration:
1. UV light, high gather reflective chimney
2. Teflon or stainless steel mesh belt
3. Stepless motor import from Taiwan
4. Manda brand cooling fan with high quality
Wooden case with dust-proof film, sea worthy
Warranty for 1 year post sales, lifetime assist maintenance
1. Payment terms: T/T or WU 100% in advance, before delivery
2. Adopt top-class UV lamp, long-lasting
3. Equipped with English panel & manual, easy to operate
4. OEM is available
