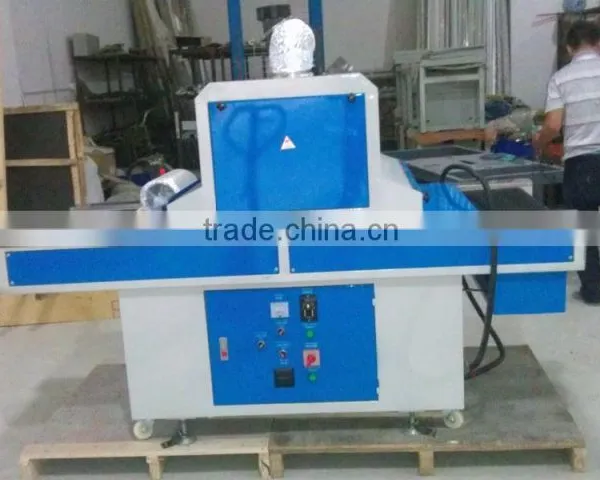

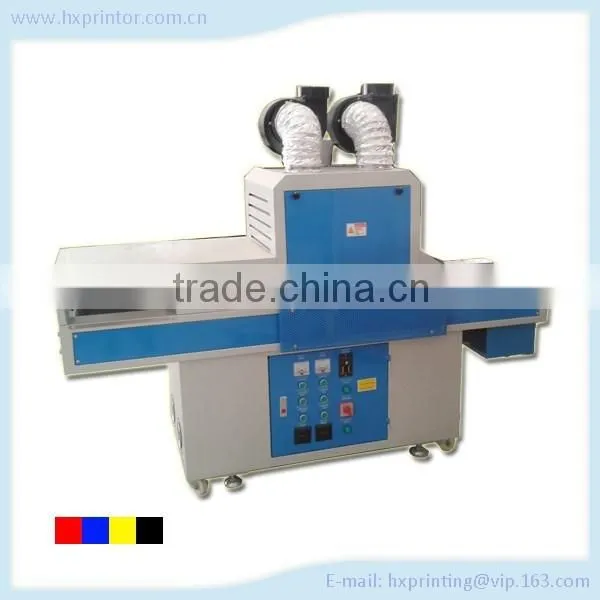

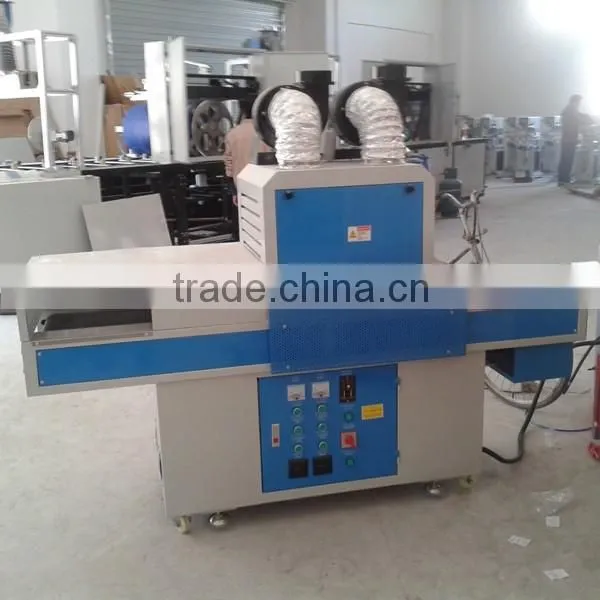

Help Centeruv Curing Conveyor System for PP &PE Products
Related Products
-
Hardware Part UV Curing Machine in StockUS$ 13,000 - 15,500MOQ: 1 Set -
Dongguan Factory Provided Portable UV Curing MachineUS$ 1,780 - 2,750MOQ: 1 Set
-
Conveyor UV Ink Drying EquipmentUS$ 2,769 - 3,967MOQ: 1 Set
-
Small Hardware Part UV Curing Conveyor Machine in StockUS$ 13,000 - 15,500MOQ: 1 Set
-
Factory Directly Provided Small Hardware Part UV Curing Conveyor Machine in StockUS$ 13,000 - 15,500MOQ: 1 Set
1) , Max. height of workpiece: 100mm
2), Conveyor width: 400mm
3), Conveyor inner size: 400*1200mm ( W*L )
4), Output: 1800~3000 pcs/hr
5), Conveyor transfer speed: 0~20 M/min
6), UV lamp power: 4 Kw
7), UV lamp brand: Primarc & Phlips optional
8), General power: 5 Kw
9), Power supply: AC 220V/60Hz, 3-Phase
10), Machine dimension: 2100*750*1810mm ( L*W*H )
11), Machine weight: 360 Kg
Applicable range
Used for drying screen printing ink of UV ultraviolet (UV) light curing. UV curing machine can be used in UV light oil, grinding, wrinkles, snowflake, foaming, crystal convex oil, marble, refractive index, various UV color, etc.
Main performance
- 2 sets of UV light source system configuration, according to the number of open lamp production needs.
- Import Teflon conveyor belt, Seiko produced, smooth operation noise
- The belt speed motor and speed stainless speed conveyor speed visual production situation
- Convergent design, high light-gathering reflective chimney, instant drying speed, when the express.
- UV light height of chimney can be adjusted
- UV lamp working current can be shown by the master, UV analogue display system working condition
- Equipped with exquisite cooling system, prevent the working chamber at high temperature, the effective protection of production work environment.
Lifetime assist maintenance, full printing package kit support:

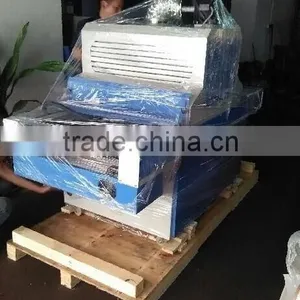

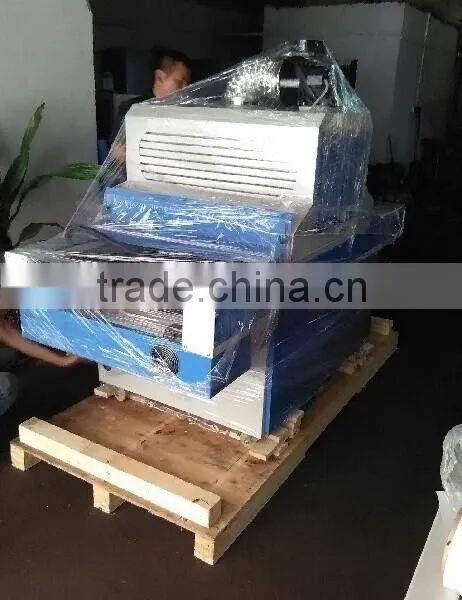

Carton packing with foam
Dongguan Hengxin Printing Equipment Co., Ltd. is a printing equipment company specialized in developing, manufacturing and selling printing equipment. We have earned a high reputation among clients for the quality of our products. We are the leading player in the printing equipment industry in domestic market. The "Hengxin" brand pad printers we developed have been awarded honorary titles for several times due to high quality and excellent performance.
Our company takes pride in having a group of professional technical staff members. With our years of continuous efforts in innovation, we have developed a series of the best-selling printing equipment. In the meantime, we are also working as the sales agent of many well-known brand companies. Our technical expertise, coupled with our years of experience in serving clients in the overseas markets, enables us to provide high quality products and services for our customers from all over the world.
Our business philosophy is "integrity, honesty, sincerity and accountability".
