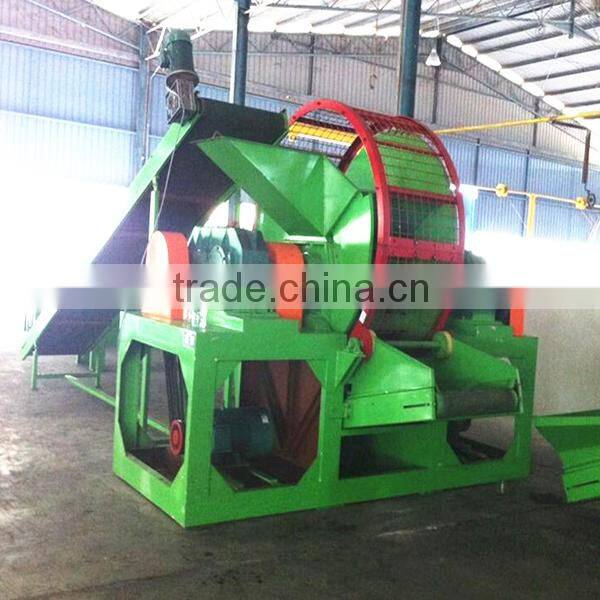

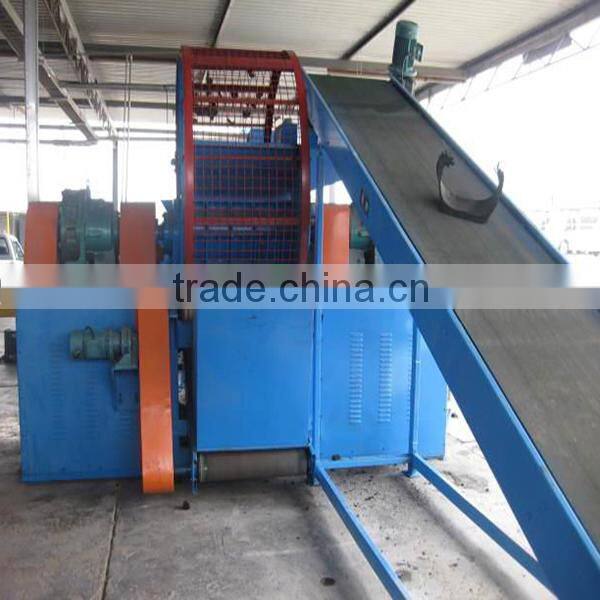

waste tire shredder for rubber block 50*50MM
Use

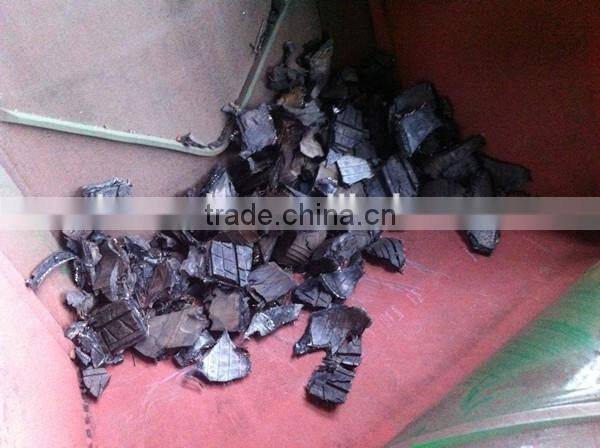

To cut the whole tire (bead wire removed) into 50*50mm rubber block
Principle

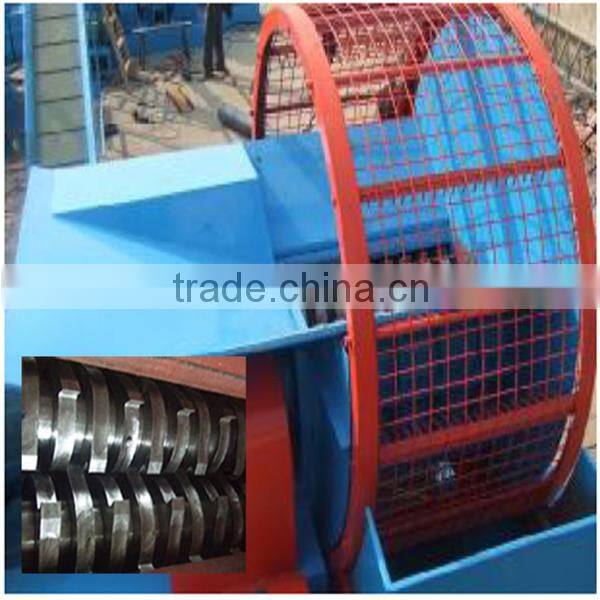

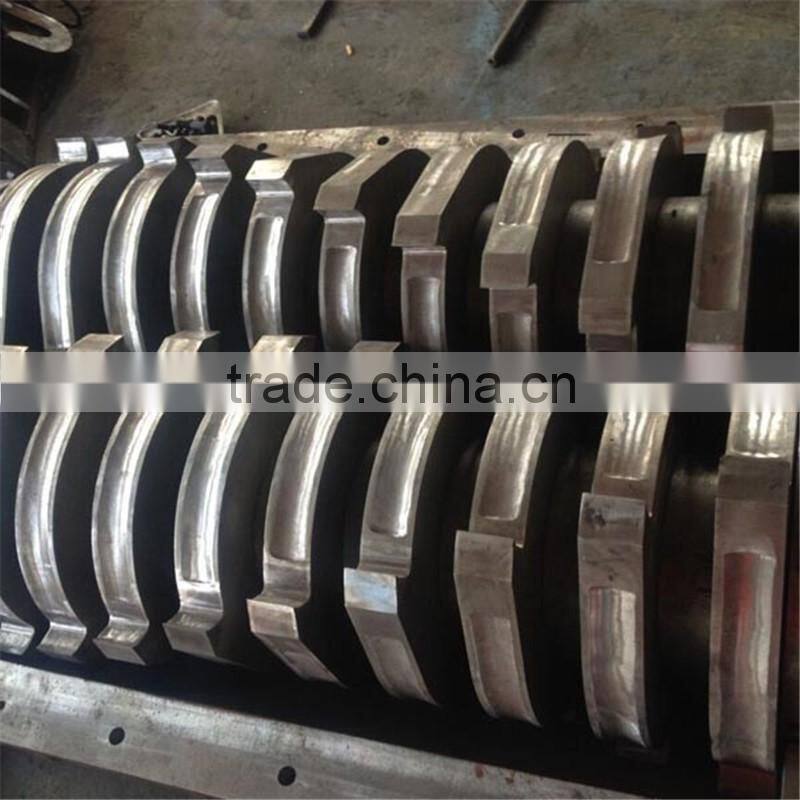

1. Whole tire goes into the hopper and is cut to tire blocks by the blades
2. Standard-size tire block goes through the round wire mesh and enters the next equipment
3. Non-standard tire block goes back to hopper and is cut again until it reaches standard size
Technical Parameter
| Model | ZPS-900 | ZPS-1200 |
| Tire diameter | <900mm | <1200mm |
| Discharge size | 50-300mm | 50-300mm |
| Capacity | 0.8-1.5t/h | 2-3.8t/h |
| Motor power | 22kw*2 | 55kw*2 |
| Screen power | 1.5kw | 5.5kw |
| Shaft speed | 19rpm | 22rpm |
| Blade | 16pcs, alloy | 20pcs, alloy |
| Gearbox | harden gears, large torque | harden gears, large torque |
| Dimension L*W*H | 3450*2100*2400mm | 4100*2730*3300mm |
| Weight | 5.8T | 15.6T |
Rubber powder application:
1.Paving sport ground:
Runway, school sporting field, garden path, bowling alley, pavement, recreation field, basketball field, etc.
2.Automobile industry:
Train’s floor, disc silk ribbon for braking, soleplate of automobile and truck, shake sleeve, seal stripe, buffer, shock absorber, daily material for ocean shiping, tyres and inner unerlay of tyres, etc.
3.Architecture and equipment:
Adhensive/sealant, floors of hospital, company, insulated rubber material, carpet cushion, grass cushion for family animal, extruded products, module products, coating, bricks, thin slice, water-proof material, etc.
4.Application of geotechnical/asphalt
Drainage pipe, asphalt modified by rubber powder which can be used to construct highway and drivingway, filter, adjusting soil/coating layer for road surface, washing pipe with holes, runway for horse race, barrier for traffic or pavement, etc.
5.Regenerative rubber:
Rubber products manufacturing.
6.Other application
rebirth tires .It is used in sport runway and shoe soles; it also can be used to highway, air trip as well as third generation railway sleeper as modification asphalt.
Proven Design and Technology.
A quality system with at an affordable price!
Fully Automated via 1 centrally located touch screen control panel.
Backed with one of the best Warrantees in the industry
Plz enquiry us freely,if you got any questions.
Welcome you to visit our factory!

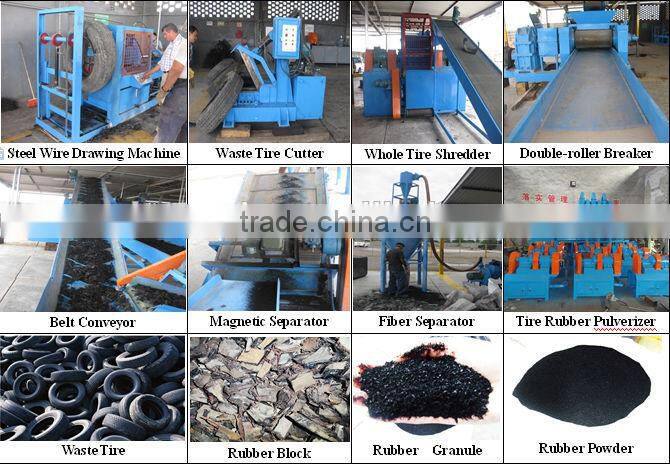

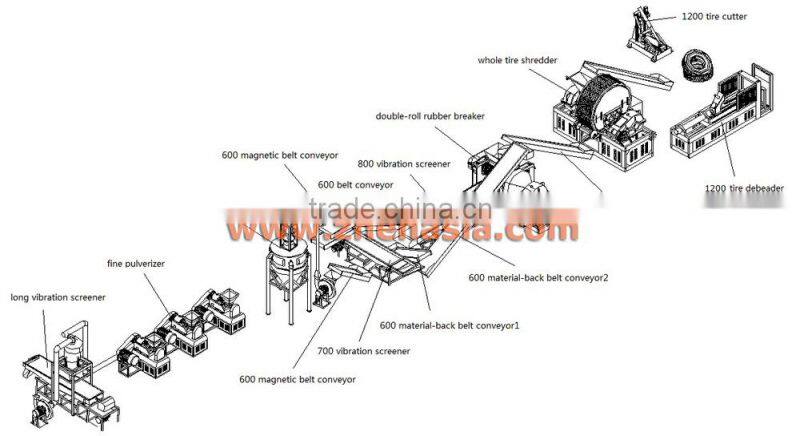

Working Flow of Automatic Waste Tire Recycling Machine

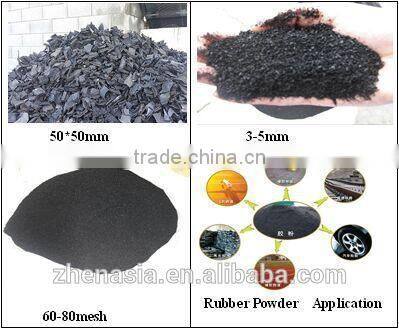

Applications of Rubber Granule and Powder
1. Guarantee: 13 months from shipping date
2. 24 hours technical suppor by email.
3. alling or door-to-door service.
4. use-friendly English software, operation manual and detailed video or CD.
