Specifications

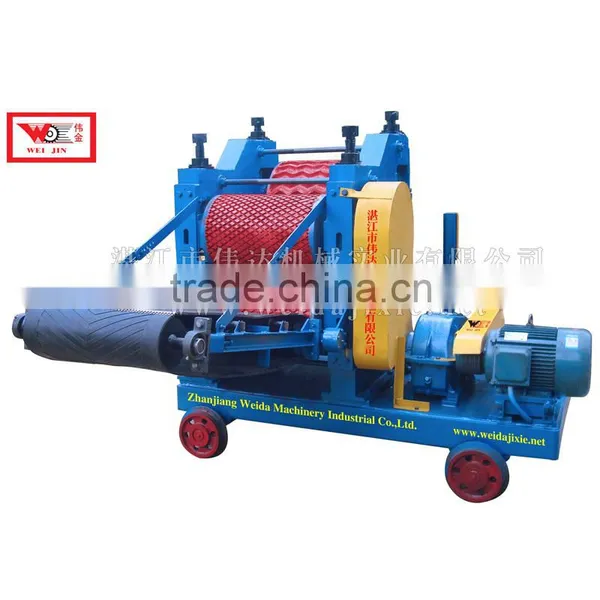

Rubber Crusher Machine can press and dehydrate from the solidified latex&rubber blocks and at the same time make it thinner.WEIJIN Rubber Thinning Machine
Main technical data:
| ITEMS | MODELS | |||||
| YB 250X600 | YB 450X650 | 2YB 520X500 | ||||
| First couple of rollers | Diameter mm | 250 | 450 | 500 | 520 | |
| Length mm | 600 | 630 | 650 | 500 | ||
| Second couple of rollers | Diameter mm | 390-400 | ||||
| Length mm | 540-630 | |||||
| Power(kw) | 7.5 | 7.5 | 11+1.5 | |||
| Production capacity of robber t/h | 1.5 | 1.8 | 2.5 | |||
Work principle:
The motor drive the patterned rollers through belt-gearbox-gears. The two-couple of rollers rotate oppositely to each other,and the fed solidified latex&rubber will be pressed and dehydrated, then the processed rubber sheets will be output through the belt at the bottom of the rollers.Pls note that the machine can be moved easily through the moving device at the bottom.
Function:
This machine was mainly made up of five parts: Driving device(motor, triangle belt, gearbox & starting gears); Roller assembly; Output conveyor; Racks; Moving device.
The double-couple rollers rubber thinning machine is used for standard natural rubber production. It can press and dehydrate from the solidified latex&rubber blocks and at the same time make it thinner.
Packaging:
Factory show:
ZHANJIANG WEIDA MACHINERY INDUSTRIAL CO.,LTD. is a professional tropical agricultural machinery manufacture. We specialize in the manufacture of natural rubber processing equipment, drying equipment, rope and fiber processing equipment, fruit processing equipment, series of fans , series of reducer, etc. With over 20 years experience in tropical agricultural machinery manufacturing and by our professional technicians, we have achieved great success in many invention and innovation in the area. Meanwhile, we always improve and upgrade our products and have obtained many patents.
