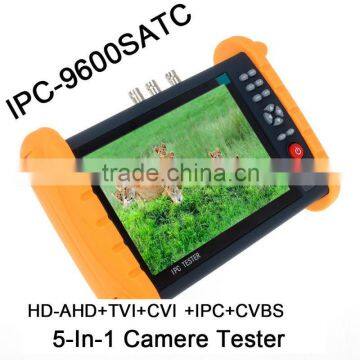

IPC-9600SATC Tvi Camera Wiki Ideal Cctv

ONVIF /support more than 30 IP cameras image test (Hikvision, Dahua, Honeywell, Samsung etc) /Mobile ClientVideo /

12V 2Aout put power/ 5V 2A power bank /

PoE power supply/

HDMI output /



WIFI IP camera tester is great CCTV tools for IP cameranstallation and maintenance,both for Analog and IP camera test, built in video level meter, Analog anddigital video signal output,
IP address scan, Ping test, Port flashing, cabletest, Digital Multi-meter, optical power meter and TDR cable tester etc ,
easyto operate Improved IP camera tester,After charging 7~8 hours,normal working time 16 hours, built in WIFI,test Wireless IP Camera;
12V 2A power output for camera ,48V PoE power supply,
Directly provide PoE power to IP Camera 5V 2A poweroutput(as a power bank 13000mAh),
HDMI output;Audio input and output,
Network bandwidth testing, image 180 degree rotating,
the power and networkports on the top of the tester, easy to connect the cable.
-CCTV system installation andmaintenance
-Network cabling project installationand maintenance-Dome camera IP cameratesting

1.       7 inch touch screen ,1280*800p resolution.NEW
2.       Capacitive touch screen,OSD menu,
3.       Touch screen and key operation
4.       Built-in WIFI, wireless networkcamera test NEW
5.       Support 1080P HD camera
6.       Support ONVIF camera,and Support DAHUA,Haikang,KEDA,Samsung,HIKVISION and TIANDY camera.ect
7.       Supportrunning the mobile phone or tabletmobile client software of the IP camera manufacturers.
8.       Image can rotate 180 degrees
9.       Display real resolution of the IP camera images
10.    Video screenshot,video recording ,files named and save, easy to find
11.    Support 1080P HD videofiles and MKV/MP4 media files play
12.    CVBS test,Photograph, Video record, Record playback
13.    Digital video color baroutput, analog video color bar and testing image output
14.    POE voltage measurement, PING test ,IP address scan, port flashing etc
15.    PoE DC48V power output,Maxpower 24W;
16.    12V /2A power output
17.    5V 2A power output,as the power bank
18.    HDMI output,1920*1080P Resolution;
19.    Audio in /out
20.    LED lamp, calculators,music players and other application tools
21.    Lithium Ion Polymer Battery,working time lasts 7-10 hours
Display:             7 inch Capacitive touch screen , resolution 1280(RGB)x 800p
Network port :     10/100M auto adjust,RJ45
WIFI :               Built in WIFI,speeds150M,receive wireless camera image etc
IP camera type :     ONVIF,ACTi,Dahua IPC-HFW2100P,Hikvision,DS-2CD864-E13,
                     Samsung SNZ-5200,Tiandy TD-NC9200S2,Kodak IPC120L,Honeywell HICC-2300T,
                     Aipuwaton IP5000-BC-13MP/IRS06-13MP,fine-Tida IPC,FSJ BY-1080Q,WEISKY IPC camera etc.
Video test :   1 channel BNC Input & 1 channel Output , NTSC/PAL (Auto adapt)
Zoom Image :         Support Analog camera and IP camera image zoom /move Snapshots,Video record,Record playback
                     Image Screenshots, record ,save ,view and record play back
HDMI output :        1 channel HDMI output,support 1920*1080P
12V/2Apower output : Output DC12V/2A power for camera
5V power output:     5V 2A power output,as a mobile phone Power bank
PoE power output  :  48V PoE power output,Max power 24W
Audio test :         1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Video Signal Generator :Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )
UTP Cable tester :   Test UTP cable connection status and display in the screen. Read the number on the screen
Data monitor  :    Captures and analyzes the command data from controlling device,also can send hexadecimal
Network test :     IP address scan, link scan, Ping test, Quickly search the connection IP camera and other device IP address
Cable scan   :     Search the cable by the audio signal
PoE test  :        Measurement POE switch or PSE power supply voltage and cable connection status
POWER External power supply  :  DC 12V 2A
Battery  :  Built-in 7.4V Lithium polymer battery ,5000mAh Rechargeable ,normal working time 7-10 hours
Operation setting :   Capacitive touch screen, OSD menu,Chinese/English
Auto off :   1-30 (mins)
Working Temperature:    -10°C---+50 °C
Working Humidity :  30%-90%
Dimension/Weight  :  240mm x 145mm x 50mm / 1.3Kg
